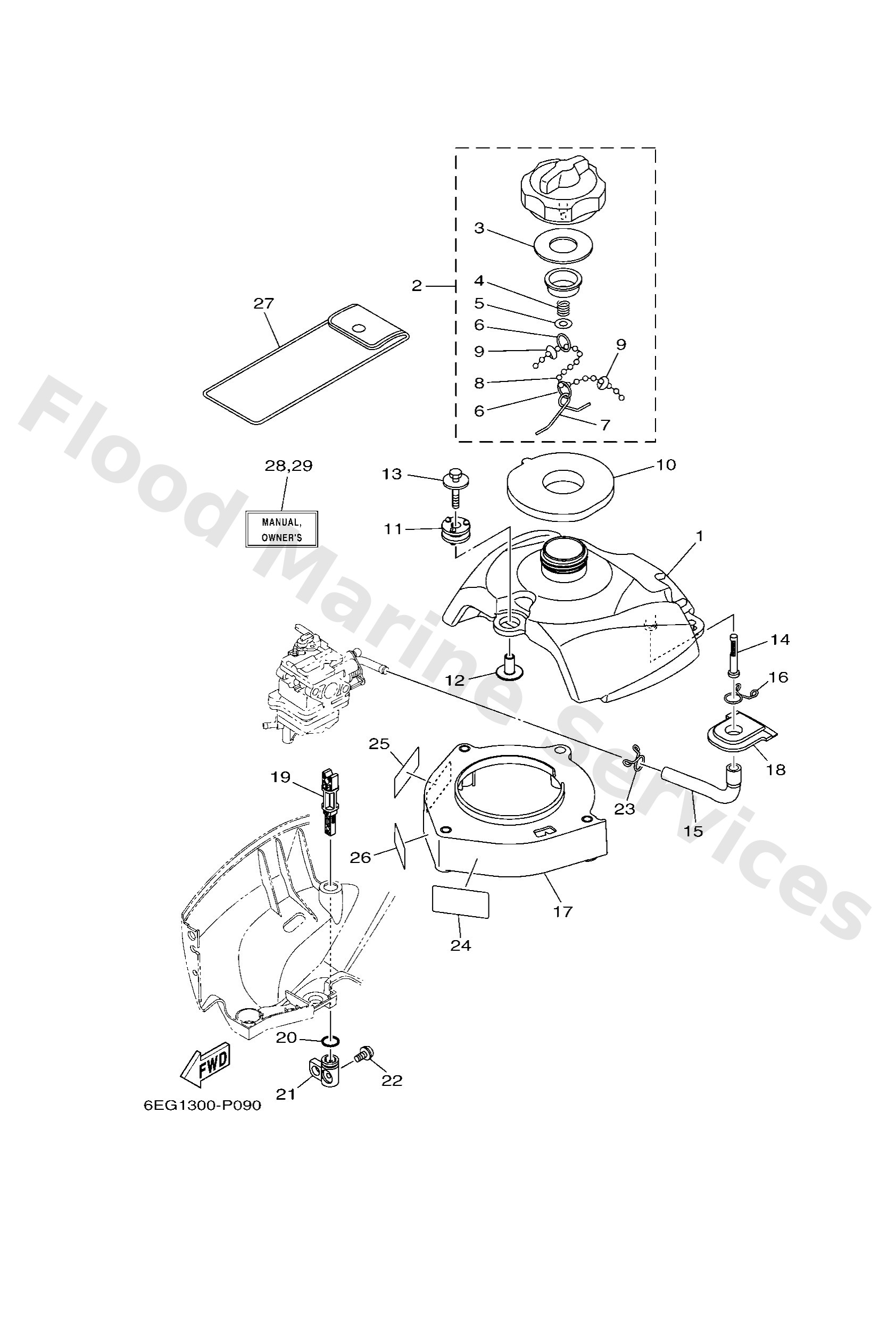

Diagram: FUEL
Parts List
Tank, fuel
Diagram Reference: 1
Cap assembly
Diagram Reference: 2
Packing, cap
Diagram Reference: 3
Spring, compression
Diagram Reference: 4
Ybs66-4 washer, plain
Diagram Reference: 5
Clip
Diagram Reference: 6
Hook, chain ball
Diagram Reference: 7
Chain, ball
Diagram Reference: 8
Washer, special 1
Diagram Reference: 9
Gasket, cap 1
Diagram Reference: 10
Grommet
Diagram Reference: 11
Collar
Diagram Reference: 12
Bolt, with washer
Diagram Reference: 13
Strainer 1
Diagram Reference: 14
Pipe, fuel 1
Diagram Reference: 15
Clip(6m6)
Diagram Reference: 16
Bracket, fuel tank
Diagram Reference: 17
Damper, locating 1
Diagram Reference: 18
Shaft, cock
Diagram Reference: 19
O-ring
Diagram Reference: 20
Lever, fuel change
Diagram Reference: 21
Screw, with washer(6t4)
Diagram Reference: 22
Clip(72x)
Diagram Reference: 23
Mark, caution
Diagram Reference: 24
Label, safety
Diagram Reference: 25
Label, safety
Diagram Reference: 26
Tool kit
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 29
Manual,Owner's
Diagram Reference: 29
Manual,Owner's
Diagram Reference: 29
Manual,Owner's
Diagram Reference: 29
Manual,Owner's
Diagram Reference: 29
Manual,Owner's
Diagram Reference: 29
