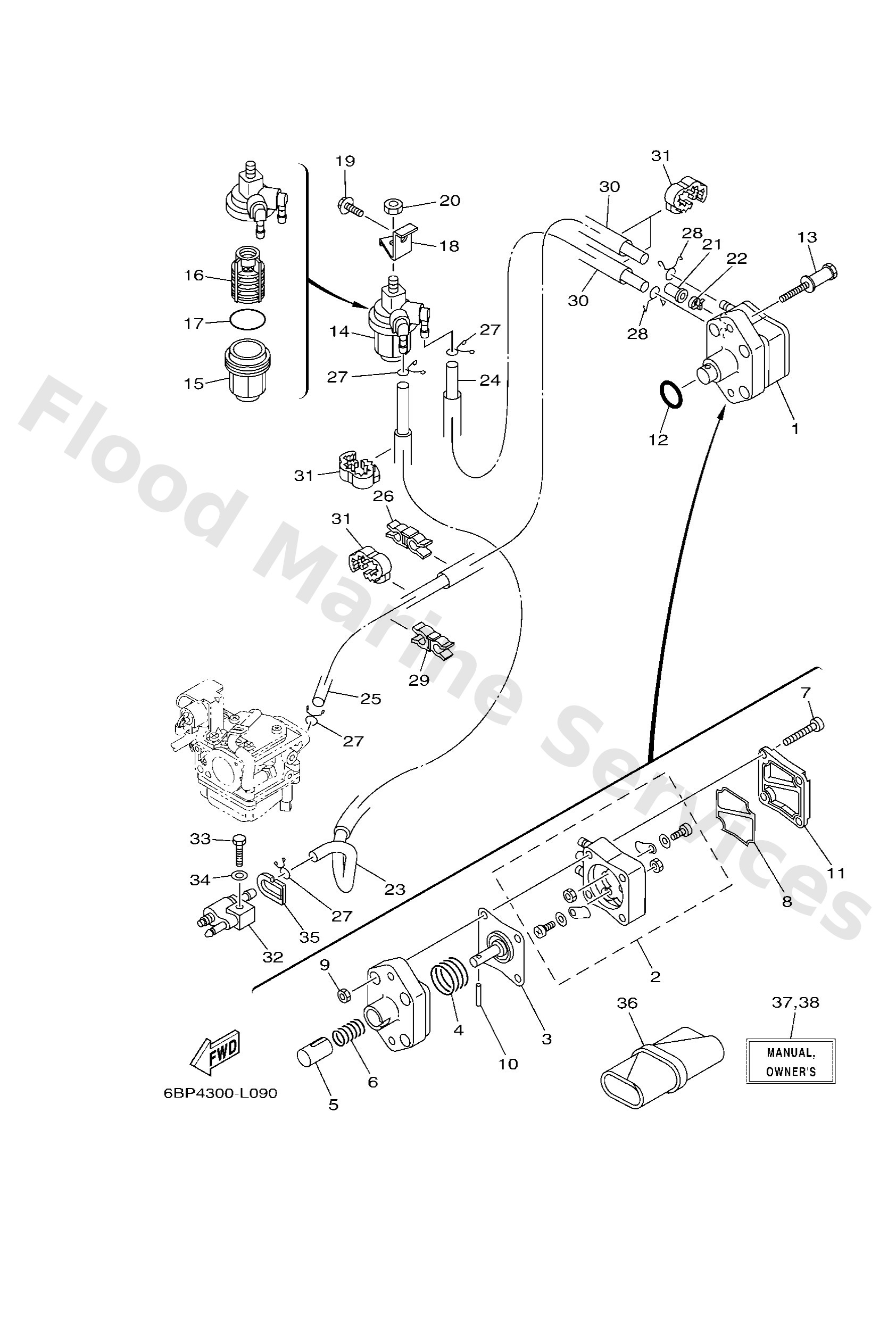

Diagram: FUEL
Parts List
Fuel pump assembly
Diagram Reference: 1
Body 4
Diagram Reference: 2
Diaphragm
Diagram Reference: 3
Spring, diaphragm
Diagram Reference: 4
Plunger
Diagram Reference: 5
Spring
Diagram Reference: 6
Screw
Diagram Reference: 7
Diaphragm
Diagram Reference: 8
Nut, hexagon (663)
Diagram Reference: 9
Pin
Diagram Reference: 10
Body 3
Diagram Reference: 11
O-ring
Diagram Reference: 12
Bolt
Diagram Reference: 13
Filter assembly
Diagram Reference: 14
Cup, filter
Diagram Reference: 15
Element, filter
Diagram Reference: 16
O-ring(1wg)
Diagram Reference: 17
Bracket, filter
Diagram Reference: 18
Bolt, flange deep recess
Diagram Reference: 19
Nut (661)
Diagram Reference: 20
Plug
Diagram Reference: 21
Clamp
Diagram Reference: 22
Pipe, fuel 1
Diagram Reference: 23
Hose (l400)
Diagram Reference: 24
Hose (l350)
Diagram Reference: 25
Clamp
Diagram Reference: 26
Clip(6k8)
Diagram Reference: 27
Clip, pipe 1 (6e9)
Diagram Reference: 28
Clamp
Diagram Reference: 29
Hose
Diagram Reference: 30
Clamp
Diagram Reference: 31
Fuel pipe joint comp. 1
Diagram Reference: 32
Bolt
Diagram Reference: 33
Washer, plain (646)
Diagram Reference: 34
Seal
Diagram Reference: 35
Tool kit
Diagram Reference: 36
Manual,owner's
Diagram Reference: 37
Manual,owner's
Diagram Reference: 37
Manual,owner's
Diagram Reference: 37
Manual,owner's
Diagram Reference: 37
Manual,owner's
Diagram Reference: 37
Manual,owner's
Diagram Reference: 37
Manual,owner's
Diagram Reference: 38
Manual,owner's
Diagram Reference: 38
Manual,owner's
Diagram Reference: 38
Manual,owner's
Diagram Reference: 38
Manual,owner's
Diagram Reference: 38
Manual,owner's
Diagram Reference: 38
