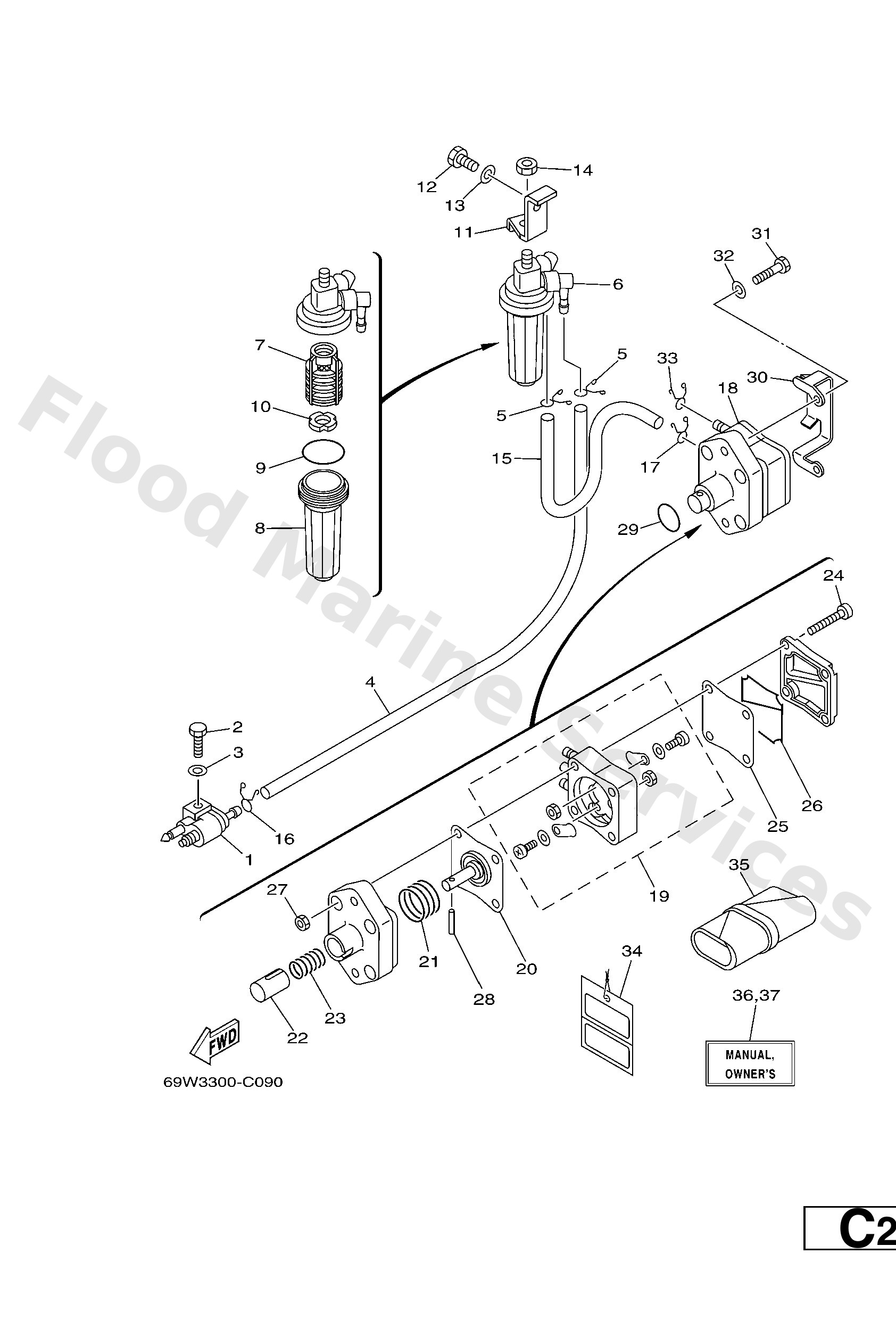

Diagram: FUEL

Diagram

Parts List

6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
9044510020
Hose (l590)
Diagram Reference: 4
Get Part
9046709M17
Clip(6k8)
Diagram Reference: 5
Get Part
64J2456000
Filter assembly
Diagram Reference: 6
Get Part
61N2456300
Element, filter
Diagram Reference: 7
Get Part
68V2452101
Cup, filter
Diagram Reference: 8
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 9
Get Part
68V2446901
Float, water level
Diagram Reference: 10
Get Part
62Y2456600
Bracket, filter
Diagram Reference: 11
Get Part
9709508014
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 13
Get Part
9538008600
Nut (661)
Diagram Reference: 14
Get Part
9044510M48
Hose (l400)
Diagram Reference: 15
Get Part
9046710M04
Clip, pipe 1 (6e9)
Diagram Reference: 17
Get Part
62Y2441003
Fuel pump assembly
Diagram Reference: 18
Get Part
62Y2441500
Body 4
Diagram Reference: 19
Get Part
62Y2441102
Diaphragm
Diagram Reference: 20
Get Part
62Y2442300
Spring, diaphragm
Diagram Reference: 21
Get Part
62Y1313101
Plunger
Diagram Reference: 22
Get Part
62Y2445400
Spring
Diagram Reference: 23
Get Part
62Y2444401
Screw
Diagram Reference: 24
Get Part
62Y2447100
Diaphragm
Diagram Reference: 25
Get Part
62Y2445200
Packing
Diagram Reference: 26
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 27
Get Part
62Y2437401
Pin
Diagram Reference: 28
Get Part
9321024M79
O-ring
Diagram Reference: 29
Get Part
65W2447400
Cover
Diagram Reference: 30
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 31
Get Part
61H2819R31
-
Diagram Reference: 34
Get Part
62Y2810000
Tool kit
Diagram Reference: 35
Get Part
69W2819970E0 (UR (E))
F40c/ft60b/f60a
Diagram Reference: 36
Get Part
69W2819970H0 (UR (I))
F40c/ft60b/f60a
Diagram Reference: 36
Get Part
69W2819970D0 (UR (NL))
F40c/ft60b/f60a
Diagram Reference: 36
Get Part
69W2819970G0 (UR (D))
F40c/ft60b/f60a
Diagram Reference: 36
Get Part
69W2819970S0 (UR (ES))
F40c/ft60b/f60a
Diagram Reference: 36
Get Part
69W2819970F0 (UR (F))
F40c/ft60b/f60a
Diagram Reference: 36
Get Part
69W2819980K0 (UR (DK))
F40c/ft60b/f60a
Diagram Reference: 37
Get Part
69W2819980R0 (UR (GR))
F40c/ft60b/f60a
Diagram Reference: 37
Get Part
69W2819980P0 (UR (P))
F40c/ft60b/f60a
Diagram Reference: 37
Get Part
69W2819980N0 (UR (N))
F40c/ft60b/f60a
Diagram Reference: 37
Get Part
69W2819980M0 (UR (S))
F40c/ft60b/f60a
Diagram Reference: 37
Get Part
69W2819980L0 (UR (SF))
F40c/ft60b/f60a
Diagram Reference: 37
Get Part
