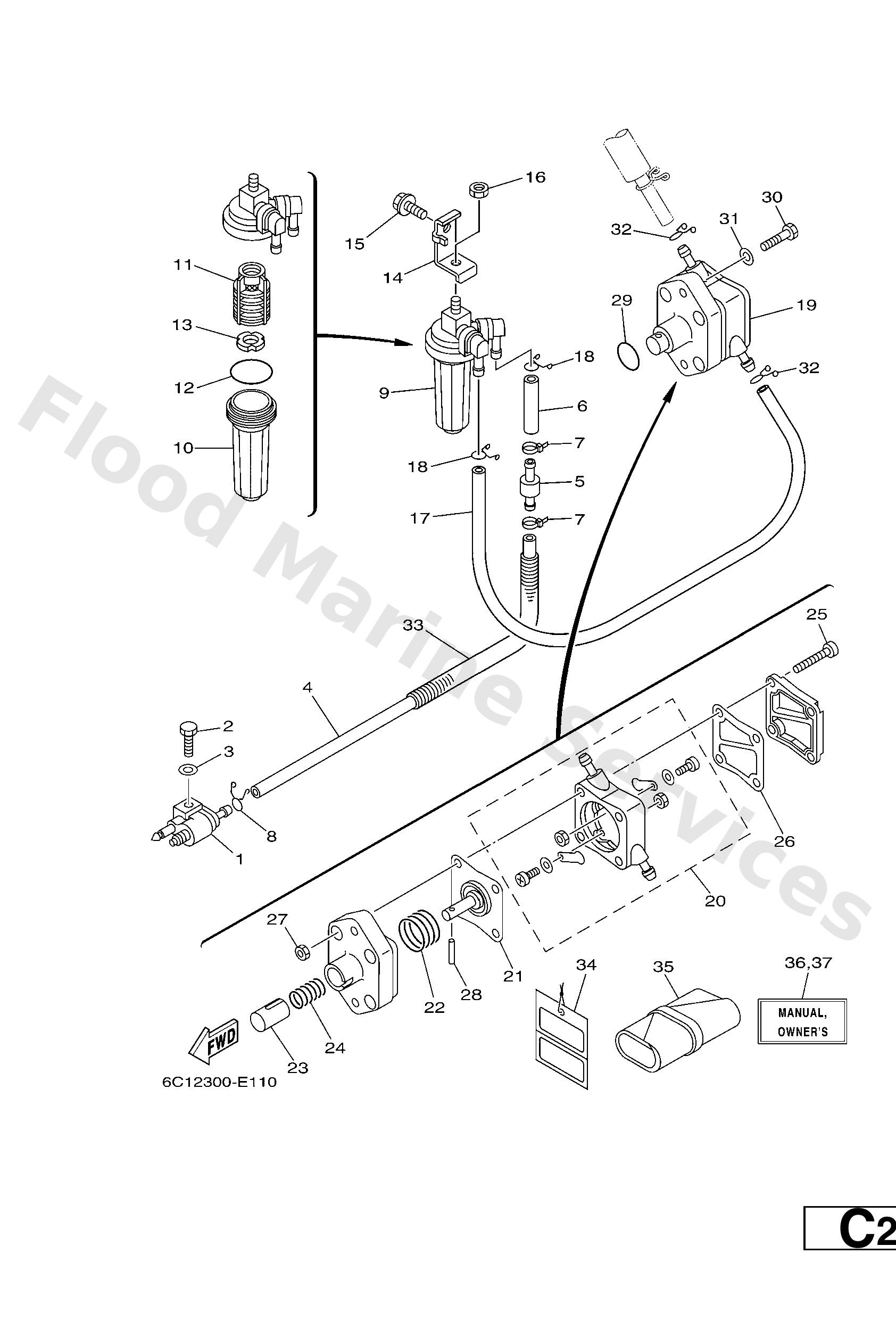

Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Hose 1
Diagram Reference: 4
Pipe, joint 3
Diagram Reference: 5
Hose (l90)
Diagram Reference: 6
Clamp
Diagram Reference: 7
Clip(6k8)
Diagram Reference: 8
Filter assembly
Diagram Reference: 9
Cup, filter
Diagram Reference: 10
Element, filter
Diagram Reference: 11
O-ring(1wg)
Diagram Reference: 12
Float, water level
Diagram Reference: 13
Bracket, Filter
Diagram Reference: 14
Bolt, flange deep recess
Diagram Reference: 15
Nut (661)
Diagram Reference: 16
Hose (l350)
Diagram Reference: 17
Clip, pipe 1 (6e9)
Diagram Reference: 18
Fuel pump assembly
Diagram Reference: 19
Body 4
Diagram Reference: 20
Diaphragm
Diagram Reference: 21
Spring, diaphragm
Diagram Reference: 22
Plunger
Diagram Reference: 23
Spring
Diagram Reference: 24
Screw
Diagram Reference: 25
Diaphragm
Diagram Reference: 26
Nut, hexagon (663)
Diagram Reference: 27
Pin
Diagram Reference: 28
O-ring
Diagram Reference: 29
Bolt(jf7)
Diagram Reference: 30
Hose(64t)
Diagram Reference: 33
Tool kit
Diagram Reference: 35
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 36
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 36
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 36
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 36
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 36
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 36
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 37
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 37
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 37
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 37
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 37
Om f50f/ft50g/f60c/ft60d/f40d
Diagram Reference: 37
