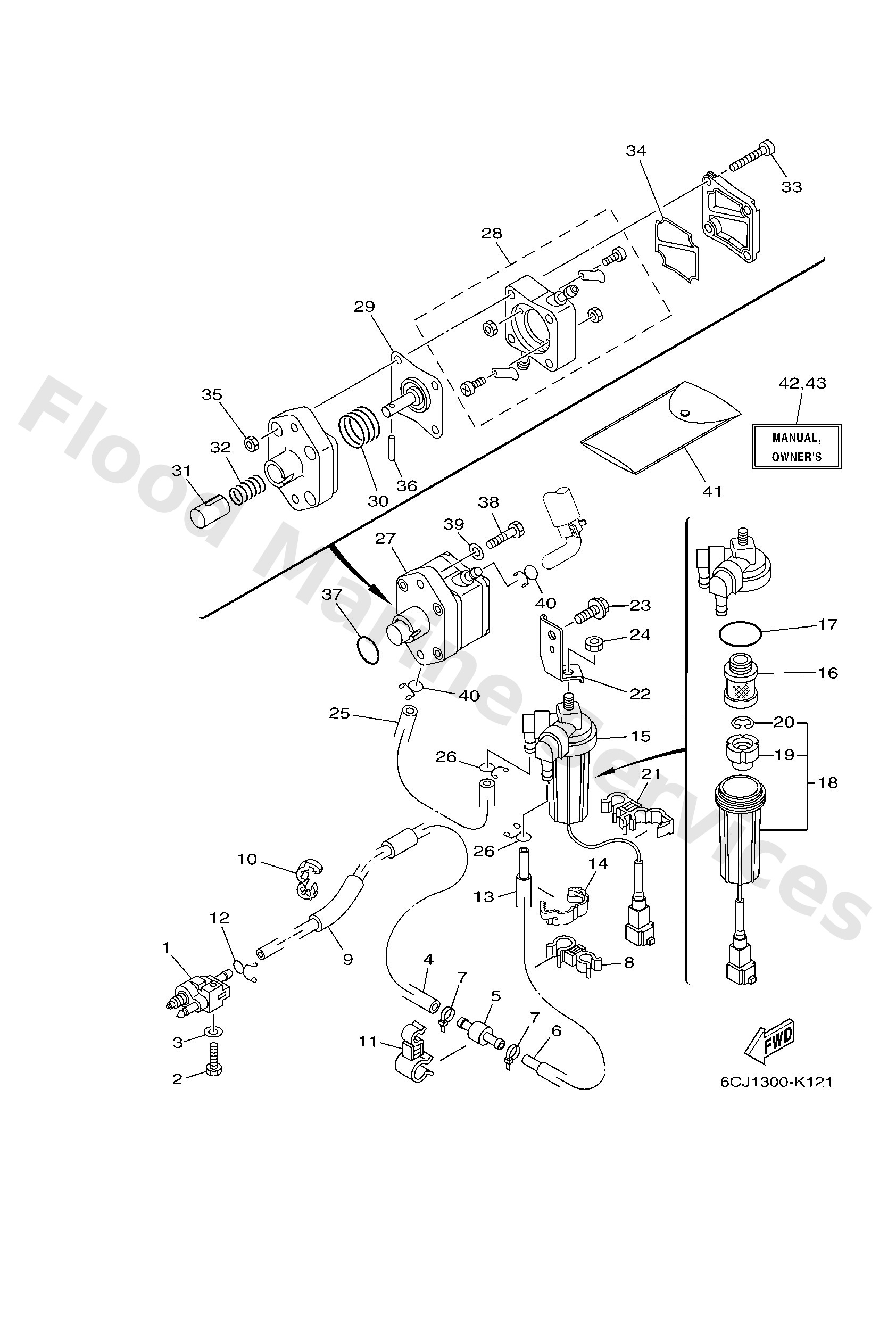

Diagram: FUEL

Diagram

Parts List

6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
6BG2431300
Pipe 3
Diagram Reference: 4
Get Part
67F2437700
Pipe, joint 3
Diagram Reference: 5
Get Part
90445133F0
Hose (l195)
Diagram Reference: 6
Get Part
9046511M10
Clamp
Diagram Reference: 7
Get Part
9046412004
Clamp
Diagram Reference: 8
Get Part
9044613M11
Hose(6n6)
Diagram Reference: 9
Get Part
9046413227
Clamp
Diagram Reference: 10
Get Part
9046416017
Clamp
Diagram Reference: 11
Get Part
9046709M17
Clip(6k8)
Diagram Reference: 12
Get Part
9044615006
Hose
Diagram Reference: 13
Get Part
9046414010
Clamp
Diagram Reference: 14
Get Part
6D82456000
Filter assembly
Diagram Reference: 15
Get Part
6D82456300
Element, filter (with tag)
Diagram Reference: 16
Get Part
6D82456400
Gasket
Diagram Reference: 17
Get Part
6D82456200
Cup, filter (with tag)
Diagram Reference: 18
Get Part
6D82446900
Float, water level
Diagram Reference: 19
Get Part
6D82451900
Clip
Diagram Reference: 20
Get Part
9046412012
Clamp
Diagram Reference: 21
Get Part
6CJ2456600
Bracket, filter
Diagram Reference: 22
Get Part
9589508016
Bolt, flange deep recess
Diagram Reference: 23
Get Part
9538008600
Nut (661)
Diagram Reference: 24
Get Part
6BG2431100
Pipe, fuel 1
Diagram Reference: 25
Get Part
9046711M08
Clip(72x)
Diagram Reference: 26
Get Part
6CJ2441000
Fuel pump assembly
Diagram Reference: 27
Get Part
6CJ2441500
Body 4
Diagram Reference: 28
Get Part
62Y2441102
Diaphragm
Diagram Reference: 29
Get Part
62Y2442300
Spring, diaphragm
Diagram Reference: 30
Get Part
6CJ1313100
Plunger
Diagram Reference: 31
Get Part
6CJ2445400
Spring
Diagram Reference: 32
Get Part
62Y2444401
Screw
Diagram Reference: 33
Get Part
6C52447100
Diaphragm
Diagram Reference: 34
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 35
Get Part
6CJ2437400
Pin
Diagram Reference: 36
Get Part
9321024M79
O-ring
Diagram Reference: 37
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 38
Get Part
9046710M04
Clip, pipe 1 (6e9)
Diagram Reference: 40
Get Part
6CJ2810000 (AP)
Tool kit
Diagram Reference: 41
Get Part
6C1281997BE0 (UR (E))
Manual,owner's
Diagram Reference: 42
Get Part
6C1281997BF0 (UR (F))
Manual,owner's
Diagram Reference: 42
Get Part
6C1281997BS0 (UR (ES))
Manual,owner's
Diagram Reference: 42
Get Part
6C1281997BG0 (UR (D))
Manual,owner's
Diagram Reference: 42
Get Part
6C1281997BD0 (UR (NL))
Manual,owner's
Diagram Reference: 42
Get Part
6C1281997BH0 (UR (I))
Manual,owner's
Diagram Reference: 42
Get Part
6C1281998BK0 (UR (DK))
Manual,owner's
Diagram Reference: 43
Get Part
6C1281998BR0 (UR (GR))
Manual,owner's
Diagram Reference: 43
Get Part
6C1281998BP0 (UR (P))
Manual,owner's
Diagram Reference: 43
Get Part
6C1281998BN0 (UR (N))
Manual,owner's
Diagram Reference: 43
Get Part
6C1281998BM0 (UR (S))
Manual,owner's
Diagram Reference: 43
Get Part
6C1281998BL0 (UR (SF))
Manual,owner's
Diagram Reference: 43
Get Part
