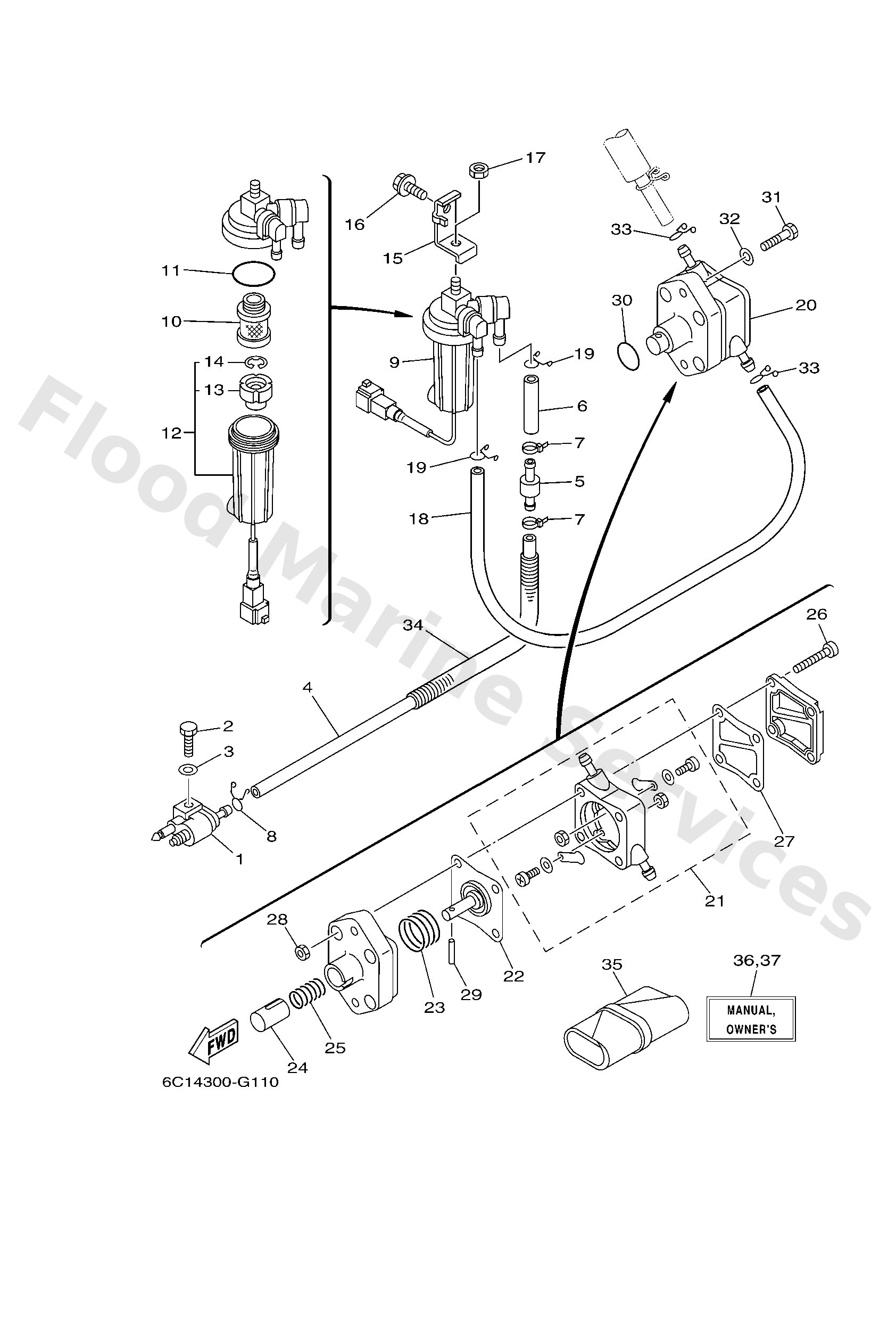

Diagram: FUEL

Diagram

Parts List

6G12430402
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506025
Bolt
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
6C52247A00
Hose 1
Diagram Reference: 4
Get Part
67F2437700
Pipe, joint 3
Diagram Reference: 5
Get Part
9044513M02
Hose (l90)
Diagram Reference: 6
Get Part
9046511M10
Clamp
Diagram Reference: 7
Get Part
9046709M17
Clip(6k8)
Diagram Reference: 8
Get Part
6D82456000
Filter assembly
Diagram Reference: 9
Get Part
6D82456300
Element, filter (with tag)
Diagram Reference: 10
Get Part
6D82456400
Gasket
Diagram Reference: 11
Get Part
6D82456200
Cup, filter (with tag)
Diagram Reference: 12
Get Part
6D82446900
Float, water level
Diagram Reference: 13
Get Part
6D82451900
Clip
Diagram Reference: 14
Get Part
6C52456601
Bracket, Filter
Diagram Reference: 15
Get Part
9589508016
Bolt, flange deep recess
Diagram Reference: 16
Get Part
9538008600
Nut (661)
Diagram Reference: 17
Get Part
9044513M36
Hose (l350)
Diagram Reference: 18
Get Part
9046710M04
Clip, pipe 1 (6e9)
Diagram Reference: 19
Get Part
6C52441000
Fuel pump assembly
Diagram Reference: 20
Get Part
6C52441500
Body 4
Diagram Reference: 21
Get Part
62Y2441102
Diaphragm
Diagram Reference: 22
Get Part
62Y2442300
Spring, diaphragm
Diagram Reference: 23
Get Part
62Y1313100
Plunger
Diagram Reference: 24
Get Part
62Y2445400
Spring
Diagram Reference: 25
Get Part
62Y2444401
Screw
Diagram Reference: 26
Get Part
6C52447100
Diaphragm
Diagram Reference: 27
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 28
Get Part
62Y2437401
Pin
Diagram Reference: 29
Get Part
9321024M79
O-ring
Diagram Reference: 30
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 31
Get Part
9044614M62
Hose(64t)
Diagram Reference: 34
Get Part
6C52810000
Tool kit
Diagram Reference: 35
Get Part
6C12819976E0 (UR (E))
Manual,owner's
Diagram Reference: 36
Get Part
6C12819976H0 (UR (I))
Manual,owner's
Diagram Reference: 36
Get Part
6C12819976D0 (UR (NL))
Manual,owner's
Diagram Reference: 36
Get Part
6C12819976G0 (UR (D))
Manual,owner's
Diagram Reference: 36
Get Part
6C12819976S0 (UR (ES))
Manual,owner's
Diagram Reference: 36
Get Part
6C12819976F0 (UR (F))
O/m f40d/f50f//f60c'10
Diagram Reference: 36
Get Part
6C12819986K0 (UR (DK))
O/m f40d/f40g/f50'12
Diagram Reference: 37
Get Part
6C12819986R0 (UR (GR))
O/m f40d/f40g/f50'12
Diagram Reference: 37
Get Part
6C12819986P0 (UR (P))
O/m f40d/f40g/f50'12
Diagram Reference: 37
Get Part
6C12819986N0 (UR (N))
O/m f40d/f40g/f50'12
Diagram Reference: 37
Get Part
6C12819986M0 (UR (S))
O/m f40d/f40g/f50'12
Diagram Reference: 37
Get Part
6C12819986L0 (UR (SF))
Manual,owner's
Diagram Reference: 37
Get Part
