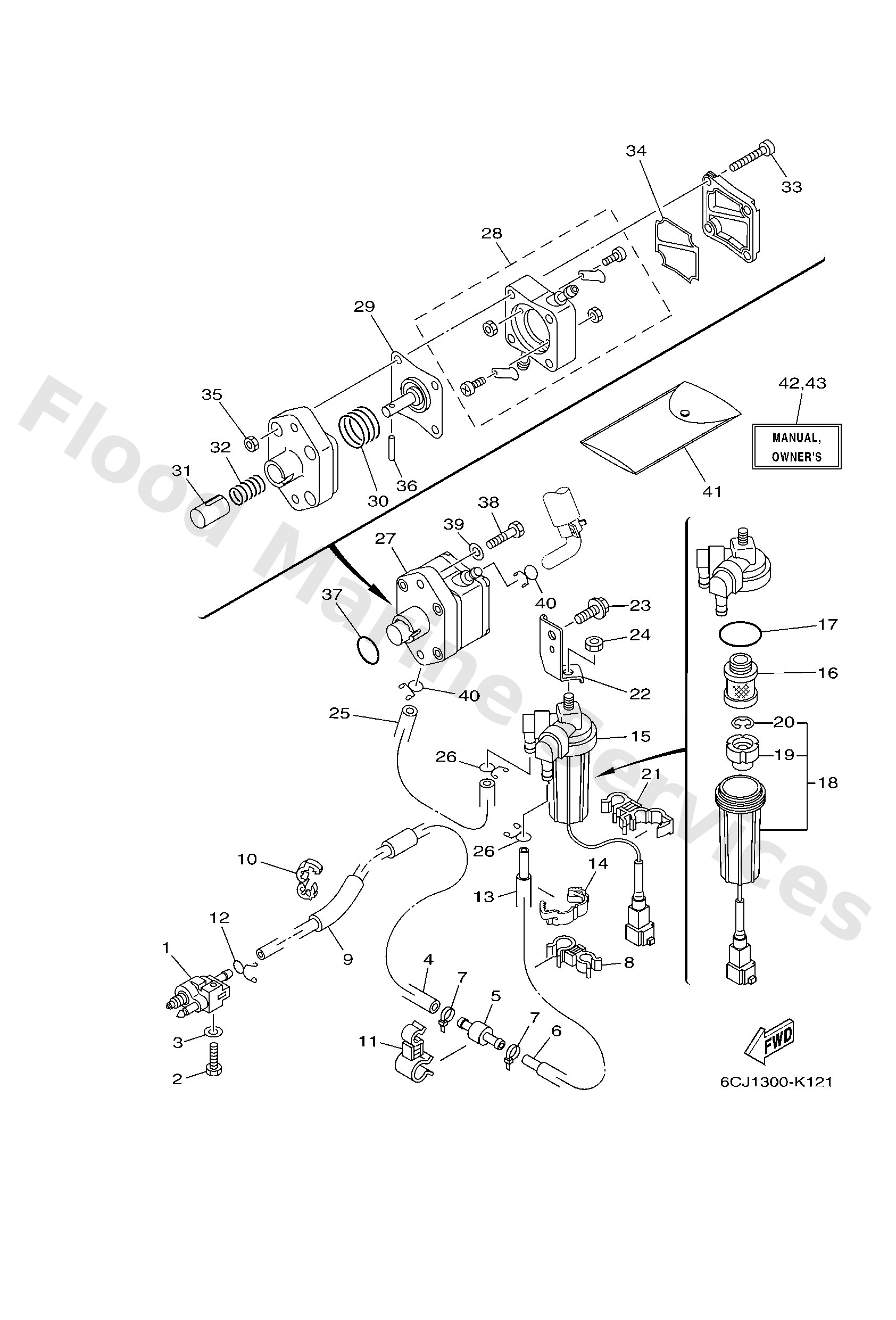

Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Pipe 3
Diagram Reference: 4
Pipe, joint 3
Diagram Reference: 5
Hose (l195)
Diagram Reference: 6
Clamp
Diagram Reference: 7
Clamp
Diagram Reference: 8
Hose(6n6)
Diagram Reference: 9
Clamp
Diagram Reference: 10
Clamp
Diagram Reference: 11
Clip(6k8)
Diagram Reference: 12
Hose
Diagram Reference: 13
Clamp
Diagram Reference: 14
Filter assembly
Diagram Reference: 15
Element, filter (with tag)
Diagram Reference: 16
Gasket
Diagram Reference: 17
Cup, filter (with tag)
Diagram Reference: 18
Float, water level
Diagram Reference: 19
Clip
Diagram Reference: 20
Clamp
Diagram Reference: 21
Bracket, filter
Diagram Reference: 22
Bolt, flange deep recess
Diagram Reference: 23
Nut (661)
Diagram Reference: 24
Pipe, fuel 1
Diagram Reference: 25
Clip(72x)
Diagram Reference: 26
Fuel pump assembly
Diagram Reference: 27
Body 4
Diagram Reference: 28
Diaphragm
Diagram Reference: 29
Spring, diaphragm
Diagram Reference: 30
Plunger
Diagram Reference: 31
Spring
Diagram Reference: 32
Screw
Diagram Reference: 33
Diaphragm
Diagram Reference: 34
Nut, hexagon (663)
Diagram Reference: 35
Pin
Diagram Reference: 36
O-ring
Diagram Reference: 37
Bolt(jf7)
Diagram Reference: 38
Clip, pipe 1 (6e9)
Diagram Reference: 40
Tool kit
Diagram Reference: 41
Manual,Owner's
Diagram Reference: 42
Manual,Owner's
Diagram Reference: 42
Manual,Owner's
Diagram Reference: 42
Manual,Owner's
Diagram Reference: 42
Manual,Owner's
Diagram Reference: 42
O/m f40etl/f50fetl/f60cetl'12
Diagram Reference: 42
Manual,Owner's
Diagram Reference: 43
Manual,Owner's
Diagram Reference: 43
Manual,Owner's
Diagram Reference: 43
O/m f60detx/f70aetl/f40getl'12
Diagram Reference: 43
Manual,Owner's
Diagram Reference: 43
Manual,Owner's
Diagram Reference: 43
