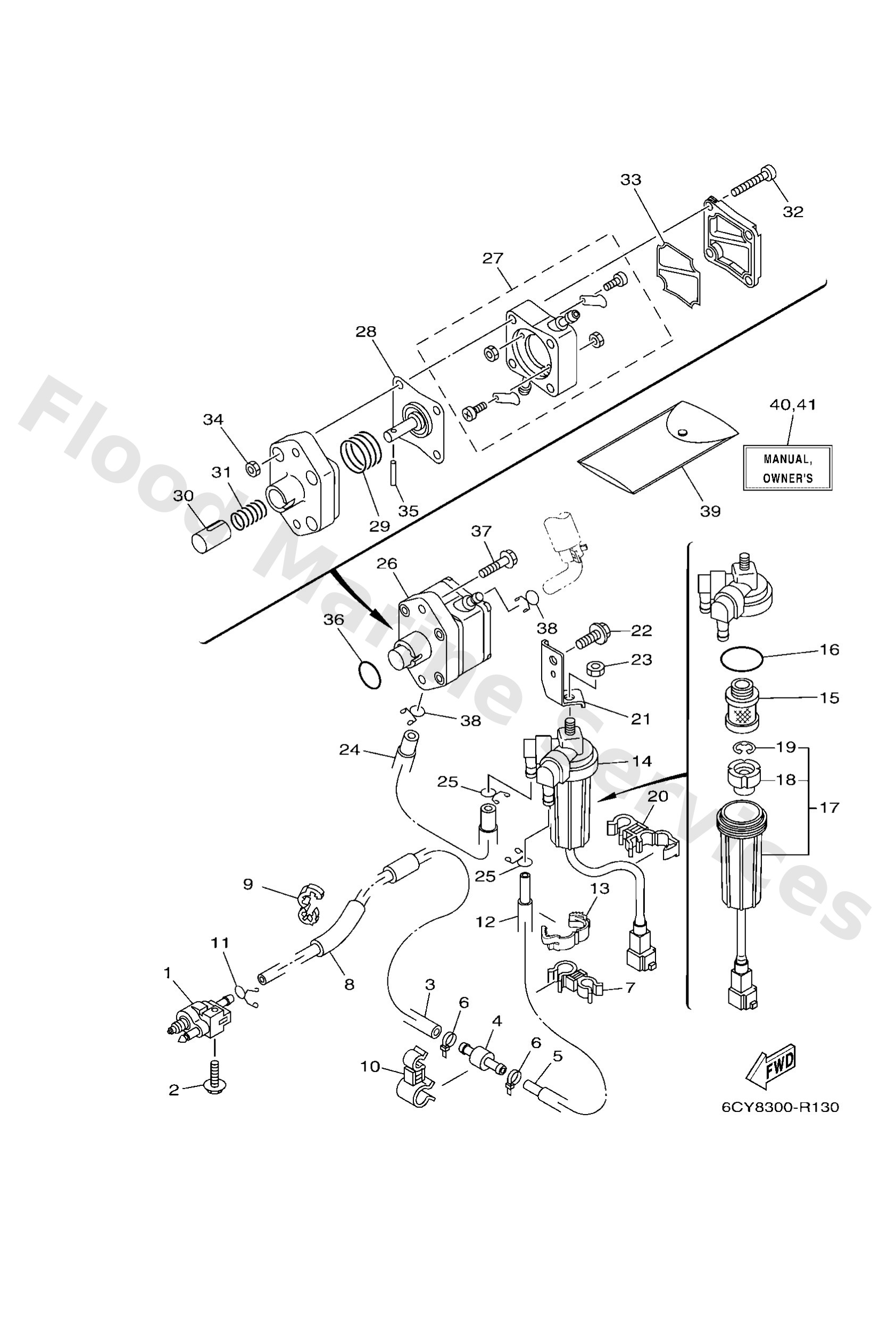

Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Pipe 3
Diagram Reference: 3
Pipe, joint 3
Diagram Reference: 4
Hose (l195)
Diagram Reference: 5
Clamp
Diagram Reference: 6
Clamp
Diagram Reference: 7
Hose(6n6)
Diagram Reference: 8
Clamp
Diagram Reference: 9
Clamp
Diagram Reference: 10
Clip(6k8)
Diagram Reference: 11
Hose
Diagram Reference: 12
Clamp
Diagram Reference: 13
Filter assembly
Diagram Reference: 14
Element, filter (with tag)
Diagram Reference: 15
Gasket
Diagram Reference: 16
Cup, filter (with tag)
Diagram Reference: 17
Float, water level
Diagram Reference: 18
Clip
Diagram Reference: 19
Clamp
Diagram Reference: 20
Bracket, filter
Diagram Reference: 21
Bolt, flange deep recess
Diagram Reference: 22
Nut (661)
Diagram Reference: 23
Pipe, fuel 1
Diagram Reference: 24
Clip(72x)
Diagram Reference: 25
Fuel pump assembly
Diagram Reference: 26
Body 4
Diagram Reference: 27
Diaphragm
Diagram Reference: 28
Spring, diaphragm
Diagram Reference: 29
Plunger
Diagram Reference: 30
Spring
Diagram Reference: 31
Screw
Diagram Reference: 32
Diaphragm
Diagram Reference: 33
Nut, hexagon (663)
Diagram Reference: 34
Pin
Diagram Reference: 35
O-ring
Diagram Reference: 36
Bolt, hexagon w/w deep recess
Diagram Reference: 37
Clip, pipe 1 (6e9)
Diagram Reference: 38
Tool kit
Diagram Reference: 39
O/m f40hetl'16
Diagram Reference: 40
Manual,owner's
Diagram Reference: 40
Manual,owner's
Diagram Reference: 40
Manual,owner's
Diagram Reference: 40
Manual,owner's
Diagram Reference: 40
Manual,owner's
Diagram Reference: 40
Manual,owner's
Diagram Reference: 41
Manual,owner's
Diagram Reference: 41
Manual,owner's
Diagram Reference: 41
Manual,owner's
Diagram Reference: 41
Manual,owner's
Diagram Reference: 41
Manual,owner's
Diagram Reference: 41
