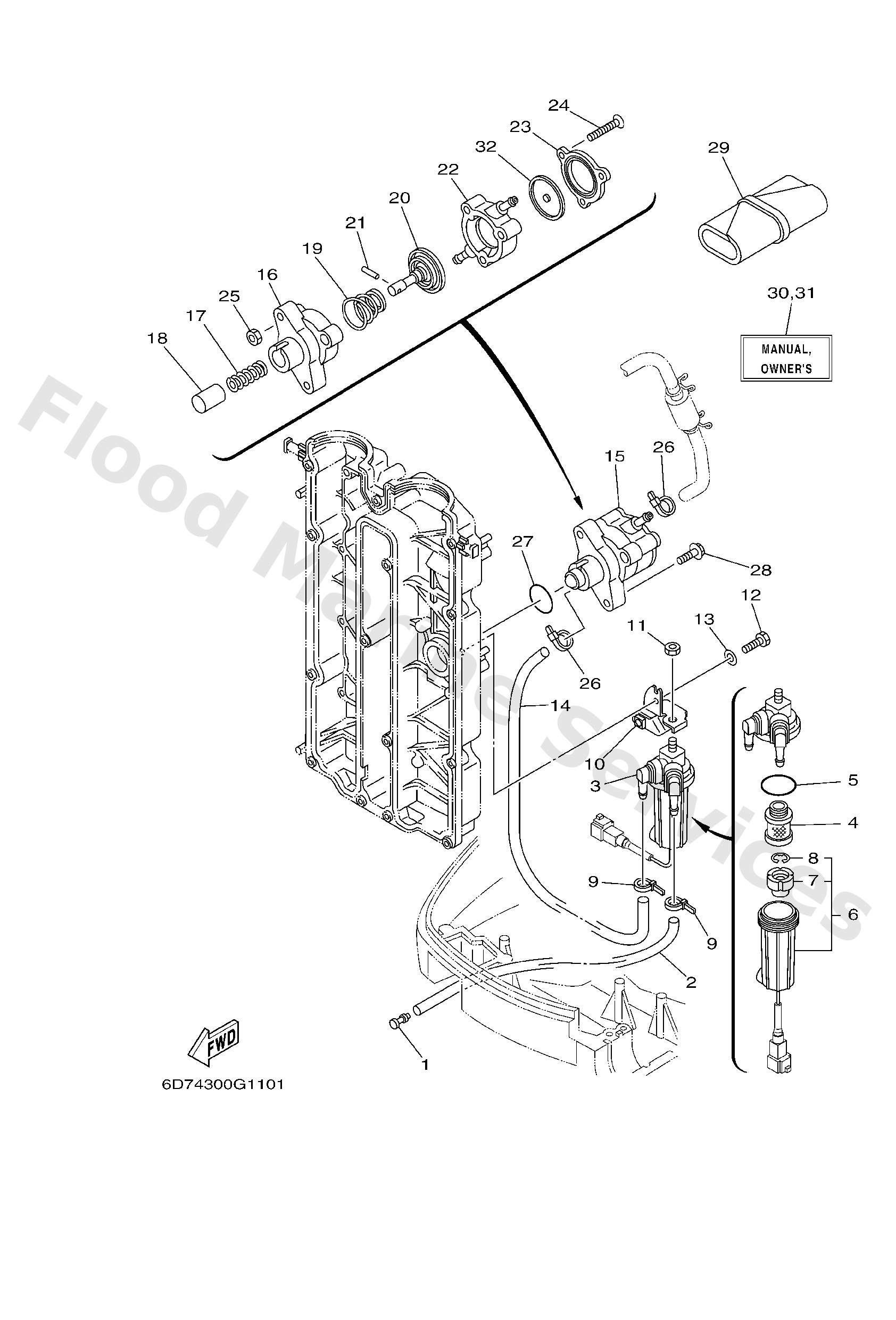

Diagram: FUEL

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
9044513M37
Hose (l2300)
Diagram Reference: 2
Get Part
6D82456000
Filter assembly
Diagram Reference: 3
Get Part
6D82456300
Element, filter (with tag)
Diagram Reference: 4
Get Part
6D82456400
Gasket
Diagram Reference: 5
Get Part
6D82456200
Cup, filter (with tag)
Diagram Reference: 6
Get Part
6D82446900
Float, water level
Diagram Reference: 7
Get Part
6D82451900
Clip
Diagram Reference: 8
Get Part
9046511M10
Clamp
Diagram Reference: 9
Get Part
6D82456600
Bracket, filter
Diagram Reference: 10
Get Part
9538008600
Nut (661)
Diagram Reference: 11
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 12
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 13
Get Part
6D82431100
Pipe, fuel 1
Diagram Reference: 14
Get Part
6D82441010
Fuel pump assembly
Diagram Reference: 15
Get Part
68V2441200
Body 1
Diagram Reference: 16
Get Part
68V2445400
Spring
Diagram Reference: 17
Get Part
63P1313100
Plunger
Diagram Reference: 18
Get Part
68V2442300
Spring, diaphragm
Diagram Reference: 19
Get Part
68V2441100
Diaphragm
Diagram Reference: 20
Get Part
68V2437400
Pin
Diagram Reference: 21
Get Part
68V2441300
Body 2
Diagram Reference: 22
Get Part
6D82441400
Body 3
Diagram Reference: 23
Get Part
68V2444400
Screw
Diagram Reference: 24
Get Part
68V2414900
Nut
Diagram Reference: 25
Get Part
9321030682
O-ring (371)
Diagram Reference: 27
Get Part
9011906M83
Bolt, with washer
Diagram Reference: 28
Get Part
67F2810001
Tool kit
Diagram Reference: 29
Get Part
6D72819976G0 (UR (D))
Manual,owner's
Diagram Reference: 30
Get Part
6D72819976H0 (UR (I))
Manual,owner's
Diagram Reference: 30
Get Part
6D72819976D0 (UR (NL))
Manual,owner's
Diagram Reference: 30
Get Part
6D72819976S0 (UR (ES))
Manual,owner's
Diagram Reference: 30
Get Part
6D72819976F0 (UR (F))
Manual,owner's
Diagram Reference: 30
Get Part
6D72819976E0 (UR (E))
Manual,owner's
Diagram Reference: 30
Get Part
6D72819986K0 (UR (DK))
Manual,owner's
Diagram Reference: 31
Get Part
6D72819986R0 (UR (GR))
Manual,owner's
Diagram Reference: 31
Get Part
6D72819986P0 (UR (P))
Manual,owner's
Diagram Reference: 31
Get Part
6D72819986N0 (UR (N))
Manual,owner's
Diagram Reference: 31
Get Part
6D72819986M0 (UR (S))
Manual,owner's
Diagram Reference: 31
Get Part
6D72819986L0 (UR (SF))
Manual,owner's
Diagram Reference: 31
Get Part
68V2447110
Diaphragm
Diagram Reference: 32
Get Part
4EB2314400
Seal, dust
Diagram Reference: 38
Get Part
