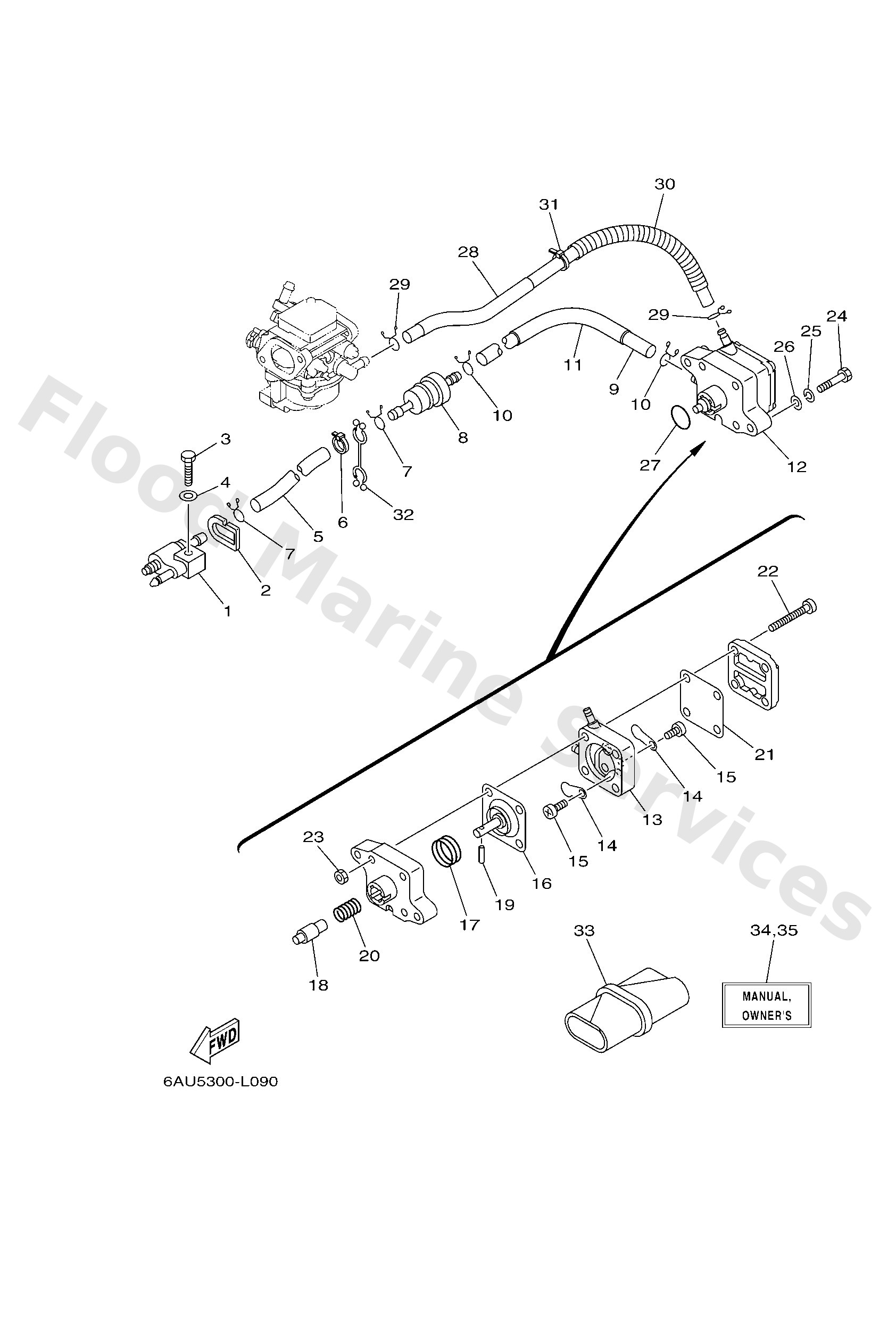

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Seal
Diagram Reference: 2
Bolt
Diagram Reference: 3
Washer, plain (646)
Diagram Reference: 4
Hose
Diagram Reference: 5
Clamp
Diagram Reference: 6
Clip(6k8)
Diagram Reference: 7
Strainer 1
Diagram Reference: 8
Hose (l400)
Diagram Reference: 9
Hose
Diagram Reference: 11
Fuel pump assembly
Diagram Reference: 12
Body 2
Diagram Reference: 13
Valve, check
Diagram Reference: 14
Screw, pan head
Diagram Reference: 15
Diaphragm
Diagram Reference: 16
Spring, diaphragm
Diagram Reference: 17
Plunger
Diagram Reference: 18
Pin
Diagram Reference: 19
Spring
Diagram Reference: 20
Diaphragm
Diagram Reference: 21
Screw
Diagram Reference: 22
Nut,hex
Diagram Reference: 23
Bolt(jf7)
Diagram Reference: 24
Washer(6a1)
Diagram Reference: 25
O-ring
Diagram Reference: 27
Pipe, fuel 1
Diagram Reference: 28
Hose(6tc)
Diagram Reference: 30
Clamp
Diagram Reference: 32
Tool kit
Diagram Reference: 33
O/m f9.9/ft9.9 '12
Diagram Reference: 34
O/m f9.9/ft9.9 '12
Diagram Reference: 34
O/m f9.9/ft9.9 '12
Diagram Reference: 34
O/m f9.9/ft9.9 '12
Diagram Reference: 34
O/m f9.9/ft9.9 '12
Diagram Reference: 34
O/m f9.9/ft9.9 '12
Diagram Reference: 34
O/m f9.9/ft9.9 '12
Diagram Reference: 35
O/m f9.9/ft9.9 '12
Diagram Reference: 35
O/m f9.9/ft9.9 '12
Diagram Reference: 35
O/m f9.9/ft9.9 '12
Diagram Reference: 35
O/m f9.9/ft9.9 '12
Diagram Reference: 35
O/m f9.9/ft9.9 '12
Diagram Reference: 35
