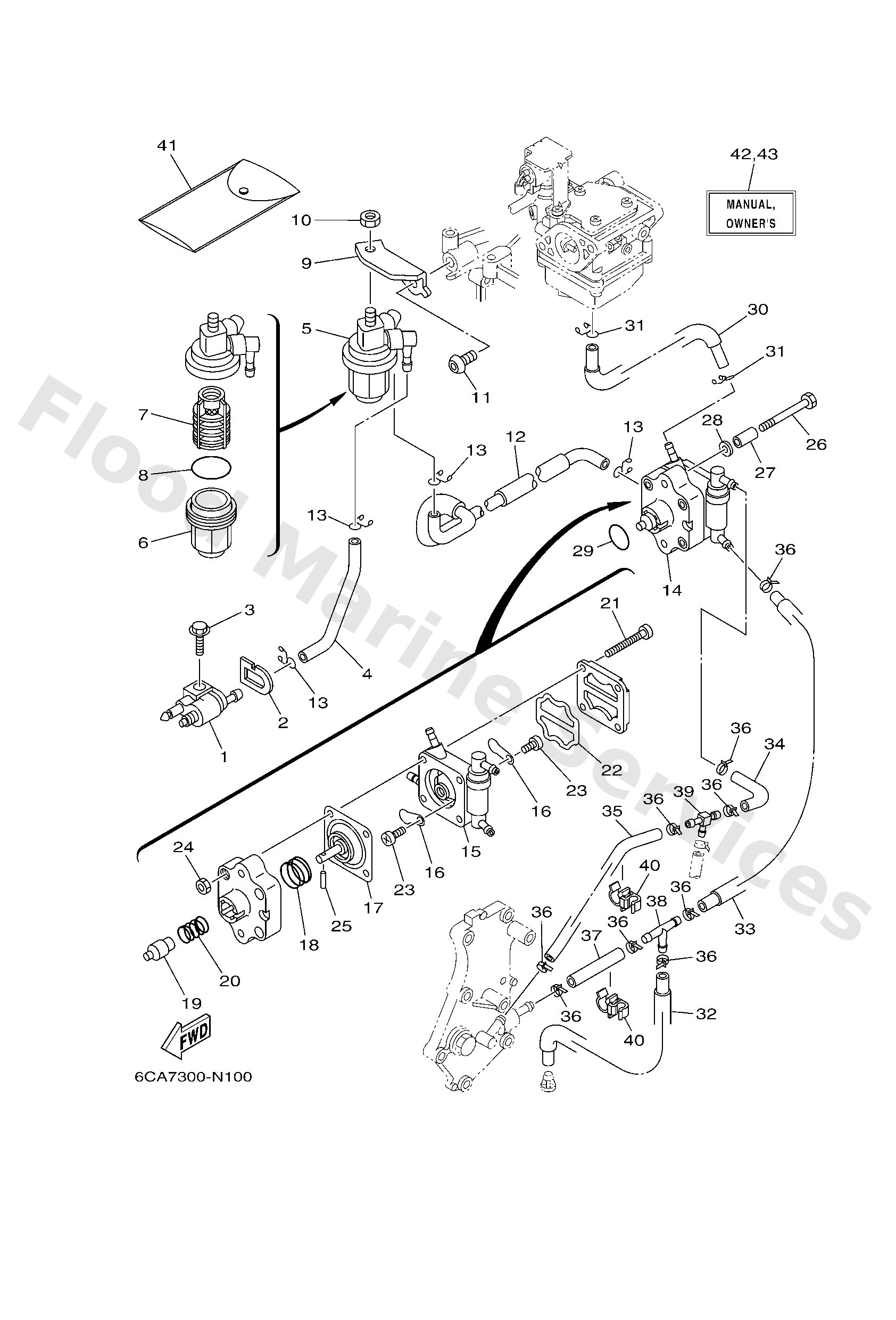

Diagram: FUEL
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Seal
Diagram Reference: 2
Bolt, flange(jk3)
Diagram Reference: 3
Pipe, fuel 1
Diagram Reference: 4
Filter assembly
Diagram Reference: 5
Cup, filter
Diagram Reference: 6
Element, filter
Diagram Reference: 7
O-ring(1wg)
Diagram Reference: 8
Bracket, filter
Diagram Reference: 9
Nut (661)
Diagram Reference: 10
Bolt,hex. socket button
Diagram Reference: 11
Pipe 2
Diagram Reference: 12
Clip(6k8)
Diagram Reference: 13
Fuel pump assembly
Diagram Reference: 14
Body 2
Diagram Reference: 15
Valve, check
Diagram Reference: 16
Diaphragm
Diagram Reference: 17
Spring, diaphragm
Diagram Reference: 18
Plunger
Diagram Reference: 19
Spring
Diagram Reference: 20
Screw
Diagram Reference: 21
Diaphragm
Diagram Reference: 22
Screw, pan head
Diagram Reference: 23
Nut,hex
Diagram Reference: 24
Pin
Diagram Reference: 25
Bolt
Diagram Reference: 26
Collar, lever 1
Diagram Reference: 27
Washer, plate
Diagram Reference: 28
O-ring
Diagram Reference: 29
Pipe 3
Diagram Reference: 30
Pipe 10
Diagram Reference: 32
Pipe 11
Diagram Reference: 33
Hose (l420)
Diagram Reference: 34
Hose (l420)
Diagram Reference: 35
Clamp
Diagram Reference: 36
Hose (L65)
Diagram Reference: 37
Pipe, joint
Diagram Reference: 38
Pipe, joint 4
Diagram Reference: 39
Clamp
Diagram Reference: 40
Tool kit
Diagram Reference: 41
O/m f15ce/cm/ce '15
Diagram Reference: 42
O/m f15ce/cm/ce '15
Diagram Reference: 42
O/m f15ce/cm/ce '15
Diagram Reference: 42
O/m f15ce/cm/ce '15
Diagram Reference: 42
O/m f15ce/cm/ce '15
Diagram Reference: 42
O/m f15ce/cm/ce '15
Diagram Reference: 42
O/m f15ce/cm/ce '15
Diagram Reference: 43
O/m f15ce/cm/ce '15
Diagram Reference: 43
O/m f15ce/cm/ce '15
Diagram Reference: 43
O/m f15ce/cm/ce '15
Diagram Reference: 43
O/m f15ce/cm/ce '15
Diagram Reference: 43
O/m f15ce/cm/ce '15
Diagram Reference: 43
