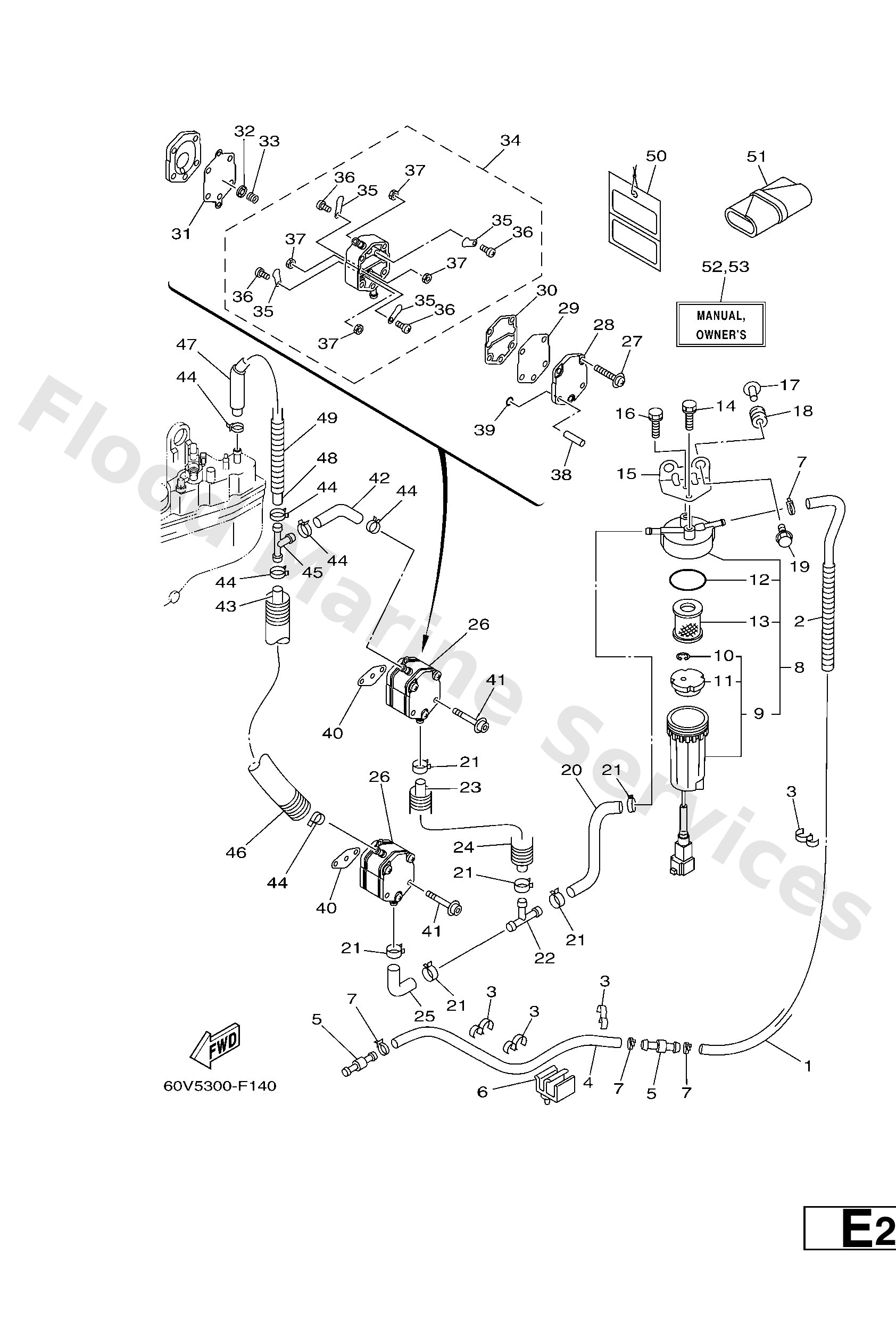

Diagram: FUEL

Diagram

Parts List

61A2431300
Pipe 3
Diagram Reference: 1
Get Part
9044713008
Hose, with spring
Diagram Reference: 2
Get Part
9046413M34
Clamp(6r3)
Diagram Reference: 3
Get Part
9044513M17
Hose(l2700)
Diagram Reference: 4
Get Part
6R32437700
Pipe, joint 3
Diagram Reference: 5
Get Part
6E58259400
Clamp
Diagram Reference: 6
Get Part
9046511M10
Clamp
Diagram Reference: 7
Get Part
6P32456010
Filter assembly
Diagram Reference: 8
Get Part
6P32456210
Cup, filter (with tag)
Diagram Reference: 9
Get Part
6P32451900
Clip
Diagram Reference: 10
Get Part
6P32446900
Float, water level
Diagram Reference: 11
Get Part
6P32456400
Gasket
Diagram Reference: 12
Get Part
6P32456300
Element, filter (with tag)
Diagram Reference: 13
Get Part
9759506514
Bolt(gj3)
Diagram Reference: 14
Get Part
68F2456600
Bracket, filter
Diagram Reference: 15
Get Part
9038706M60
Collar (6h3)
Diagram Reference: 17
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 18
Get Part
9011906M88
Bolt, with washer
Diagram Reference: 19
Get Part
68F2431100
Pipe, Fuel 1
Diagram Reference: 20
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 22
Get Part
6G52431500
Pipe 5
Diagram Reference: 23
Get Part
9044719004
Hose, with spring
Diagram Reference: 24
Get Part
6E52431500
Pipe 5
Diagram Reference: 25
Get Part
6E52441004
Fuel pump assembly
Diagram Reference: 26
Get Part
6E52444401
Screw
Diagram Reference: 27
Get Part
6E52441301
Body 2
Diagram Reference: 28
Get Part
6E52447101
Diaphragm
Diagram Reference: 29
Get Part
6E52443501
Gasket, body 2
Diagram Reference: 30
Get Part
6E52441101
Diaphragm
Diagram Reference: 31
Get Part
6482442400
Seat,spring
Diagram Reference: 32
Get Part
6E52442300
Spring, diaphragm
Diagram Reference: 33
Get Part
6E52441211
Body 1
Diagram Reference: 34
Get Part
6A02442101
Valve, check
Diagram Reference: 35
Get Part
6A01432500
Screw, pan head
Diagram Reference: 36
Get Part
9538003600
Nut (6g8)
Diagram Reference: 37
Get Part
6E52449200
Bush, fulel pump
Diagram Reference: 38
Get Part
6E52448600
O-ring
Diagram Reference: 39
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 40
Get Part
9011006128
Bolt, hexagon socket head
Diagram Reference: 41
Get Part
6G52431610
Pipe 6
Diagram Reference: 42
Get Part
6E52431300
Pipe 3
Diagram Reference: 43
Get Part
9044715002
Hose, With Spring
Diagram Reference: 46
Get Part
9044615M07
Hose(6g4)
Diagram Reference: 47
Get Part
9044513M12
Hose (L235)
Diagram Reference: 48
Get Part
61H2819R31
-
Diagram Reference: 50
Get Part
68F2810000
Tool kit
Diagram Reference: 51
Get Part
60V2819976E0 (UR (E))
Om z250f'07
Diagram Reference: 52
Get Part
60V2819976F0 (UR (F))
Om z250f'07
Diagram Reference: 52
Get Part
60V2819976S0 (UR (ES))
Om z250f'07
Diagram Reference: 52
Get Part
60V2819976G0 (UR (D))
Om z250f'07
Diagram Reference: 52
Get Part
60V2819976D0 (UR (NL))
Om z250f'07
Diagram Reference: 52
Get Part
60V2819976H0 (UR (I))
Om z250f'07
Diagram Reference: 52
Get Part
60V2819986K0 (UR (DK))
Om z250f'07
Diagram Reference: 53
Get Part
60V2819986R0 (UR (GR))
Om z250f'07
Diagram Reference: 53
Get Part
60V2819986P0 (UR (P))
Om z250f'07
Diagram Reference: 53
Get Part
60V2819986N0 (UR (N))
Om z250f'07
Diagram Reference: 53
Get Part
60V2819986M0 (UR (S))
Om z250f'07
Diagram Reference: 53
Get Part
60V2819986L0 (UR (SF))
Om z250f'07
Diagram Reference: 53
Get Part
