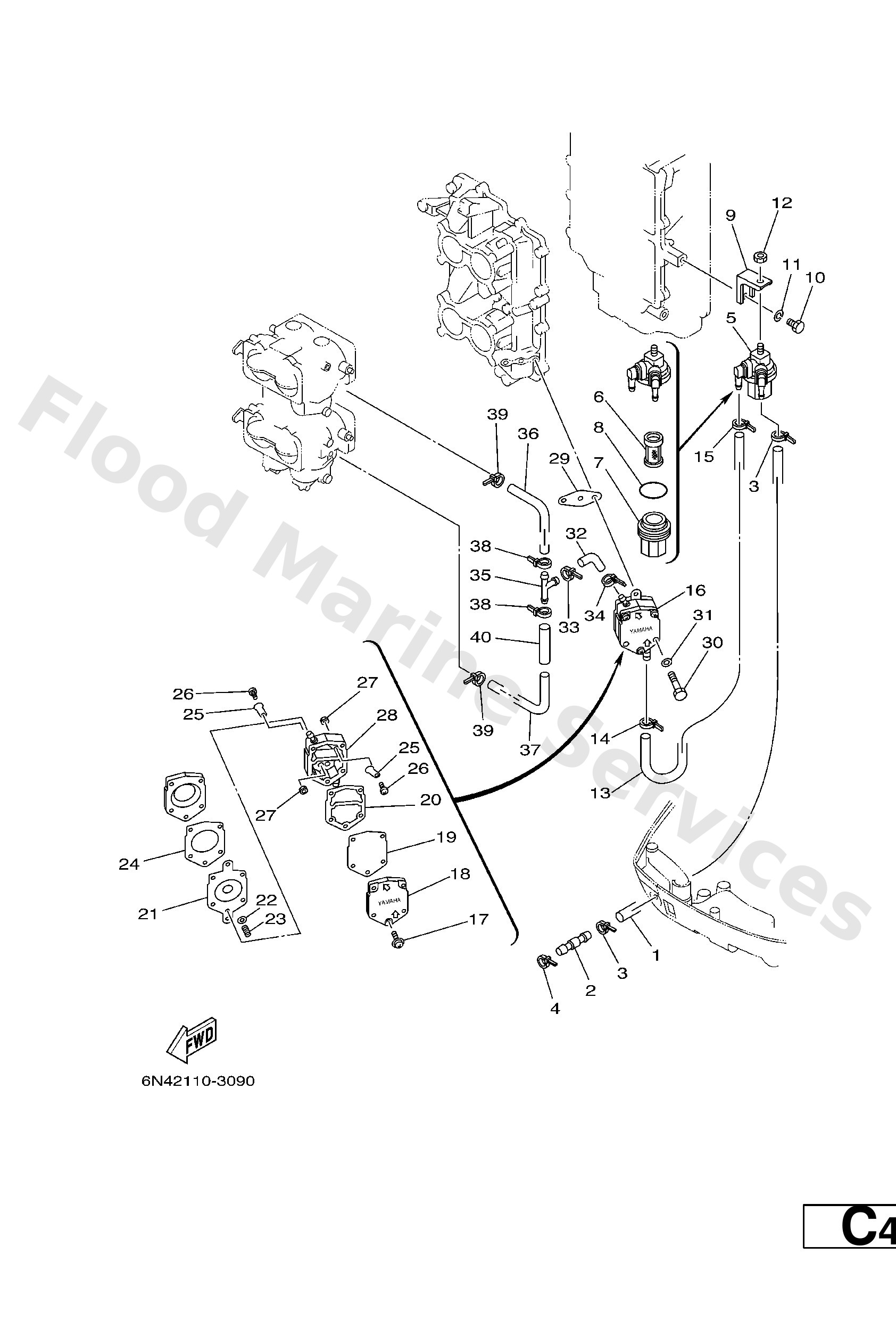

Diagram: FUEL 1
Parts List
Pipe 3
Diagram Reference: 1
Pipe, joint 3
Diagram Reference: 2
Clamp
Diagram Reference: 3
Filter assembly
Diagram Reference: 5
Element, filter
Diagram Reference: 6
Cup, filter
Diagram Reference: 7
O-ring(1wg)
Diagram Reference: 8
Bracket, filter
Diagram Reference: 9
Bolt(gj3)
Diagram Reference: 10
Washer(6a1)
Diagram Reference: 11
Nut (661)
Diagram Reference: 12
Pipe 4
Diagram Reference: 13
Fuel pump assembly
Diagram Reference: 16
Screw
Diagram Reference: 17
Body 2
Diagram Reference: 18
Diaphragm
Diagram Reference: 19
Gasket, body 2
Diagram Reference: 20
Diaphragm
Diagram Reference: 21
Seat,spring
Diagram Reference: 22
Spring, diaphragm
Diagram Reference: 23
Gasket, body
Diagram Reference: 24
Valve, check
Diagram Reference: 25
Screw, pan head
Diagram Reference: 26
Nut (6g8)
Diagram Reference: 27
Body 1
Diagram Reference: 28
Gasket,fuel pump
Diagram Reference: 29
Bolt(jf7)
Diagram Reference: 30
Washer, plain (646)
Diagram Reference: 31
Pipe 6
Diagram Reference: 32
Pipe, joint 1
Diagram Reference: 35
Hose (l90)
Diagram Reference: 36
Pipe 9
Diagram Reference: 37
Hose(6g4)
Diagram Reference: 40
