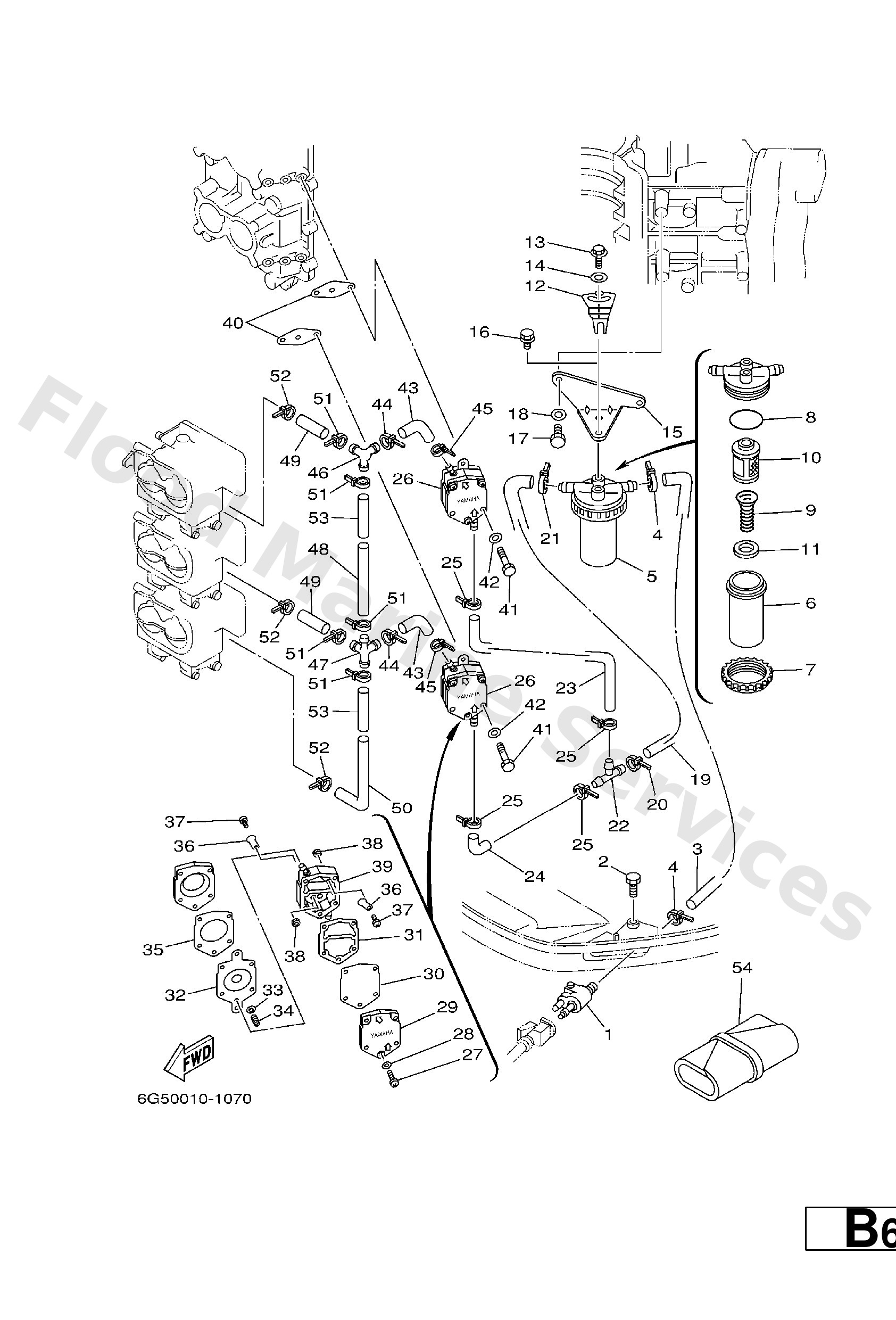

Diagram: FUEL 1

Diagram

Parts List

6E52430410
Fuel pipe joint comp. 1
Diagram Reference: 1
Get Part
9709506028
Bolt (6g0)
Diagram Reference: 2
Get Part
6G52431301
Pipe 3
Diagram Reference: 3
Get Part
9046511M10
Clamp
Diagram Reference: 4
Get Part
61A2456004
Filter assembly
Diagram Reference: 5
Get Part
61A2452100
Cup, filter
Diagram Reference: 6
Get Part
65L2453101
Nut
Diagram Reference: 7
Get Part
61A2456400
O-ring
Diagram Reference: 8
Get Part
61A2457701
Spring
Diagram Reference: 9
Get Part
61A2456300
Element, filter
Diagram Reference: 10
Get Part
61A2446900
Float, water level
Diagram Reference: 11
Get Part
65L2455800
Holder, filter
Diagram Reference: 12
Get Part
9759506416
Bolt, with washer(62x)
Diagram Reference: 13
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 14
Get Part
61U2456600
Bracket, Filter
Diagram Reference: 15
Get Part
9759506514
Bolt(gj3)
Diagram Reference: 16
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 18
Get Part
6G52431410
Pipe 4
Diagram Reference: 19
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 22
Get Part
6G52431500
Pipe 5
Diagram Reference: 23
Get Part
6E52431500
Pipe 5
Diagram Reference: 24
Get Part
6E52441003
Fuel pump assembly
Diagram Reference: 26
Get Part
9850305035
Screw, pan head (686)
Diagram Reference: 27
Get Part
9290305600
Washer, plain (646)
Diagram Reference: 28
Get Part
6E52441300
Body 2
Diagram Reference: 29
Get Part
6E52447100
Diaphragm
Diagram Reference: 30
Get Part
6E52443500
Gasket, body 2
Diagram Reference: 31
Get Part
6E52441100
Diaphragm
Diagram Reference: 32
Get Part
6482442400
Seat,spring
Diagram Reference: 33
Get Part
6E52442300
Spring, diaphragm
Diagram Reference: 34
Get Part
6E52443402
Gasket, body
Diagram Reference: 35
Get Part
6A02442101
Valve, check
Diagram Reference: 36
Get Part
6A01432500
Screw, pan head
Diagram Reference: 37
Get Part
9538003600
Nut (6g8)
Diagram Reference: 38
Get Part
6E52441210
Body 1
Diagram Reference: 39
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 40
Get Part
9709506050
Bolt(jf7)
Diagram Reference: 41
Get Part
6G52431610
Pipe 6
Diagram Reference: 43
Get Part
6G52437600
Pipe, joint 1
Diagram Reference: 46
Get Part
6G52437700
Pipe, joint 2
Diagram Reference: 47
Get Part
6G52431701 (Go to P/N ) PE0-OM-220009)
Pipe 7
Diagram Reference: 48
Get Part
6G52431810 (Go to P/N ) PE0-OM-220009)
Hose (l90)
Diagram Reference: 49
Get Part
6G52431910 (Go to P/N ) PE0-OM-220009)
Pipe 9
Diagram Reference: 50
Get Part
9044615M07 (Go to P/N ) PE0-OM-220009)
Hose(6g4)
Diagram Reference: 53
Get Part
656W281002
Tool kit
Diagram Reference: 54
Get Part
