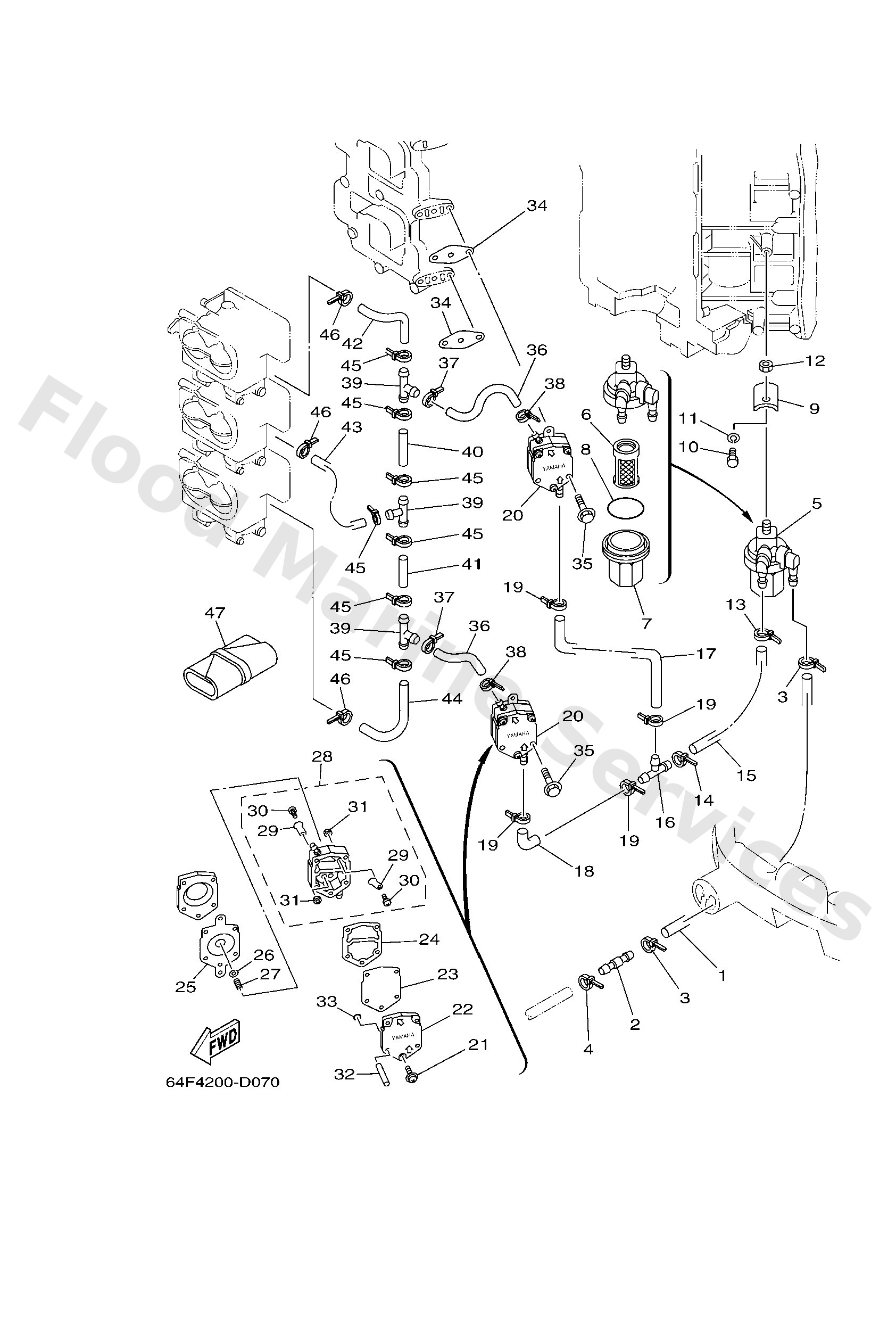

Diagram: FUEL 1

Diagram

Parts List

6R32431301
Pipe 3 (L880)
Diagram Reference: 1
Get Part
6R32437700
Pipe, joint 3
Diagram Reference: 2
Get Part
9046511M10
Clamp
Diagram Reference: 3
Get Part
6R32456000
Filter assembly
Diagram Reference: 5
Get Part
6R32456300
Element, filter
Diagram Reference: 6
Get Part
61N2452100
Cup, filter
Diagram Reference: 7
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 8
Get Part
6482456602
Bracket, filter
Diagram Reference: 9
Get Part
9701306014
Bolt(gj3)
Diagram Reference: 10
Get Part
9290306100
Washer(6a1)
Diagram Reference: 11
Get Part
9538008600
Nut (661)
Diagram Reference: 12
Get Part
6G52431400
Pipe 4
Diagram Reference: 15
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 16
Get Part
6K72431500
Pipe 5
Diagram Reference: 17
Get Part
6E52431500
Pipe 5
Diagram Reference: 18
Get Part
6E52441004
Fuel pump assembly
Diagram Reference: 20
Get Part
6E52444401
Screw
Diagram Reference: 21
Get Part
6E52441301
Body 2
Diagram Reference: 22
Get Part
6E52447101
Diaphragm
Diagram Reference: 23
Get Part
6E52443501
Gasket, body 2
Diagram Reference: 24
Get Part
6E52441101
Diaphragm
Diagram Reference: 25
Get Part
6482442400
Seat,spring
Diagram Reference: 26
Get Part
6E52442300
Spring, diaphragm
Diagram Reference: 27
Get Part
6E52441211
Body 1
Diagram Reference: 28
Get Part
6A02442101
Valve, check
Diagram Reference: 29
Get Part
6A01432500
Screw, pan head
Diagram Reference: 30
Get Part
9538003600
Nut (6g8)
Diagram Reference: 31
Get Part
6E52449200
Bush, fulel pump
Diagram Reference: 32
Get Part
6E52448600
O-ring
Diagram Reference: 33
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 34
Get Part
9759506550
Bolt, hexagon w/w deep recess
Diagram Reference: 35
Get Part
6G52431610
Pipe 6
Diagram Reference: 36
Get Part
9044513M03
Hose (l90)
Diagram Reference: 40
Get Part
9044513M02
Hose (l90)
Diagram Reference: 41
Get Part
6K72431700
Pipe 7
Diagram Reference: 42
Get Part
6K72431800
Pipe, overflow
Diagram Reference: 43
Get Part
6K72431900
Pipe, oil
Diagram Reference: 44
Get Part
656W281002
Tool kit
Diagram Reference: 47
