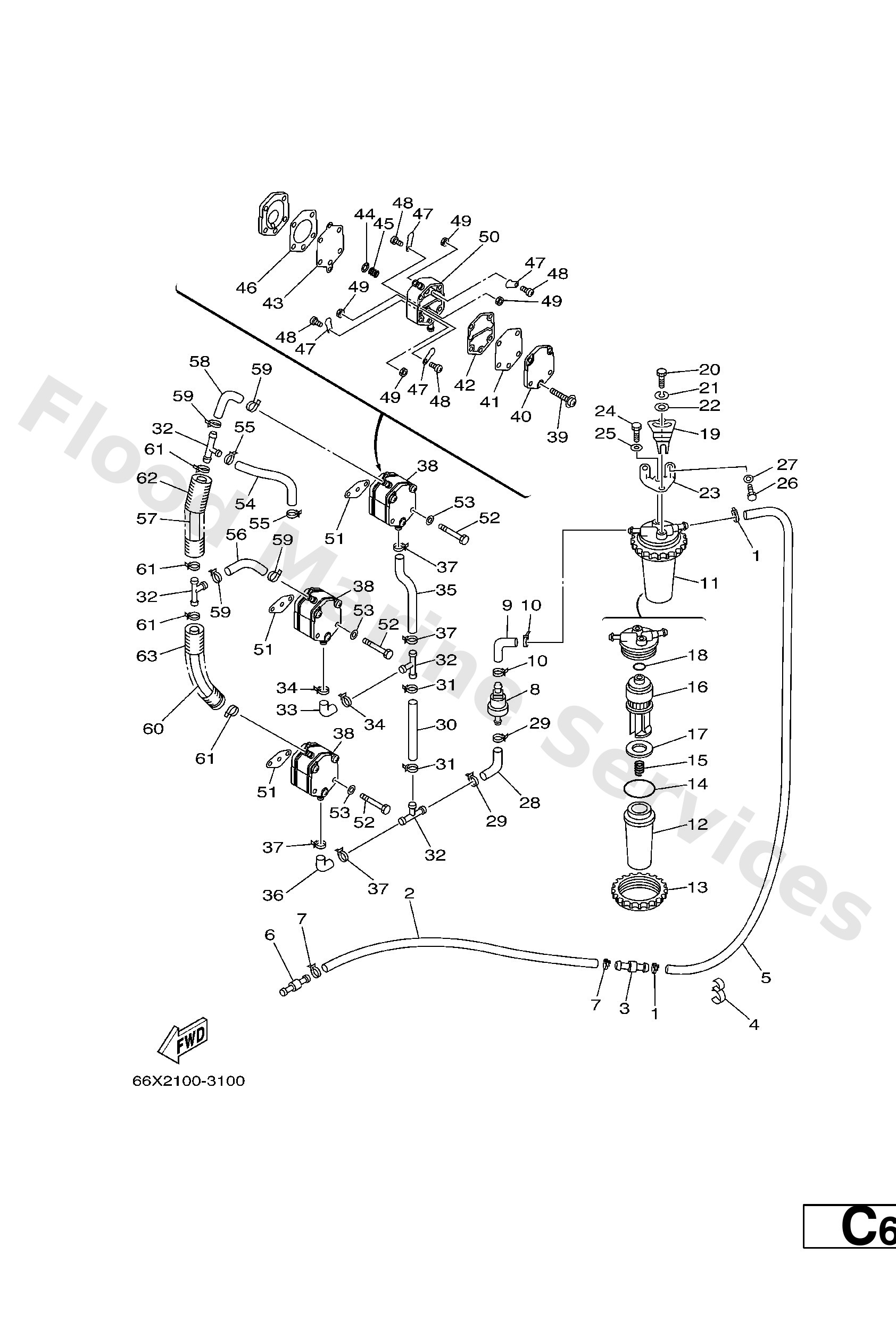

Diagram: FUEL 1

Diagram

Parts List

90465−11M10
Clamp
Diagram Reference: 1
Get Part
90445−13M17
Hose(l2700)
Diagram Reference: 2
Get Part
6R3−24377−00
Pipe, joint 3
Diagram Reference: 3
Get Part
90464−13M34
Clamp(6r3)
Diagram Reference: 4
Get Part
61A−24313−00
Pipe 3
Diagram Reference: 5
Get Part
6R5−24408−00
Fuel feed assembly
Diagram Reference: 8
Get Part
61A−24311−00
Pipe, fuel 1
Diagram Reference: 9
Get Part
65L−24560−00
Filter assembly
Diagram Reference: 11
Get Part
61A−24521−00
Cup, filter
Diagram Reference: 12
Get Part
65L−24531−01
Nut
Diagram Reference: 13
Get Part
61A−24564−00
O-ring
Diagram Reference: 14
Get Part
65L−24577−00
Spring
Diagram Reference: 15
Get Part
65L−24563−00
Element, filter
Diagram Reference: 16
Get Part
61A−24469−00
Float, water level
Diagram Reference: 17
Get Part
65L−24564−00
Gasket
Diagram Reference: 18
Get Part
65L−24558−00
Holder, filter
Diagram Reference: 19
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 20
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 21
Get Part
90201−06068
Washer,plate (6k8)
Diagram Reference: 22
Get Part
61A−24566−00
Bracket, filter
Diagram Reference: 23
Get Part
97095−06014
Bolt(gj3)
Diagram Reference: 24
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 25
Get Part
6G5−24317−01
Pipe 7
Diagram Reference: 30
Get Part
6E5−24378−00
Pipe, joint 3
Diagram Reference: 32
Get Part
6E5−24315−00
Pipe 5
Diagram Reference: 33
Get Part
6G5−24315−00
Pipe 5
Diagram Reference: 35
Get Part
6E5−24410−03
Fuel pump assembly
Diagram Reference: 38
Get Part
6E5−24444−00
Screw
Diagram Reference: 39
Get Part
6E5−24413−00
Body 2
Diagram Reference: 40
Get Part
6E5−24471−00
Diaphragm
Diagram Reference: 41
Get Part
6E5−24435−00
Gasket, body 2
Diagram Reference: 42
Get Part
6E5−24411−00
Diaphragm
Diagram Reference: 43
Get Part
648−24424−00
Seat,spring
Diagram Reference: 44
Get Part
6E5−24423−00
Spring, diaphragm
Diagram Reference: 45
Get Part
6E5−24434−02
Gasket, body
Diagram Reference: 46
Get Part
6A0−24421−01
Valve, check
Diagram Reference: 47
Get Part
6A0−14325−00
Screw, pan head
Diagram Reference: 48
Get Part
95380−03600
Nut (6g8)
Diagram Reference: 49
Get Part
6E5−24412−10
Body 1
Diagram Reference: 50
Get Part
650−24431−A0
Gasket,fuel pump
Diagram Reference: 51
Get Part
97095−06050
Bolt(jf7)
Diagram Reference: 52
Get Part
65L−24311−00
Pipe, Fuel 1
Diagram Reference: 54
Get Part
6G5−24316−10
Pipe 6
Diagram Reference: 56
Get Part
90445−13M14
Hose (l90)
Diagram Reference: 57
Get Part
6E5−24313−00
Pipe 3
Diagram Reference: 60
Get Part
6E9−83557−70
Tube
Diagram Reference: 62
Get Part
65L−83557−00
Tube
Diagram Reference: 63
Get Part
