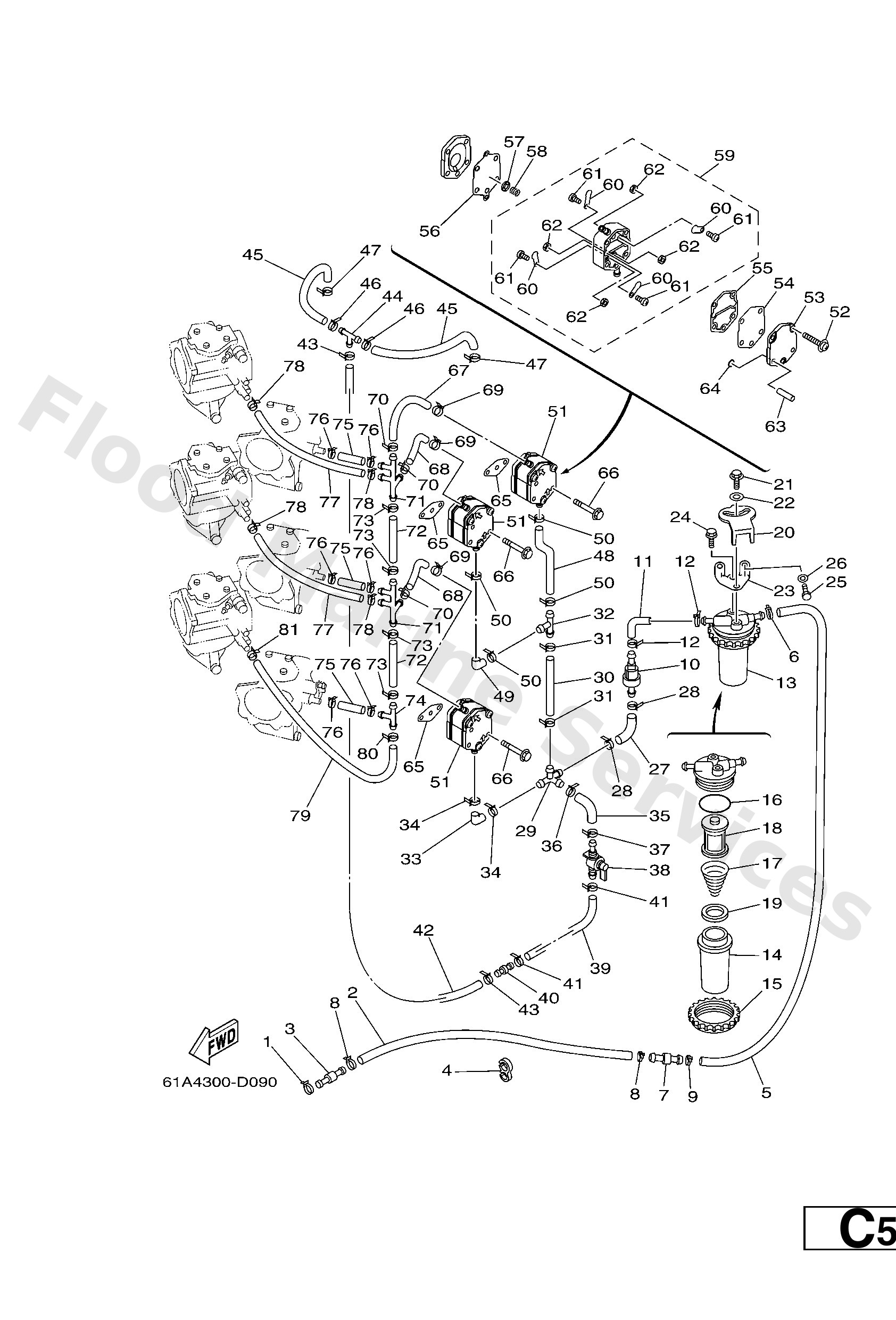

Diagram: FUEL 1

Diagram

Parts List

9046511M10
Clamp
Diagram Reference: 1
Get Part
9044513M17
Hose(l2700)
Diagram Reference: 2
Get Part
6R32437700
Pipe, joint 3
Diagram Reference: 3
Get Part
9046413M34
Clamp(6r3)
Diagram Reference: 4
Get Part
61A2431300
Pipe 3
Diagram Reference: 5
Get Part
6R52440800
Fuel feed assembly
Diagram Reference: 10
Get Part
61A2431100
Pipe, fuel 1
Diagram Reference: 11
Get Part
61A2456004
Filter assembly
Diagram Reference: 13
Get Part
61A2452100
Cup, filter
Diagram Reference: 14
Get Part
65L2453101
Nut
Diagram Reference: 15
Get Part
61A2456400
O-ring
Diagram Reference: 16
Get Part
61A2457701
Spring
Diagram Reference: 17
Get Part
61A2456300
Element, filter
Diagram Reference: 18
Get Part
61A2446900
Float, water level
Diagram Reference: 19
Get Part
60H2455800
Holder, filter
Diagram Reference: 20
Get Part
9759506416
Bolt, with washer(62x)
Diagram Reference: 21
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 22
Get Part
61A2456600
Bracket, filter
Diagram Reference: 23
Get Part
9759506514
Bolt(gj3)
Diagram Reference: 24
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 25
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 26
Get Part
6G52437700
Pipe, joint 2
Diagram Reference: 29
Get Part
6G52431701
Pipe 7
Diagram Reference: 30
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 32
Get Part
6E52431500
Pipe 5
Diagram Reference: 33
Get Part
61A2450000
Fuel cock assembly 1
Diagram Reference: 38
Get Part
9044510M17
Hose (l400)
Diagram Reference: 39
Get Part
6E52174400
Breezer
Diagram Reference: 40
Get Part
9044510M34
Hose (L550)
Diagram Reference: 42
Get Part
6882437800
Pipe, joint
Diagram Reference: 44
Get Part
6G52431500
Pipe 5
Diagram Reference: 48
Get Part
6E52441004
Fuel pump assembly
Diagram Reference: 51
Get Part
6E52444401
Screw
Diagram Reference: 52
Get Part
6E52441301
Body 2
Diagram Reference: 53
Get Part
6E52447101
Diaphragm
Diagram Reference: 54
Get Part
6E52443501
Gasket, body 2
Diagram Reference: 55
Get Part
6E52441101
Diaphragm
Diagram Reference: 56
Get Part
6482442400
Seat,spring
Diagram Reference: 57
Get Part
6E52442300
Spring, diaphragm
Diagram Reference: 58
Get Part
6E52441211
Body 1
Diagram Reference: 59
Get Part
6A02442101
Valve, check
Diagram Reference: 60
Get Part
6A01432500
Screw, pan head
Diagram Reference: 61
Get Part
9538003600
Nut (6g8)
Diagram Reference: 62
Get Part
6E52449200
Bush, fulel pump
Diagram Reference: 63
Get Part
6E52448600
O-ring
Diagram Reference: 64
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 65
Get Part
9759506550
Bolt, hexagon w/w deep recess
Diagram Reference: 66
Get Part
9044513M31
Hose (L85)
Diagram Reference: 68
Get Part
61A2437700
Pipe, Joint 3
Diagram Reference: 71
Get Part
9044513M14
Hose (l90)
Diagram Reference: 72
Get Part
9044513M02
Hose (l90)
Diagram Reference: 75
Get Part
9044513M12
Hose (L235)
Diagram Reference: 77
Get Part
9044513M11
Pipe, fuel 1
Diagram Reference: 79
Get Part
