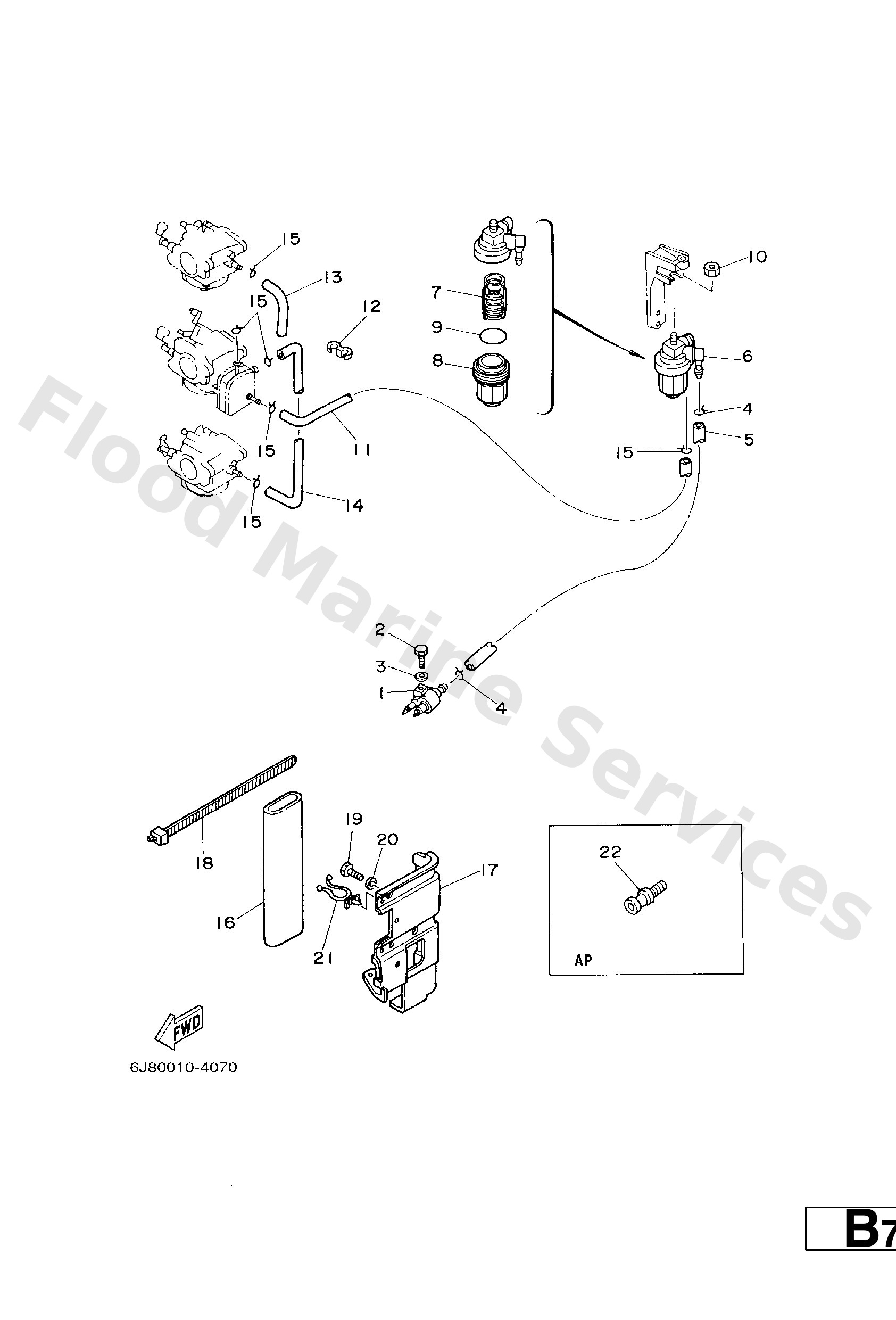

Diagram: FUEL 1

Diagram

Parts List

6G1−24304−02

Fuel pipe joint comp. 1

Diagram Reference: 1

97095−06025

Bolt

Diagram Reference: 2

92995−06600

Washer, plain (646)

Diagram Reference: 3

90467−08004

Clip, pipe 6162435600

Diagram Reference: 4

90445−09M00

Hose (l180)

Diagram Reference: 5

61N−24560−00

Filter assembly

Diagram Reference: 6

61N−24563−00

Element, filter

Diagram Reference: 7

61N−24521−00

Cup, filter

Diagram Reference: 8

93210−32738

O-ring(1wg)

Diagram Reference: 9

90179−08M15

Nut(6j8)

Diagram Reference: 10

6E5−24312−00

Pipe 2

Diagram Reference: 11

90464−09M21

Clamp(6j8)

Diagram Reference: 12

688−24313−00

Pipe, fuel 2

Diagram Reference: 13

6J8−24311−00

Pipe, fuel 2

Diagram Reference: 14

656−W2810−02 (AP)

Tool kit

Diagram Reference: 16

6J8−28170−00

Tool, holder

Diagram Reference: 17

6G1−2811G−00 (AP)

Band

Diagram Reference: 18

97095−08016

Bolt, hexagon deep recess

Diagram Reference: 19

92995−08600

Washer, plain (663)

Diagram Reference: 20

90464−12M17

Clamp(6j8)

Diagram Reference: 21

6E0−28193−00−94 (AP D)12.5MM)

Plug, water check

Diagram Reference: 22
