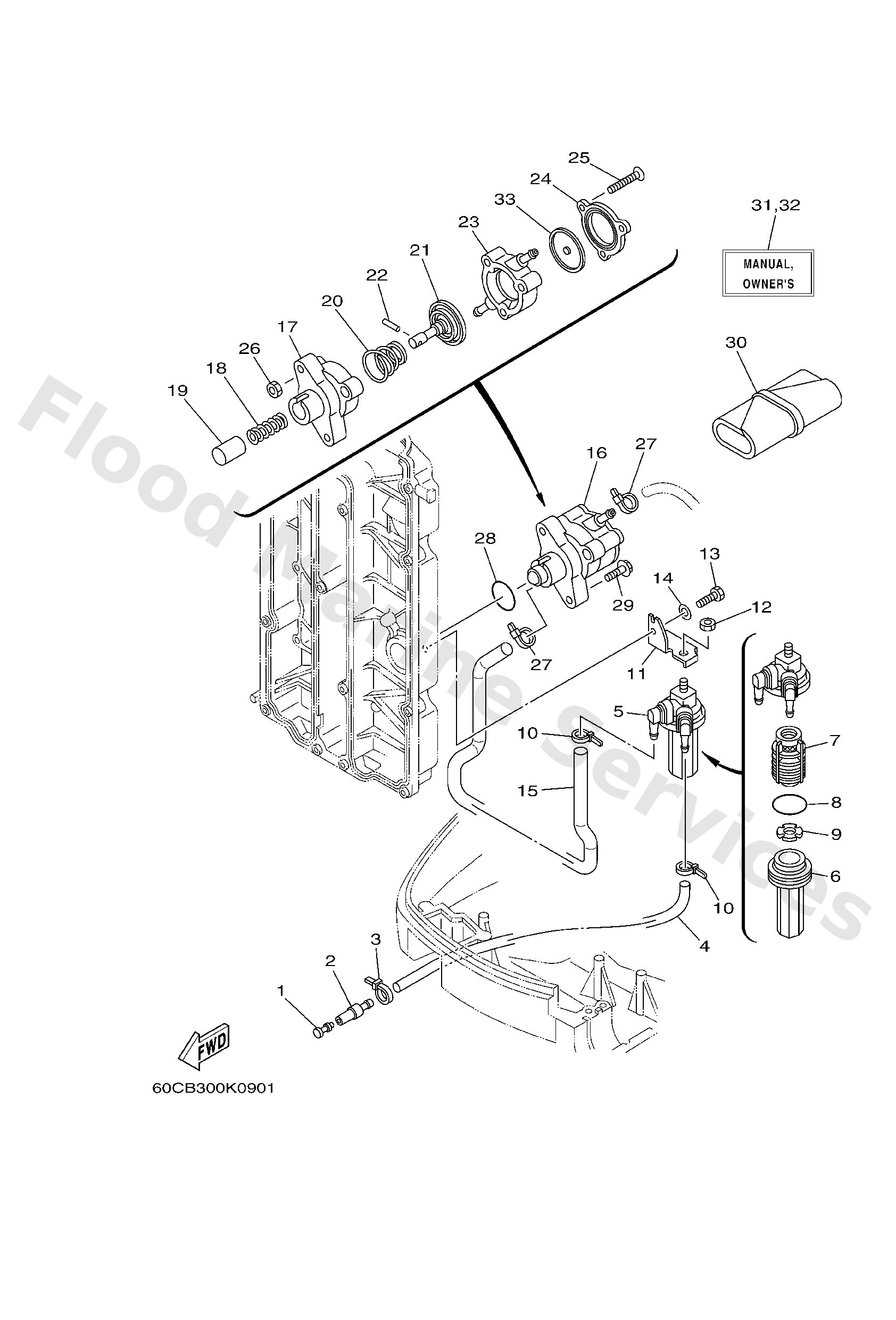

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6R32437700
Pipe, joint 3
Diagram Reference: 2
Get Part
9046511M10
Clamp
Diagram Reference: 3
Get Part
9044513M27
Hose (l950)
Diagram Reference: 4
Get Part
60C2456000
Filter assembly
Diagram Reference: 5
Get Part
68V2452101
Cup, filter
Diagram Reference: 6
Get Part
61N2456300
Element, filter
Diagram Reference: 7
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 8
Get Part
68V2446901
Float, water level
Diagram Reference: 9
Get Part
60C2456600
Bracket, filter
Diagram Reference: 11
Get Part
9538008600
Nut (661)
Diagram Reference: 12
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 14
Get Part
6D82431100
Pipe, fuel 1
Diagram Reference: 15
Get Part
6D82441010
Fuel pump assembly
Diagram Reference: 16
Get Part
68V2441200
Body 1
Diagram Reference: 17
Get Part
68V2445400
Spring
Diagram Reference: 18
Get Part
63P1313100
Plunger
Diagram Reference: 19
Get Part
68V2442300
Spring, diaphragm
Diagram Reference: 20
Get Part
68V2441100
Diaphragm
Diagram Reference: 21
Get Part
68V2437400
Pin
Diagram Reference: 22
Get Part
68V2441300
Body 2
Diagram Reference: 23
Get Part
6D82441400
Body 3
Diagram Reference: 24
Get Part
68V2444400
Screw
Diagram Reference: 25
Get Part
68V2414900
Nut
Diagram Reference: 26
Get Part
9321030682
O-ring (371)
Diagram Reference: 28
Get Part
9011906M83
Bolt, with washer
Diagram Reference: 29
Get Part
67F2810001 (AP)
Tool kit
Diagram Reference: 30
Get Part
67F281997EG0 (UR (D))
Manual,owner's
Diagram Reference: 31
Get Part
67F281997EH0 (UR (I))
Manual,owner's
Diagram Reference: 31
Get Part
67F281997ED0 (UR (NL))
Manual,owner's
Diagram Reference: 31
Get Part
67F281997ES0 (UR (ES))
Manual,owner's
Diagram Reference: 31
Get Part
67F281997EF0 (UR (F))
Manual,owner's
Diagram Reference: 31
Get Part
67F281997EE0 (UR (E))
Manual,owner's
Diagram Reference: 31
Get Part
67F281998GK0 (UR (DK))
Manual,owner's
Diagram Reference: 32
Get Part
67F281998GR0 (UR (GR))
Manual,owner's
Diagram Reference: 32
Get Part
67F281998GP0 (UR (P))
Manual,owner's
Diagram Reference: 32
Get Part
67F281998GN0 (UR (N))
Manual,owner's
Diagram Reference: 32
Get Part
67F281998GM0 (UR (S))
Manual,owner's
Diagram Reference: 32
Get Part
67F281998GL0 (UR (SF))
Manual,owner's
Diagram Reference: 32
Get Part
68V2447110
Diaphragm
Diagram Reference: 33
Get Part
4EB2314400
Seal, dust
Diagram Reference: 38
