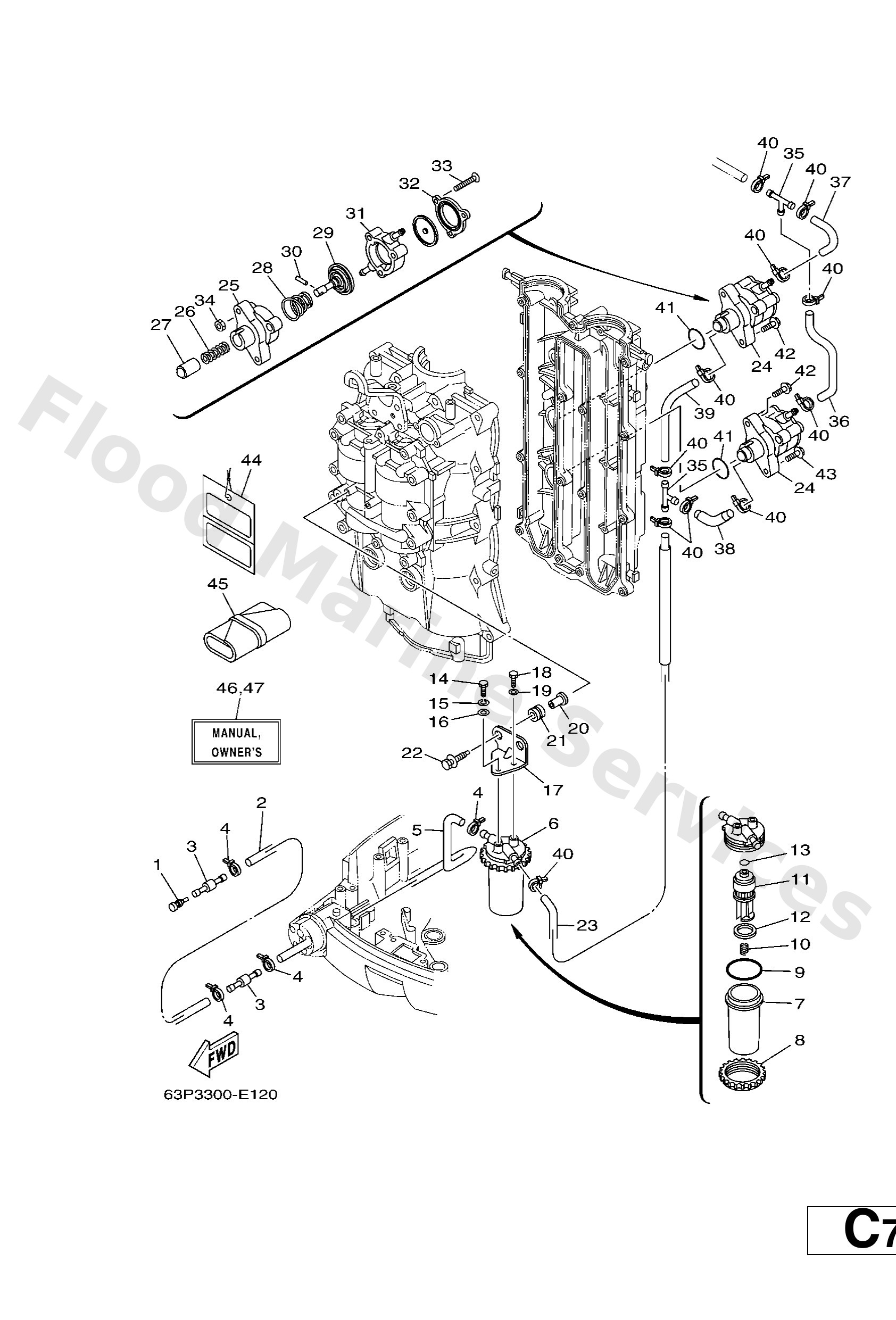

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
9044513511
Hose (L2000)
Diagram Reference: 2
Get Part
6R32437710
Pipe, joint 3
Diagram Reference: 3
Get Part
9046511M10
Clamp
Diagram Reference: 4
Get Part
63P2431600
Pipe 6
Diagram Reference: 5
Get Part
65L2456000
Filter assembly
Diagram Reference: 6
Get Part
61A2452100
Cup, filter
Diagram Reference: 7
Get Part
65L2453101
Nut
Diagram Reference: 8
Get Part
61A2456400
O-ring
Diagram Reference: 9
Get Part
65L2457700
Spring
Diagram Reference: 10
Get Part
65L2456300
Element, filter
Diagram Reference: 11
Get Part
61A2446900
Float, water level
Diagram Reference: 12
Get Part
65L2456400
Gasket
Diagram Reference: 13
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 14
Get Part
9299506100
Washer(6a1)
Diagram Reference: 15
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 16
Get Part
63P2456600
Bracket, filter
Diagram Reference: 17
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 18
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 19
Get Part
9038706M60
Collar (6h3)
Diagram Reference: 20
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 21
Get Part
9011906071
Bolt, with washer
Diagram Reference: 22
Get Part
63P2431110
Pipe, fuel 1
Diagram Reference: 23
Get Part
63P2441000
Fuel pump assembly
Diagram Reference: 24
Get Part
68V2441200
Body 1
Diagram Reference: 25
Get Part
68V2445400
Spring
Diagram Reference: 26
Get Part
63P1313100
Plunger
Diagram Reference: 27
Get Part
63P2442300
Spring, diaphragm
Diagram Reference: 28
Get Part
68V2441100
Diaphragm
Diagram Reference: 29
Get Part
68V2437400
Pin
Diagram Reference: 30
Get Part
68V2441300
Body 2
Diagram Reference: 31
Get Part
63P2441400
Body 3
Diagram Reference: 32
Get Part
68V2444400
Screw
Diagram Reference: 33
Get Part
68V2414900
Nut
Diagram Reference: 34
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 35
Get Part
63P2431400
Pipe 4
Diagram Reference: 36
Get Part
63P2431500
Pipe 5
Diagram Reference: 37
Get Part
63P2431210
Pipe 2
Diagram Reference: 38
Get Part
63P2431310
Pipe 3
Diagram Reference: 39
Get Part
9321030682
O-ring (371)
Diagram Reference: 41
Get Part
9011906M83
Bolt, with washer
Diagram Reference: 42
Get Part
9011906135
Bolt, with washer
Diagram Reference: 43
Get Part
61H2819R31
-
Diagram Reference: 44
Get Part
67F2810001
Tool kit
Diagram Reference: 45
Get Part
63P2819973E0 (UR (E))
O/m f150a/fl150a '06
Diagram Reference: 46
Get Part
63P2819973F0 (UR (F))
O/m f150a/fl150a '06
Diagram Reference: 46
Get Part
63P2819973S0 (UR (ES))
O/m f150a/fl150a '06
Diagram Reference: 46
Get Part
63P2819973G0 (UR (D))
O/m f150a/fl150a '06
Diagram Reference: 46
Get Part
63P2819973D0 (UR (NL))
O/m f150a/fl150a '06
Diagram Reference: 46
Get Part
63P2819973H0 (UR (I))
O/m f150a/fl150a '06
Diagram Reference: 46
Get Part
63P2819983K0 (UR (DK))
O/m f150a/fl150a '06
Diagram Reference: 47
Get Part
63P2819983R0 (UR (GR))
O/m f150a/fl150a '06
Diagram Reference: 47
Get Part
63P2819983P0 (UR (P))
O/m f150a/fl150a '06
Diagram Reference: 47
Get Part
63P2819983N0 (UR (N))
O/m f150a/fl150a '06
Diagram Reference: 47
Get Part
63P2819983M0 (UR (S))
O/m f150a/fl150a '06
Diagram Reference: 47
Get Part
63P2819983L0 (UR (SF))
O/m f150a/fl150a '06
Diagram Reference: 47
Get Part
