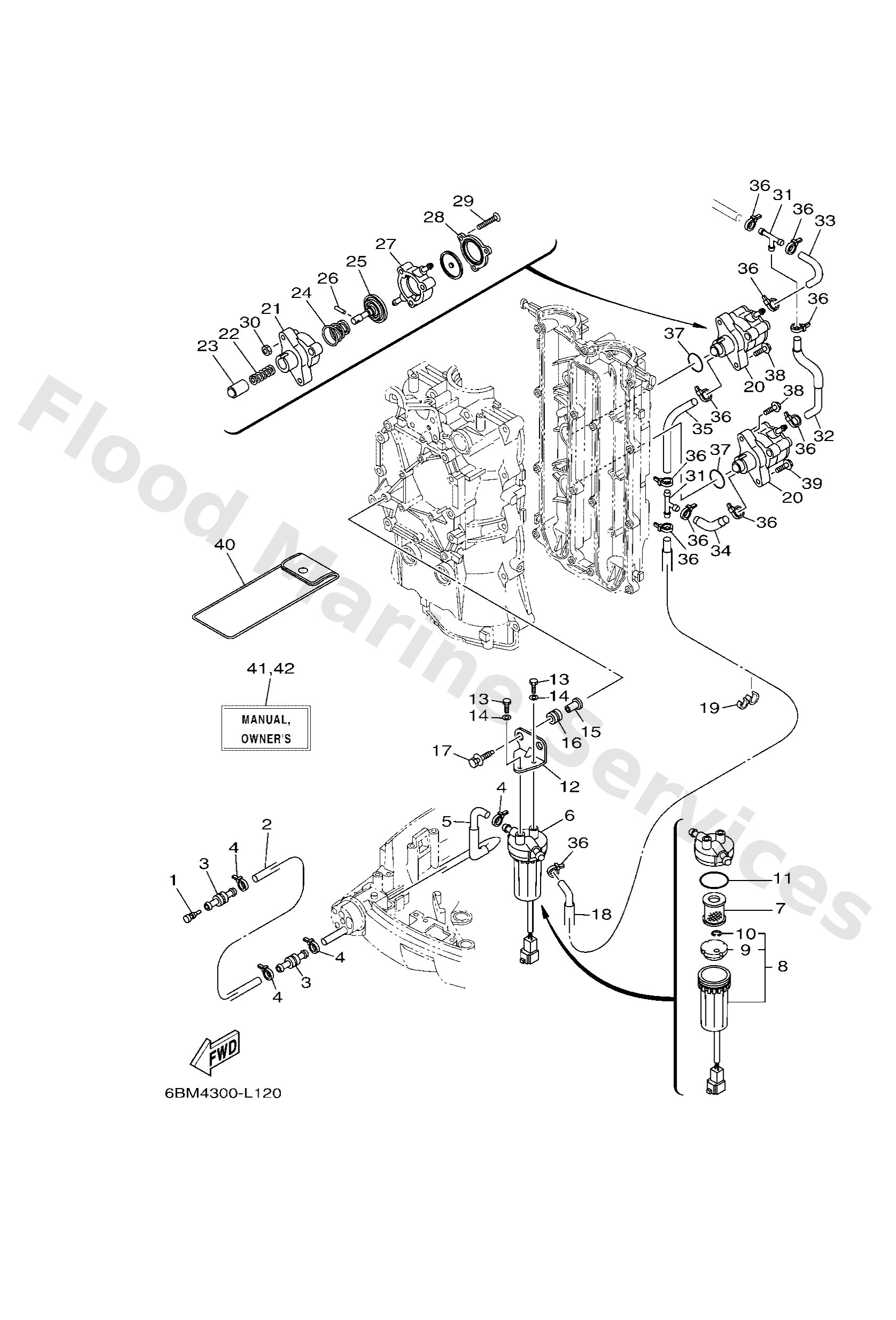

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
9044513511
-
Diagram Reference: 2
Get Part
6R32437710
Pipe, joint 3
Diagram Reference: 3
Get Part
9046511M10
Clamp
Diagram Reference: 4
Get Part
63P2431600
Pipe 6
Diagram Reference: 5
Get Part
6P32456003
Filter assembly
Diagram Reference: 6
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 7
Get Part
6P32456203
Cup, filter (with tag)
Diagram Reference: 8
Get Part
6P32446900
Float, water level
Diagram Reference: 9
Get Part
6P32451900
Clip
Diagram Reference: 10
Get Part
6P32456400
Gasket
Diagram Reference: 11
Get Part
63P2456600
Bracket, filter
Diagram Reference: 12
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 13
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 14
Get Part
9038706289
Collar
Diagram Reference: 15
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 16
Get Part
9011906071
Bolt, with washer
Diagram Reference: 17
Get Part
63P2431130
Pipe, fuel 1
Diagram Reference: 18
Get Part
9046413M34
Clamp(6r3)
Diagram Reference: 19
Get Part
63P2441010
Fuel pump assembly
Diagram Reference: 20
Get Part
68V2441200
Body 1
Diagram Reference: 21
Get Part
68V2445400
Spring
Diagram Reference: 22
Get Part
63P1313100
Plunger
Diagram Reference: 23
Get Part
63P2442300
Spring, diaphragm
Diagram Reference: 24
Get Part
68V2441100
Diaphragm
Diagram Reference: 25
Get Part
68V2437400
Pin
Diagram Reference: 26
Get Part
68V2441310
Body 2
Diagram Reference: 27
Get Part
63P2441400
Body 3
Diagram Reference: 28
Get Part
68V2444400
Screw
Diagram Reference: 29
Get Part
68V2414900
Nut
Diagram Reference: 30
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 31
Get Part
6BM2431400
Pipe 4
Diagram Reference: 32
Get Part
63P2431500
Pipe 5
Diagram Reference: 33
Get Part
63P2431210
Pipe 2
Diagram Reference: 34
Get Part
63P2431310
Pipe 3
Diagram Reference: 35
Get Part
9321030682
O-ring (371)
Diagram Reference: 37
Get Part
9011906M83
Bolt, with washer
Diagram Reference: 38
Get Part
9011906135
Bolt, with washer
Diagram Reference: 39
Get Part
67F2810001 (AP)
Tool kit
Diagram Reference: 40
Get Part
63P281997EE0 (UR (E))
Manual,owner's
Diagram Reference: 41
Get Part
63P281997EF0 (UR (F))
Manual,owner's
Diagram Reference: 41
Get Part
63P281997ES0 (UR (ES))
Manual,owner's
Diagram Reference: 41
Get Part
63P281997EG0 (UR (D))
Manual,owner's
Diagram Reference: 41
Get Part
63P281997ED0 (UR (NL))
Manual,owner's
Diagram Reference: 41
Get Part
63P281997EH0 (UR (I))
Manual,owner's
Diagram Reference: 41
Get Part
63P281998EK0 (UR (DK))
Manual,owner's
Diagram Reference: 42
Get Part
63P281998ER0 (UR (GR))
Manual,owner's
Diagram Reference: 42
Get Part
63P281998EP0 (UR (P))
Manual,owner's
Diagram Reference: 42
Get Part
63P281998EN0 (UR (N))
Manual,owner's
Diagram Reference: 42
Get Part
63P281998EM0 (UR (S))
Manual,owner's
Diagram Reference: 42
Get Part
63P281998EL0 (UR (SF))
Manual,owner's
Diagram Reference: 42
Get Part
