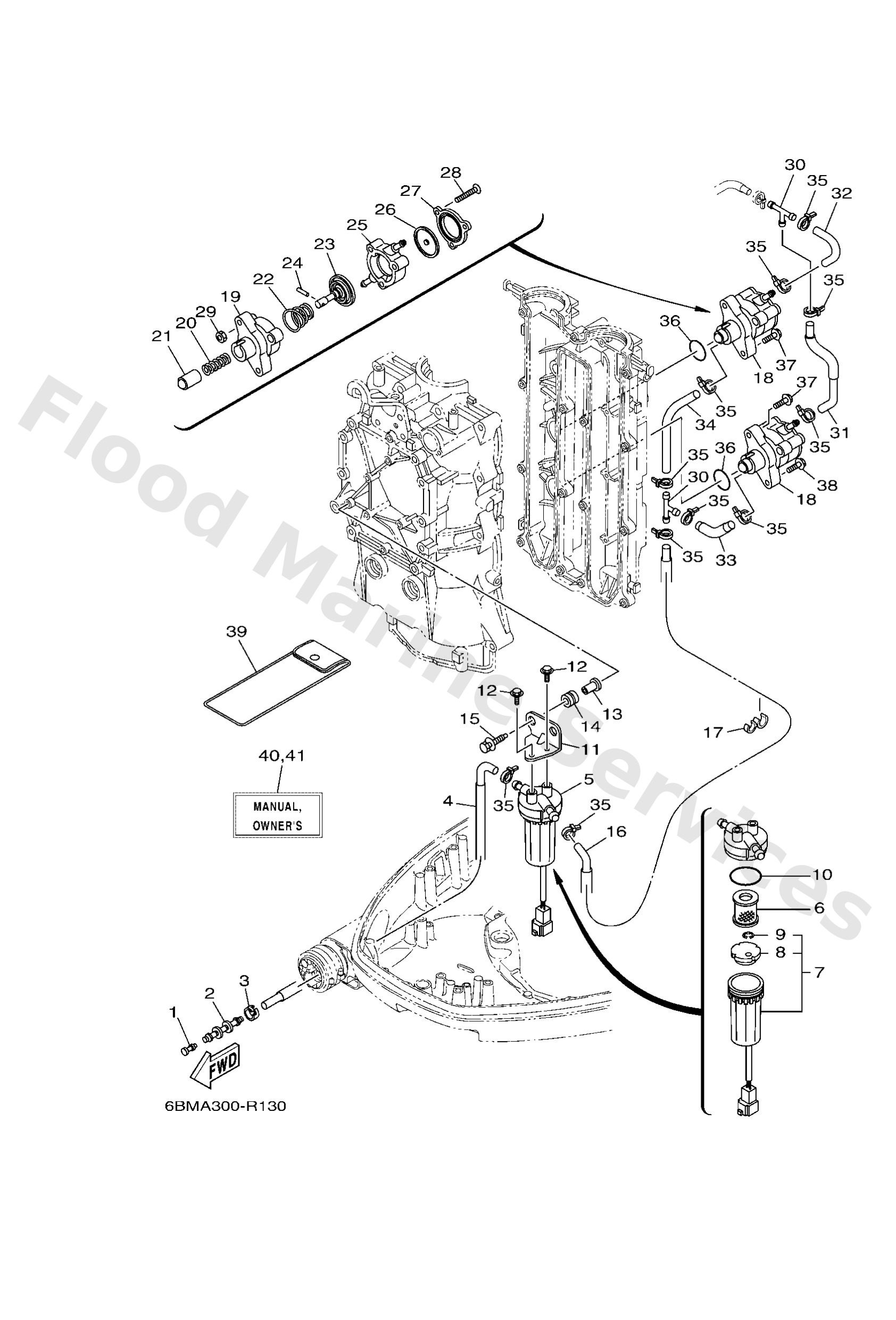

Diagram: FUEL 1

Diagram

Parts List

6898554701
Damper
Diagram Reference: 1
Get Part
6AW2437701
Pipe, joint 2
Diagram Reference: 2
Get Part
6E52435151
Band 1
Diagram Reference: 3
Get Part
63P2431630
Pipe 6
Diagram Reference: 4
Get Part
6P32456004
Filter assembly
Diagram Reference: 5
Get Part
6P32456302
Element, filter (with tag)
Diagram Reference: 6
Get Part
6P32456203
Cup, filter (with tag)
Diagram Reference: 7
Get Part
6P32446900
Float, water level
Diagram Reference: 8
Get Part
6P32451900
Clip
Diagram Reference: 9
Get Part
6P32456400
Gasket
Diagram Reference: 10
Get Part
63P2456600
Bracket, filter
Diagram Reference: 11
Get Part
97E9506514
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Get Part
9038706289
Collar
Diagram Reference: 13
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 14
Get Part
9011906309
Bolt, with washer
Diagram Reference: 15
Get Part
63P2431130
Pipe, fuel 1
Diagram Reference: 16
Get Part
9046413M34
Clamp(6r3)
Diagram Reference: 17
Get Part
63P2441020
Fuel pump assembly
Diagram Reference: 18
Get Part
68V2441200
Body 1
Diagram Reference: 19
Get Part
68V2445400
Spring
Diagram Reference: 20
Get Part
63P1313100
Plunger
Diagram Reference: 21
Get Part
63P2442300
Spring, diaphragm
Diagram Reference: 22
Get Part
68V2441100
Diaphragm
Diagram Reference: 23
Get Part
68V2437400
Pin
Diagram Reference: 24
Get Part
63P2441300
Body 2
Diagram Reference: 25
Get Part
68V2447110
Diaphragm
Diagram Reference: 26
Get Part
63P2441400
Body 3
Diagram Reference: 27
Get Part
68V2444400
Screw
Diagram Reference: 28
Get Part
68V2414900
Nut
Diagram Reference: 29
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 30
Get Part
6BM2431400
Pipe 4
Diagram Reference: 31
Get Part
63P2431500
Pipe 5
Diagram Reference: 32
Get Part
63P2431210
Pipe 2
Diagram Reference: 33
Get Part
63P2431310
Pipe 3
Diagram Reference: 34
Get Part
9046511M10
Clamp
Diagram Reference: 35
Get Part
9321030682
O-ring (371)
Diagram Reference: 36
Get Part
9011906312
Bolt, with washer
Diagram Reference: 37
Get Part
9011906135
Bolt, with washer
Diagram Reference: 38
Get Part
67F2810003 (AP)
Tool kit
Diagram Reference: 39
Get Part
63P281997RE0 (UR (E))
Manual,Owner's
Diagram Reference: 40
Get Part
63P281997RF0 (UR (F))
Manual,Owner's
Diagram Reference: 40
Get Part
63P281997RS0 (UR (ES))
Manual,Owner's
Diagram Reference: 40
Get Part
63P281997RG0 (UR (D))
Manual,Owner's
Diagram Reference: 40
Get Part
63P281997RD0 (UR (NL))
Manual,Owner's
Diagram Reference: 40
Get Part
63P281997RH0 (UR (I))
Manual,Owner's
Diagram Reference: 40
Get Part
63P281998RK0 (UR (DK))
Manual,Owner's
Diagram Reference: 41
Get Part
63P281998RR0 (UR (GR))
Manual,Owner's
Diagram Reference: 41
Get Part
63P281998RP0 (UR (P))
Manual,Owner's
Diagram Reference: 41
Get Part
63P281998RN0 (UR (N))
Manual,Owner's
Diagram Reference: 41
Get Part
63P281998RM0 (UR (S))
Manual,Owner's
Diagram Reference: 41
Get Part
63P281998RL0 (UR (SF))
Manual,Owner's
Diagram Reference: 41
