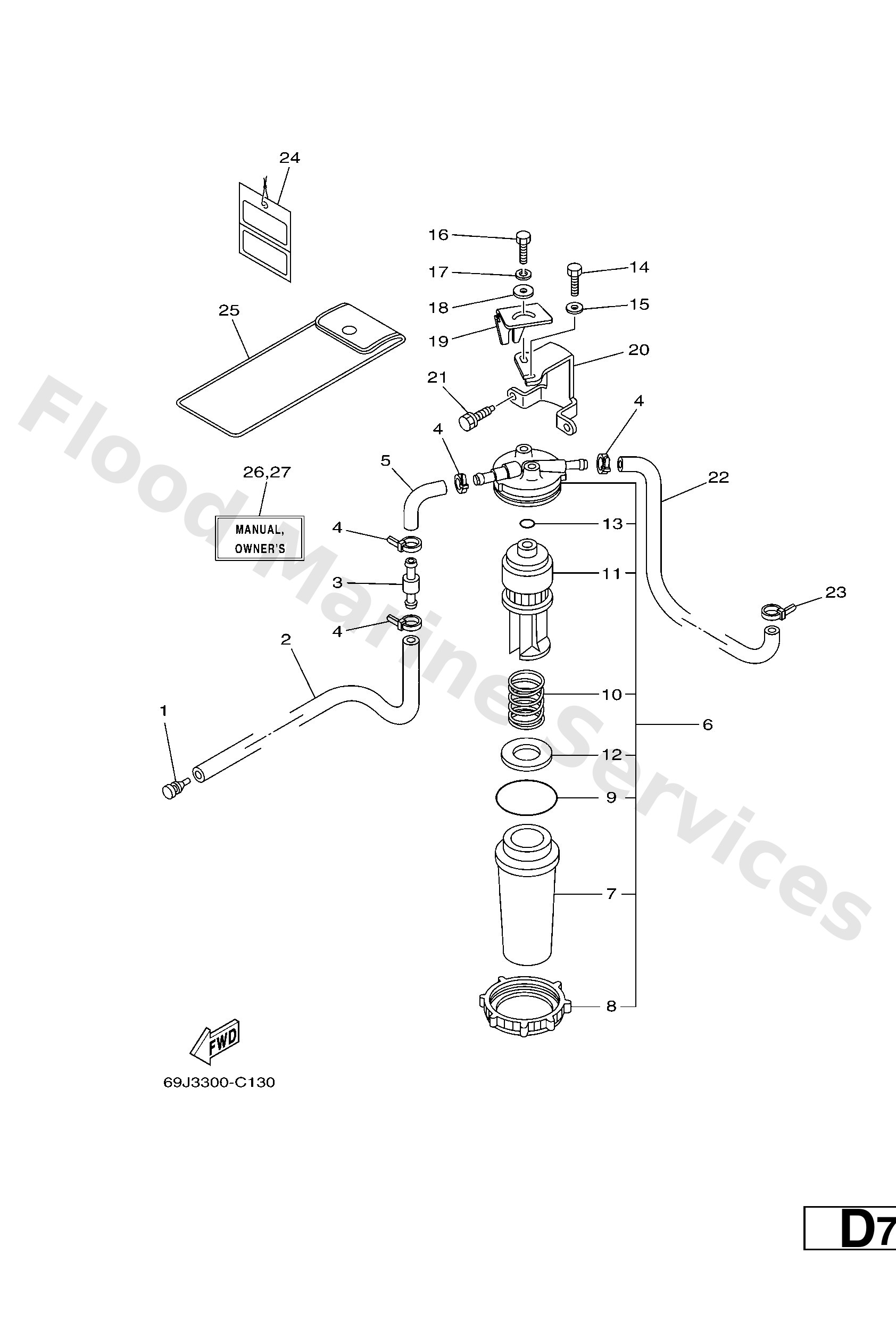

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
9044513004
Hose (l1900)
Diagram Reference: 2
Get Part
6R32437700
Pipe, joint 3
Diagram Reference: 3
Get Part
9046511M10
Clamp
Diagram Reference: 4
Get Part
61A2431100
Pipe, fuel 1
Diagram Reference: 5
Get Part
65L2456000
Filter assembly
Diagram Reference: 6
Get Part
61A2452100
Cup, filter
Diagram Reference: 7
Get Part
65L2453101
Nut
Diagram Reference: 8
Get Part
61A2456400
O-ring
Diagram Reference: 9
Get Part
65L2457700
Spring
Diagram Reference: 10
Get Part
65L2456300
Element, filter
Diagram Reference: 11
Get Part
61A2446900
Float, water level
Diagram Reference: 12
Get Part
65L2456400
Gasket
Diagram Reference: 13
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 14
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 15
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 16
Get Part
9299506100
Washer(6a1)
Diagram Reference: 17
Get Part
9020106068
Washer,plate (6k8)
Diagram Reference: 18
Get Part
65L2455800
Holder, filter
Diagram Reference: 19
Get Part
69J2456600
Bracket, filter
Diagram Reference: 20
Get Part
9011906037
Bolt, with washer
Diagram Reference: 21
Get Part
69J2431300
Pipe 3
Diagram Reference: 22
Get Part
61H2819R31
-
Diagram Reference: 24
Get Part
69J2810001 (AP)
Tool kit
Diagram Reference: 25
Get Part
69J2819975E0 (UR (E))
Om f&fl200a,f&fl225a '06
Diagram Reference: 26
Get Part
69J2819975F0 (UR (F))
Om f&fl200a,f&fl225a '06
Diagram Reference: 26
Get Part
69J2819975G0 (UR (D))
Om f&fl200a,f&fl225a '06
Diagram Reference: 26
Get Part
69J2819975H0 (UR (I))
Om f&fl200a,f&fl225a '06
Diagram Reference: 26
Get Part
69J2819975D0 (UR (NL))
Om f&fl200a,f&fl225a '06
Diagram Reference: 26
Get Part
69J2819975S0 (UR (ES))
Om f&fl200a,f&fl225a '06
Diagram Reference: 26
Get Part
69J2819986K0 (UR (DK))
Om f&fl200a,f&fl225a '06
Diagram Reference: 27
Get Part
69J2819986R0 (UR (GR))
Om f&fl200a,f&fl225a '06
Diagram Reference: 27
Get Part
69J2819986P0 (UR (P))
Om f&fl200a,f&fl225a '06
Diagram Reference: 27
Get Part
69J2819986N0 (UR (N))
Om f&fl200a,f&fl225a '06
Diagram Reference: 27
Get Part
69J2819986M0 (UR (S))
Om f&fl200a,f&fl225a '06
Diagram Reference: 27
Get Part
69J2819986L0 (UR (SF))
Om f&fl200a,f&fl225a '06
Diagram Reference: 27
Get Part
