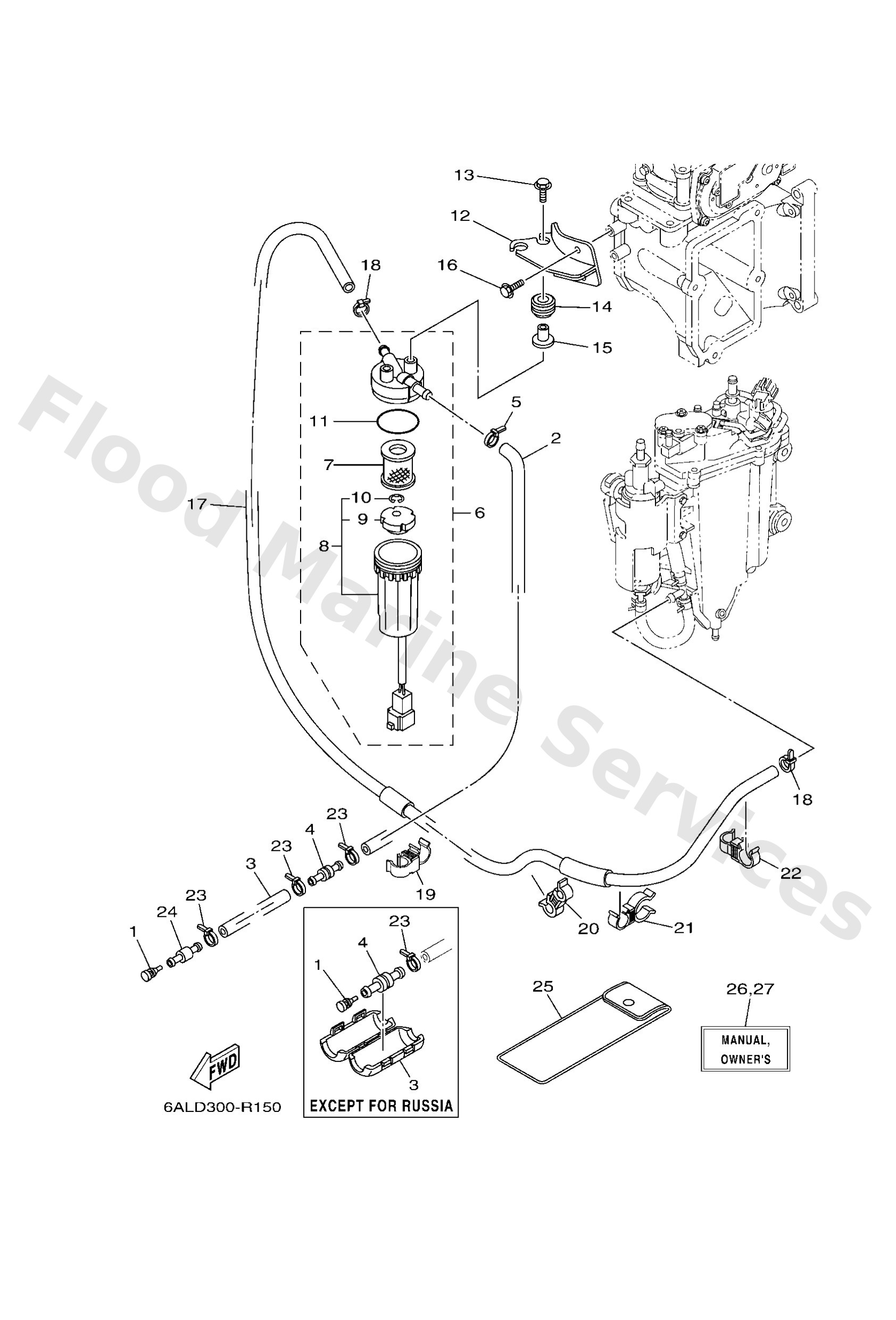

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6P22431400 (FOR RUS)
Pipe 4
Diagram Reference: 2
Get Part
6P22431411 (EXCEPT FOR RUS)
Pipe 4
Diagram Reference: 2
Get Part
9044513511 (FOR RUS)
-
Diagram Reference: 3
Get Part
68V2445200 (EXCEPT FOR RUS)
Cover
Diagram Reference: 3
Get Part
6R32437710
Pipe, joint 3
Diagram Reference: 4
Get Part
9046511M10 (FOR RUS)
Clamp
Diagram Reference: 23
Get Part
6P32456003
Filter assembly
Diagram Reference: 6
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 7
Get Part
6P32456203
Cup, filter (with tag)
Diagram Reference: 8
Get Part
6P32446900
Float, water level
Diagram Reference: 9
Get Part
6P32451900
Clip
Diagram Reference: 10
Get Part
6P32456400
Gasket
Diagram Reference: 11
Get Part
6P22456611
Bracket, filter
Diagram Reference: 12
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 13
Get Part
9048014018
Grommet
Diagram Reference: 14
Get Part
9038706289
Collar
Diagram Reference: 15
Get Part
9759506514
Bolt(gj3)
Diagram Reference: 16
Get Part
6P22431350 (FOR RUS)
Pipe 3
Diagram Reference: 17
Get Part
6P22431360 (EXCEPT FOR RUS)
Pipe 3
Diagram Reference: 17
Get Part
9046412009
Clamp
Diagram Reference: 19
Get Part
9046412010
Clamp
Diagram Reference: 20
Get Part
9046420024
Clamp
Diagram Reference: 21
Get Part
6R32437700
Pipe, joint 3
Diagram Reference: 24
Get Part
69J2810001 (AP)
Tool kit
Diagram Reference: 25
Get Part
6P2281997ES0 (UR (ES))
Manual,owner's
Diagram Reference: 26
Get Part
6P2281997EH0 (UR (I))
Manual,owner's
Diagram Reference: 26
Get Part
6P2281997ED0 (UR (NL))
Manual,owner's
Diagram Reference: 26
Get Part
6P2281997EG0 (UR (D))
Manual,owner's
Diagram Reference: 26
Get Part
6P2281997EF0 (UR (F))
Manual,owner's
Diagram Reference: 26
Get Part
6P2281997EE0 (UR (E))
Manual,owner's
Diagram Reference: 26
Get Part
6P2281998EK0 (UR (DK))
Manual,owner's
Diagram Reference: 27
Get Part
6P2281998ER0 (UR (GR))
Manual,owner's
Diagram Reference: 27
Get Part
6P2281998EP0 (UR (P))
Manual,owner's
Diagram Reference: 27
Get Part
6P2281998EN0 (UR (N))
Manual,owner's
Diagram Reference: 27
Get Part
6P2281998EM0 (UR (S))
Manual,owner's
Diagram Reference: 27
Get Part
6P2281998EL0 (UR (SF))
Manual,owner's
Diagram Reference: 27
