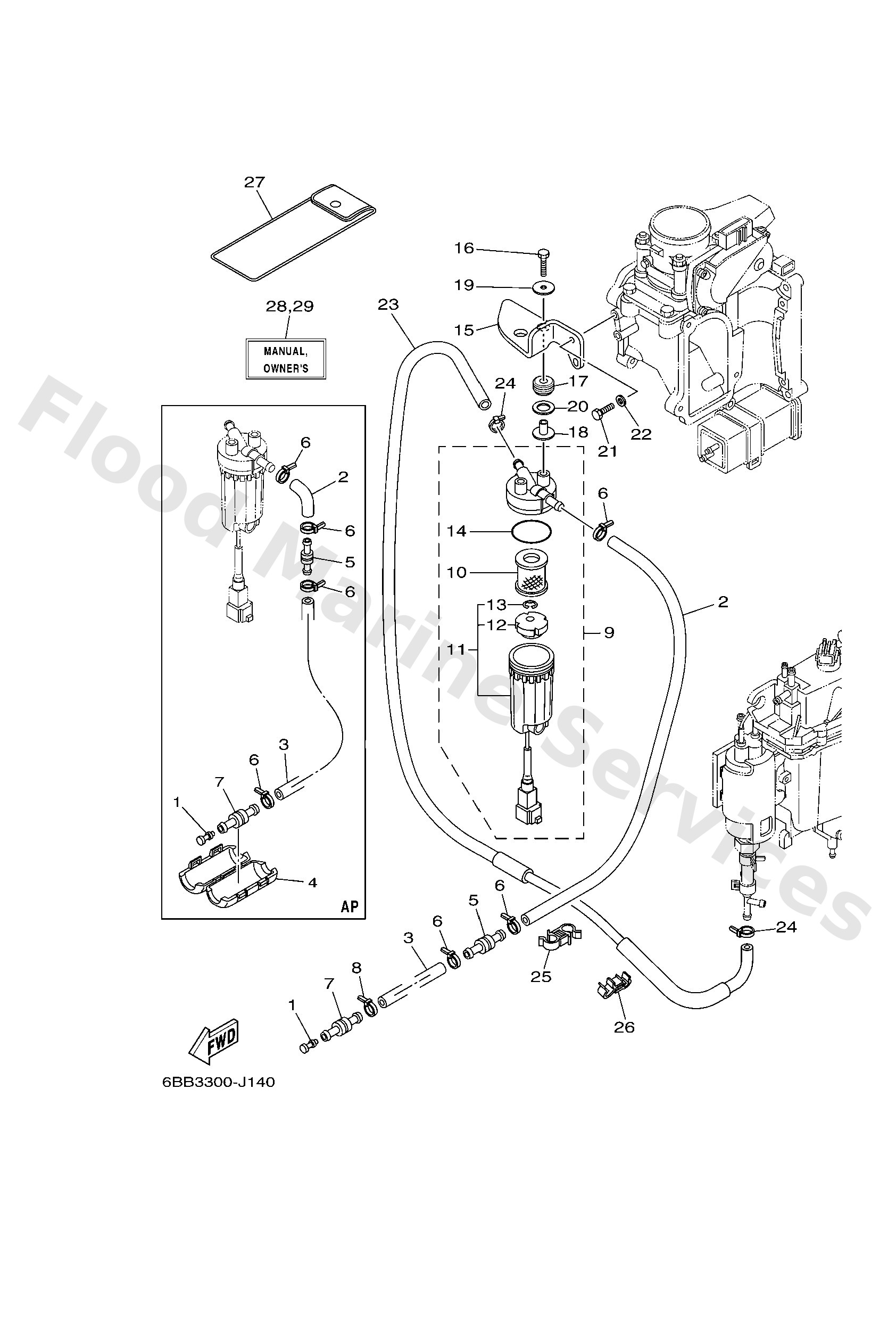

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6P22431400 (FOR EUR)
Pipe 4
Diagram Reference: 2
Get Part
61A2431100 (AP)
Pipe, fuel 1
Diagram Reference: 2
Get Part
9044513511 (FOR EUR)
Hose (L2000)
Diagram Reference: 3
Get Part
9044513013 (AP)
-
Diagram Reference: 3
Get Part
68V2445200 (AP)
Cover
Diagram Reference: 4
Get Part
6R32437710 (AP)
Pipe, joint 3
Diagram Reference: 7
Get Part
9046511M10 (FOR EUR)
Clamp
Diagram Reference: 6
Get Part
6R32437700 (FOR EUR)
Pipe, joint 3
Diagram Reference: 7
Get Part
6P32456001
Filter assembly
Diagram Reference: 9
Get Part
6P32456300
Element, filter (with tag)
Diagram Reference: 10
Get Part
6P32456201
Cup, filter (with tag)
Diagram Reference: 11
Get Part
6P32446900
Float, water level
Diagram Reference: 12
Get Part
6P32451900
Clip
Diagram Reference: 13
Get Part
6P32456400
Gasket
Diagram Reference: 14
Get Part
6BB2456600
Bracket, filter
Diagram Reference: 15
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 16
Get Part
69L8551600
Spacer
Diagram Reference: 17
Get Part
9038706M03
Collar (676)
Diagram Reference: 18
Get Part
9020106101
Washer, plate
Diagram Reference: 19
Get Part
9020115021
Washer, plate
Diagram Reference: 20
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 21
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 22
Get Part
6P22431310
Pipe 3
Diagram Reference: 23
Get Part
9046412009
Clamp
Diagram Reference: 25
Get Part
9046412010
Clamp
Diagram Reference: 26
Get Part
69J2810001
Tool kit
Diagram Reference: 27
Get Part
6P22819976F0 (UR (F))
Manual,owner's
Diagram Reference: 28
Get Part
6P22819976H0 (UR (I))
Manual,owner's
Diagram Reference: 28
Get Part
6P22819976D0 (UR (NL))
Manual,owner's
Diagram Reference: 28
Get Part
6P22819976G0 (UR (D))
Manual,owner's
Diagram Reference: 28
Get Part
6P22819976S0 (UR (ES))
Manual,owner's
Diagram Reference: 28
Get Part
6P22819976E0 (UR (E))
Manual,owner's
Diagram Reference: 28
Get Part
6P22819986K0 (UR (DK))
Manual,owner's
Diagram Reference: 29
Get Part
6P22819986R0 (UR (GR))
Manual,owner's
Diagram Reference: 29
Get Part
6P22819986P0 (UR (P))
Manual,owner's
Diagram Reference: 29
Get Part
6P22819986N0 (UR (N))
Manual,owner's
Diagram Reference: 29
Get Part
6P22819986M0 (UR (S))
Manual,owner's
Diagram Reference: 29
Get Part
6P22819986L0 (UR (SF))
Manual,owner's
Diagram Reference: 29
Get Part
