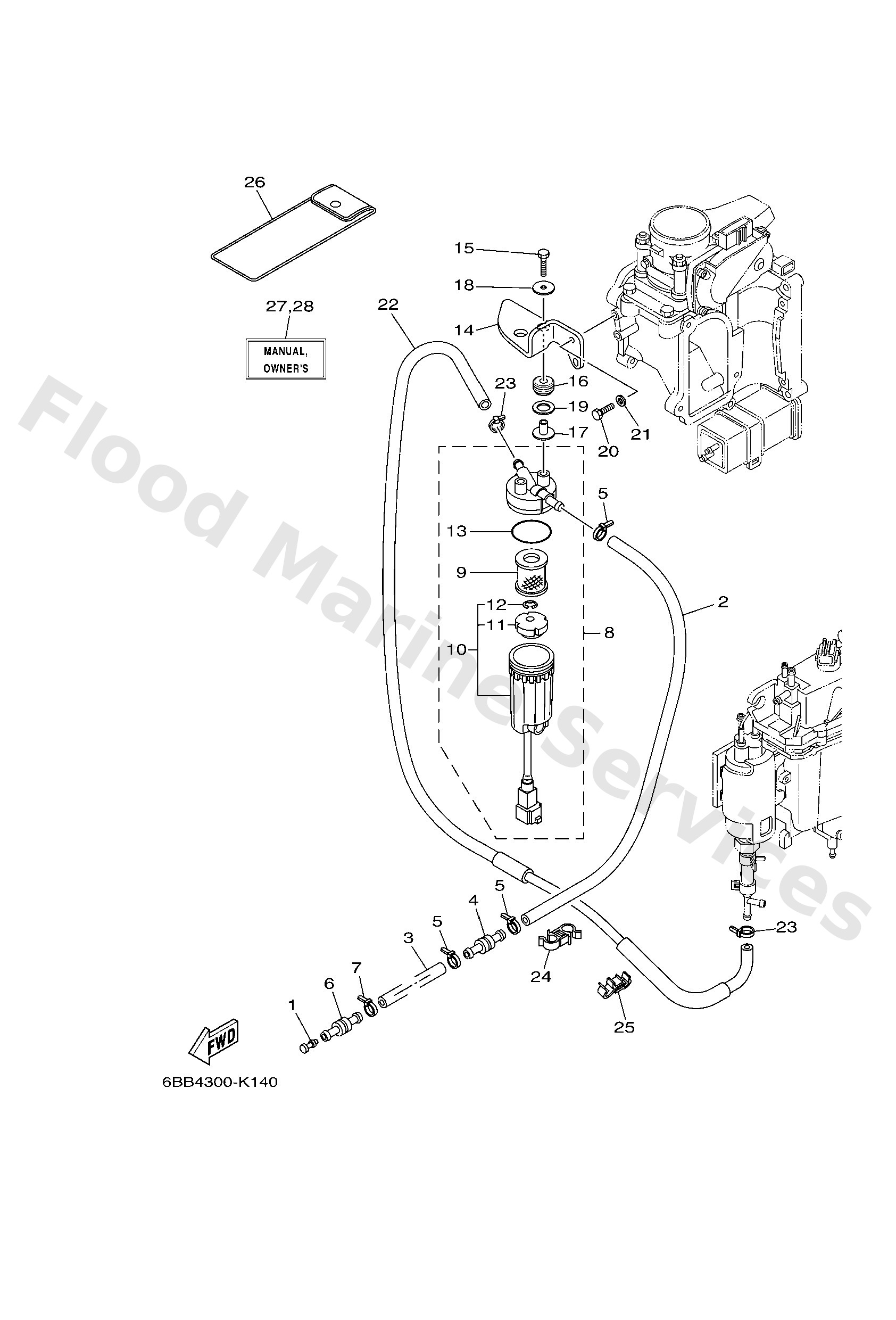

Diagram: FUEL 1

Diagram

Parts List

6898554700

Damper

Diagram Reference: 1

6P22431400

Pipe 4

Diagram Reference: 2

9044513511

Hose (L2000)

Diagram Reference: 3

6R32437710

Pipe, joint 3

Diagram Reference: 4

9046511M10

Clamp

Diagram Reference: 5

6R32437700

Pipe, joint 3

Diagram Reference: 6

6P32456001

Filter assembly

Diagram Reference: 8

6P32456300

Element, filter (with tag)

Diagram Reference: 9

6P32456202

Cup, filter (with tag)

Diagram Reference: 10

6P32446900

Float, water level

Diagram Reference: 11

6P32451900

Clip

Diagram Reference: 12

6P32456400

Gasket

Diagram Reference: 13

6BB2456600

Bracket, filter

Diagram Reference: 14

9709506030

Bolt(jf7)

Diagram Reference: 15

69L8551600

Spacer

Diagram Reference: 16

9038706M03

Collar (676)

Diagram Reference: 17

9020106101

Washer, plate

Diagram Reference: 18

9020115021

Washer, plate

Diagram Reference: 19

9709506016

Bolt, hexagon deep recess

Diagram Reference: 20

9299506600

Washer, plain (646)

Diagram Reference: 21

6P22431310

Pipe 3

Diagram Reference: 22

9046412009

Clamp

Diagram Reference: 24

9046412010

Clamp

Diagram Reference: 25

69J2810001 (AP)

Tool kit

Diagram Reference: 26

6P22819977E0 (UR (E))

Manual,owner's

Diagram Reference: 27

6P22819977G0 (UR (D))

Manual,owner's

Diagram Reference: 27

6P22819977H0 (UR (I))

Manual,owner's

Diagram Reference: 27

6P22819977D0 (UR (NL))

Manual,owner's

Diagram Reference: 27

6P22819977S0 (UR (ES))

Manual,owner's

Diagram Reference: 27

6P22819977F0 (UR (F))

Manual,owner's

Diagram Reference: 27

6P22819987K0 (UR (DK))

Manual,owner's

Diagram Reference: 28

6P22819987R0 (UR (GR))

Manual,owner's

Diagram Reference: 28

6P22819987P0 (UR (P))

Manual,owner's

Diagram Reference: 28

6P22819987N0 (UR (N))

Manual,owner's

Diagram Reference: 28

6P22819987M0 (UR (S))

Manual,owner's

Diagram Reference: 28

6P22819987L0 (UR (SF))

Manual,owner's

Diagram Reference: 28
