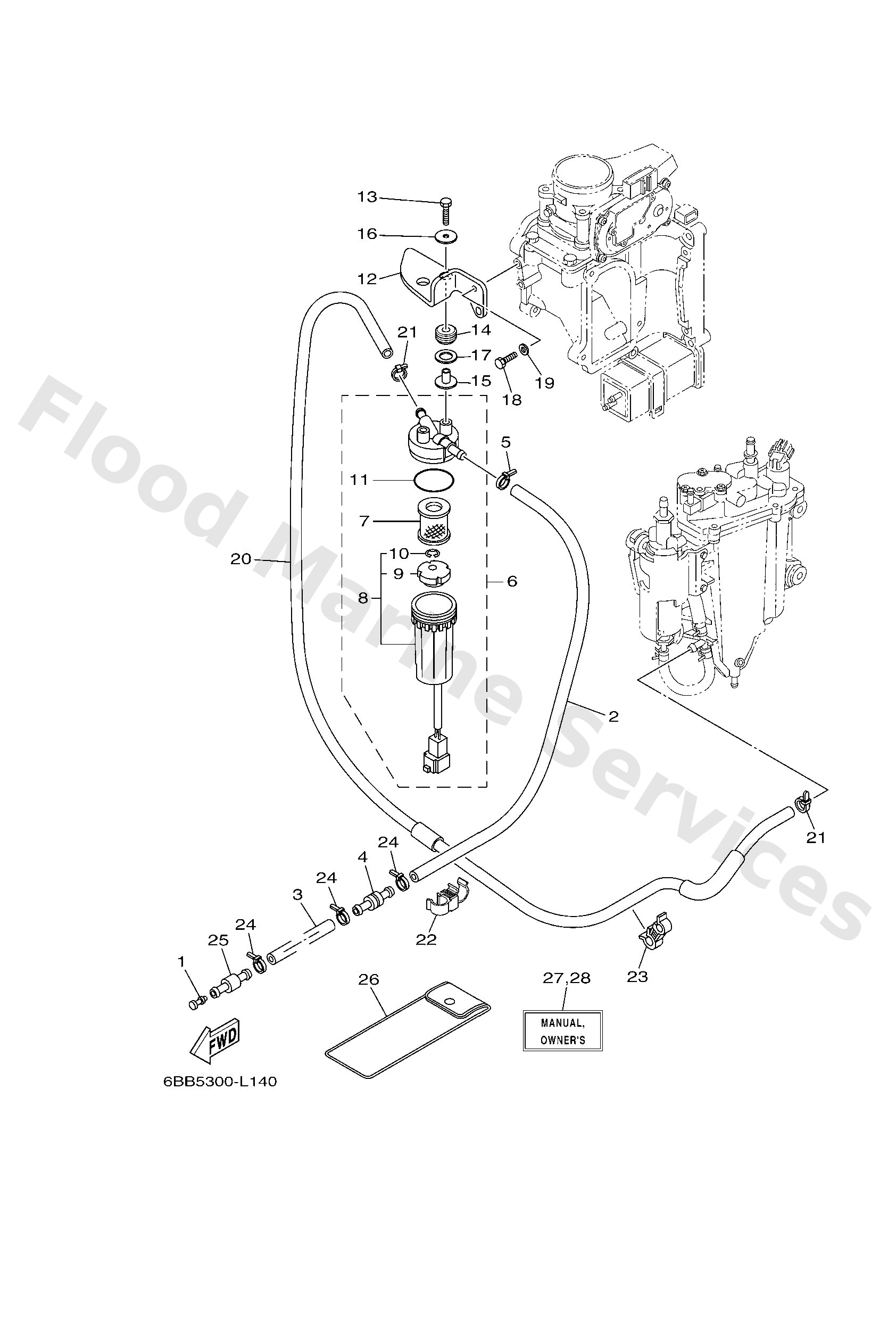

Parts List
Damper
Diagram Reference: 1
Pipe 4
Diagram Reference: 2
Pipe, joint 3
Diagram Reference: 4
Clamp
Diagram Reference: 5
Filter assembly
Diagram Reference: 6
Element, filter (with tag)
Diagram Reference: 7
Cup, filter (with tag)
Diagram Reference: 8
Float, water level
Diagram Reference: 9
Clip
Diagram Reference: 10
Gasket
Diagram Reference: 11
Bracket, filter
Diagram Reference: 12
Bolt(jf7)
Diagram Reference: 13
Spacer
Diagram Reference: 14
Collar (676)
Diagram Reference: 15
Washer, plate
Diagram Reference: 16
Washer, plate
Diagram Reference: 17
Bolt, hexagon deep recess
Diagram Reference: 18
Washer, plain (646)
Diagram Reference: 19
Pipe 3
Diagram Reference: 20
Clamp
Diagram Reference: 22
Clamp
Diagram Reference: 23
Pipe, joint 3
Diagram Reference: 25
Tool kit
Diagram Reference: 26
Manual,Owner's
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 27
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
O/m f200cetx/225/250aetx '12
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
Manual,Owner's
Diagram Reference: 28
