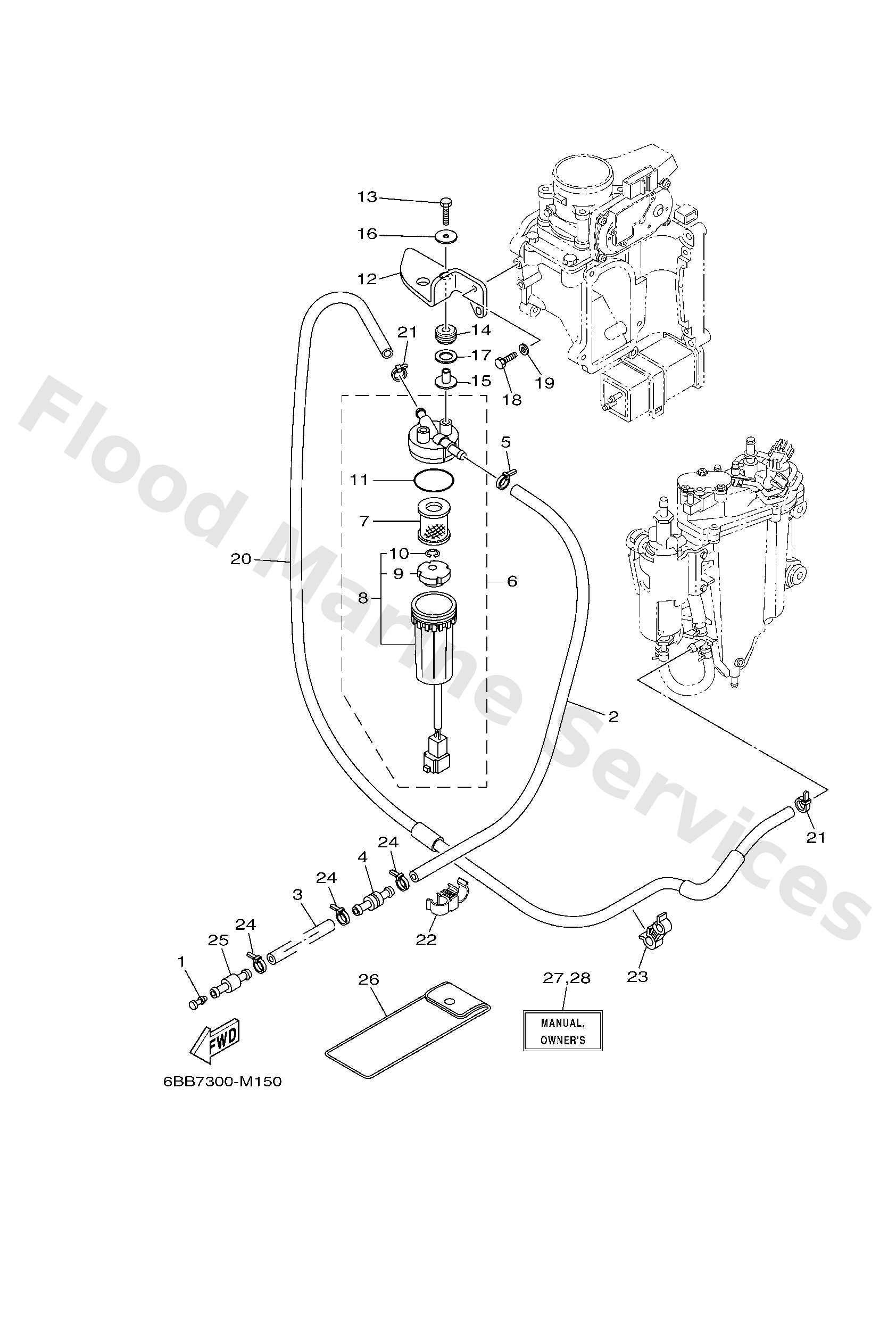

Diagram: FUEL 1

Diagram

Parts List

6898554700

Damper

Diagram Reference: 1

6P22431400

Pipe 4

Diagram Reference: 2

9044513511

-

Diagram Reference: 3

6R32437710

Pipe, joint 3

Diagram Reference: 4

9046511M10

Clamp

Diagram Reference: 5

6P32456003

Filter assembly

Diagram Reference: 6

6P32456301

Element, filter (with tag)

Diagram Reference: 7

6P32456203

Cup, filter (with tag)

Diagram Reference: 8

6P32446900

Float, water level

Diagram Reference: 9

6P32451900

Clip

Diagram Reference: 10

6P32456400

Gasket

Diagram Reference: 11

6BB2456600

Bracket, filter

Diagram Reference: 12

9709506030

Bolt(jf7)

Diagram Reference: 13

69L8551600

Spacer

Diagram Reference: 14

9038706M03

Collar (676)

Diagram Reference: 15

9020106101

Washer, plate

Diagram Reference: 16

9020115021

Washer, plate

Diagram Reference: 17

9709506016

Bolt, hexagon deep recess

Diagram Reference: 18

9299506600

Washer, plain (646)

Diagram Reference: 19

6P22431330

Pipe 3

Diagram Reference: 20

9046412009

Clamp

Diagram Reference: 22

9046412010

Clamp

Diagram Reference: 23

6R32437700

Pipe, joint 3

Diagram Reference: 25

69J2810001 (AP)

Tool kit

Diagram Reference: 26

6P22819979E0 (UR (E))

Manual,owner's

Diagram Reference: 27

6P22819979G0 (UR (D))

Manual,owner's

Diagram Reference: 27

6P22819979F0 (UR (F))

Manual,owner's

Diagram Reference: 27

6P22819979S0 (UR (ES))

Manual,owner's

Diagram Reference: 27

6P22819979D0 (UR (NL))

Manual,owner's

Diagram Reference: 27

6P22819979H0 (UR (I))

Manual,owner's

Diagram Reference: 27

6P22819989L0 (UR (SF))

Manual,owner's

Diagram Reference: 28

6P22819989M0 (UR (S))

Manual,owner's

Diagram Reference: 28

6P22819989N0 (UR (N))

Manual,owner's

Diagram Reference: 28

6P22819989P0 (UR (P))

Manual,owner's

Diagram Reference: 28

6P22819989R0 (UR (GR))

Manual,owner's

Diagram Reference: 28

6P22819989K0 (UR (DK))

Manual,owner's

Diagram Reference: 28
