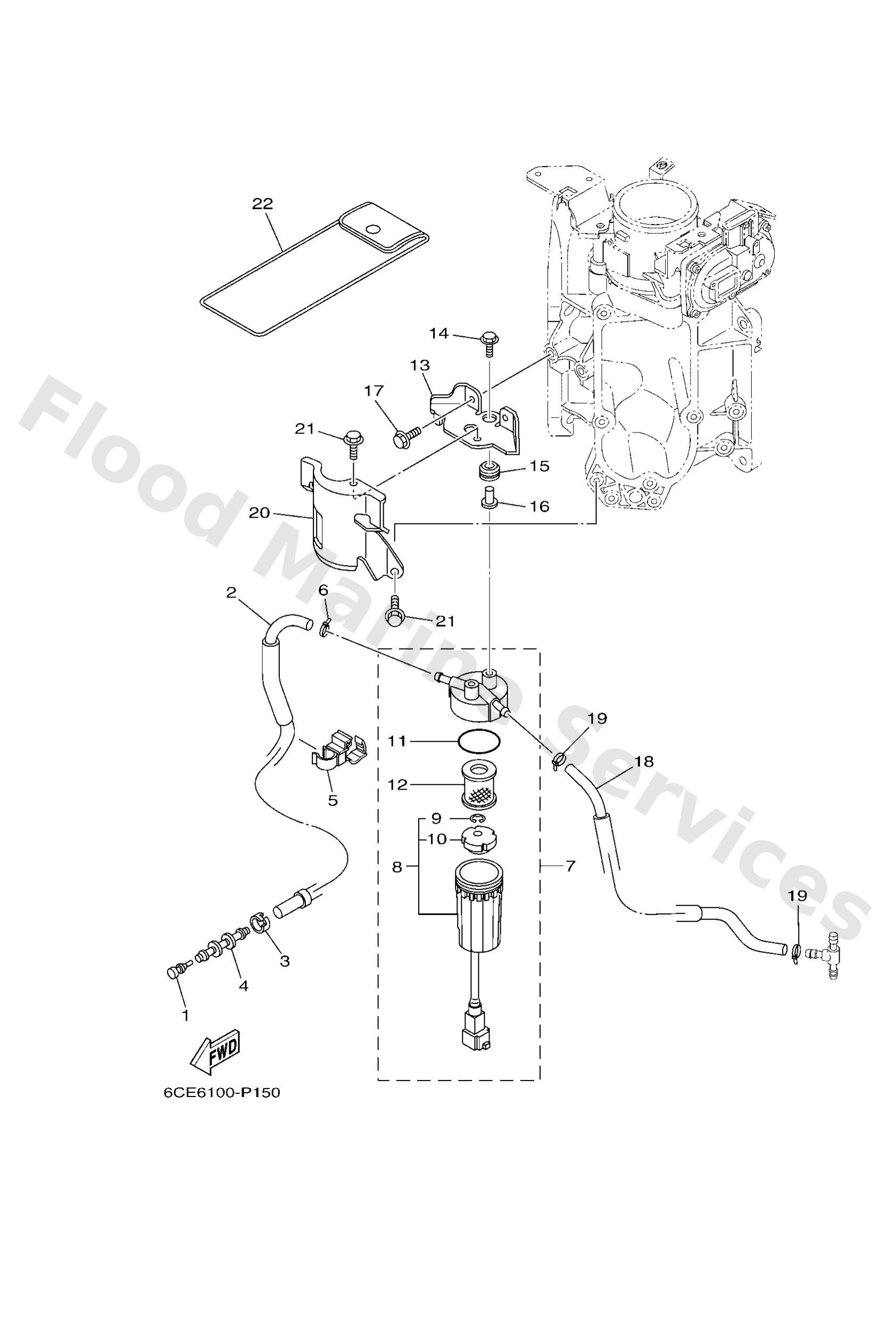

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6CB2431411
Pipe 4
Diagram Reference: 2
Get Part
6E52435151
Band 1
Diagram Reference: 3
Get Part
6AW2437701
Pipe, joint 2
Diagram Reference: 4
Get Part
9046412012
Clamp
Diagram Reference: 5
Get Part
9046511M10
Clamp
Diagram Reference: 6
Get Part
6P32456022
Filter assembly
Diagram Reference: 7
Get Part
6P32456221
Cup, filter (with tag)
Diagram Reference: 8
Get Part
6P32451900
Clip
Diagram Reference: 9
Get Part
6P32446900
Float, water level
Diagram Reference: 10
Get Part
6P32456400
Gasket
Diagram Reference: 11
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 12
Get Part
6CB2456600
Bracket, filter
Diagram Reference: 13
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 14
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 15
Get Part
9038706289
Collar
Diagram Reference: 16
Get Part
95D9506016
Bolt, flange deep recess
Diagram Reference: 17
Get Part
6CB2431310
Pipe 3
Diagram Reference: 18
Get Part
6CB2459601
Cover
Diagram Reference: 20
Get Part
95D9506014
Bolt, flange deep recess
Diagram Reference: 21
Get Part
69J2810002 (AP)
-
Diagram Reference: 22
Get Part
