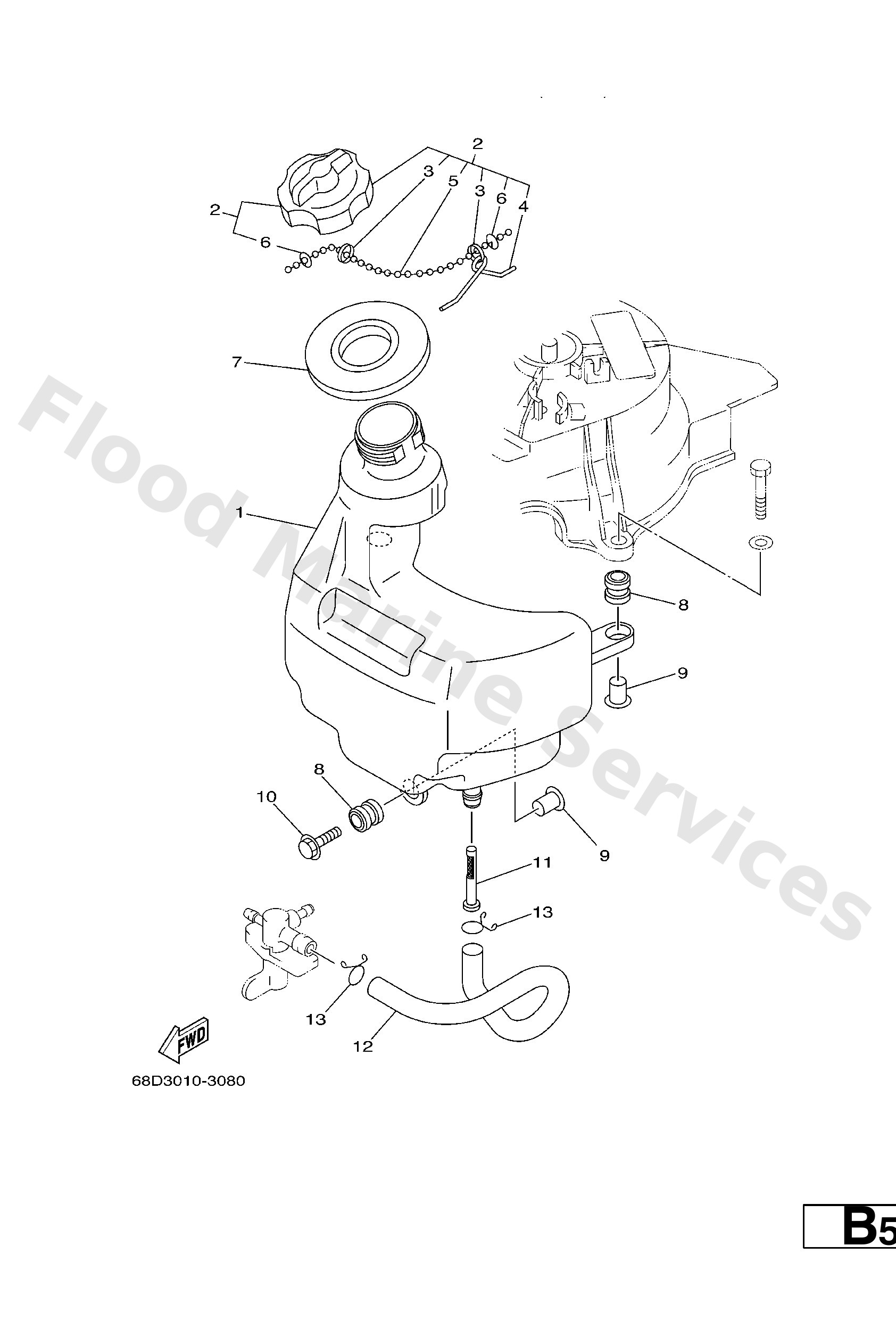

Diagram: FUEL 1

Diagram

Parts List

68D−F4111−00
8−
Diagram Reference: 1
Get Part
67D−24610−02
Cap assembly
Diagram Reference: 2
Get Part
90501−10260
Spring, safety 6152463500
Diagram Reference: 3
Get Part
624−24634−00
Hook, chain ball
Diagram Reference: 4
Get Part
69M−24633−00
Chain, ball
Diagram Reference: 5
Get Part
6H1−21757−00
Washer, special 1
Diagram Reference: 6
Get Part
6L5−24641−00
Gasket, cap 1
Diagram Reference: 7
Get Part
6A0−82317−00
Damper, ignition coil
Diagram Reference: 8
Get Part
624−42542−00
Collar
Diagram Reference: 9
Get Part
90119−06M88
Bolt, with washer
Diagram Reference: 10
Get Part
6L5−24251−00
Strainer 1
Diagram Reference: 11
Get Part
68D−F4311−00
8−
Diagram Reference: 12
Get Part
90467−13M13
Clip(6m6)
Diagram Reference: 13
Get Part
