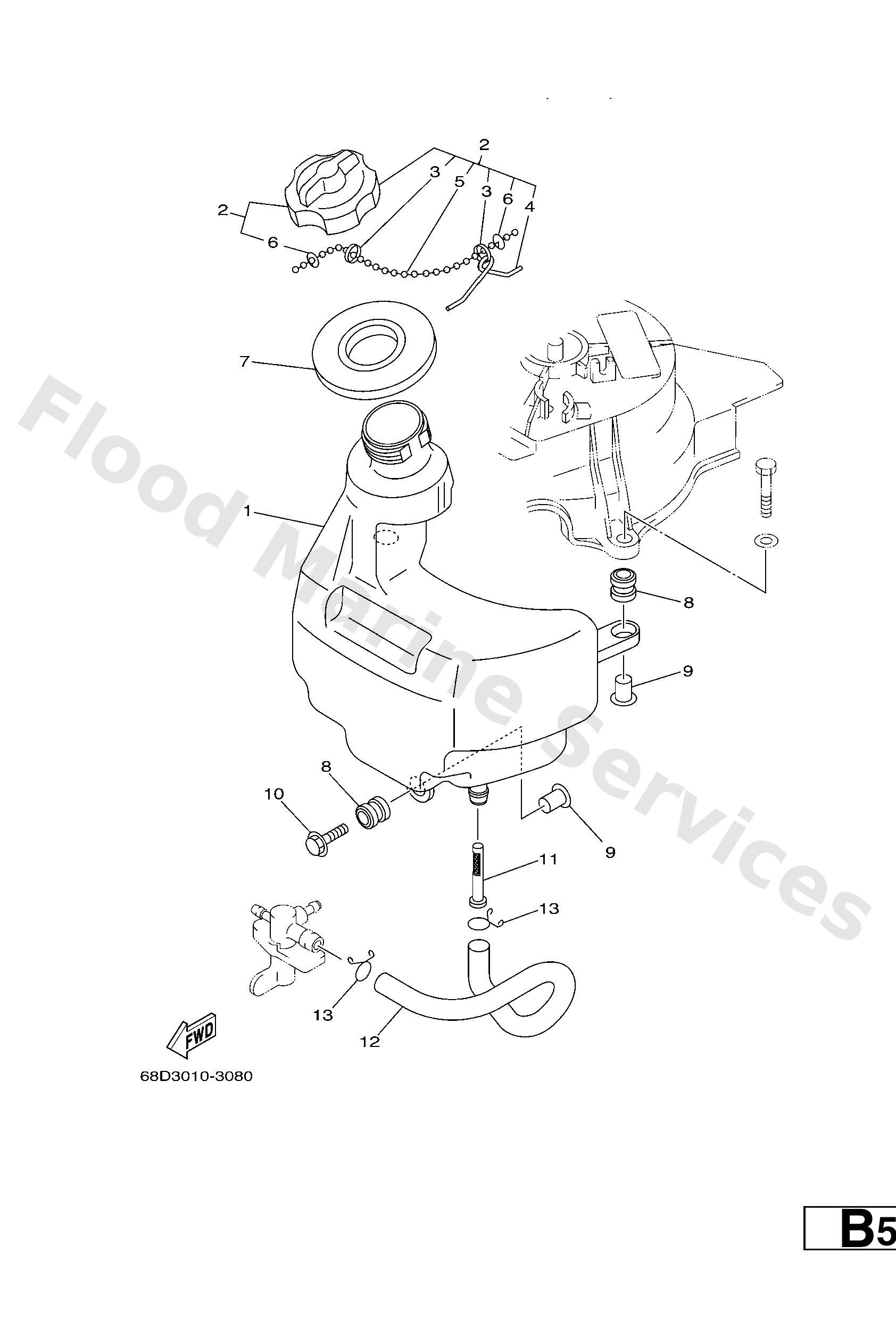

Diagram: FUEL 1

Diagram

Parts List

68DF411100
Tank, Fuel
Diagram Reference: 1
Get Part
67D2461003
Cap assembly
Diagram Reference: 2
Get Part
9050110260
Spring, safety 6152463500
Diagram Reference: 3
Get Part
6242463400
Hook, chain ball
Diagram Reference: 4
Get Part
69M2463300
Chain, ball
Diagram Reference: 5
Get Part
67D2175700
Washer, special 1
Diagram Reference: 6
Get Part
6L52464100
Gasket, cap 1
Diagram Reference: 7
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 8
Get Part
9038706119
Collar
Diagram Reference: 9
Get Part
9011906M88
Bolt, with washer
Diagram Reference: 10
Get Part
6L52425100
Strainer 1
Diagram Reference: 11
Get Part
68DF431100
Pipe, Fuel 1
Diagram Reference: 12
Get Part
9046713M13
Clip(6m6)
Diagram Reference: 13
