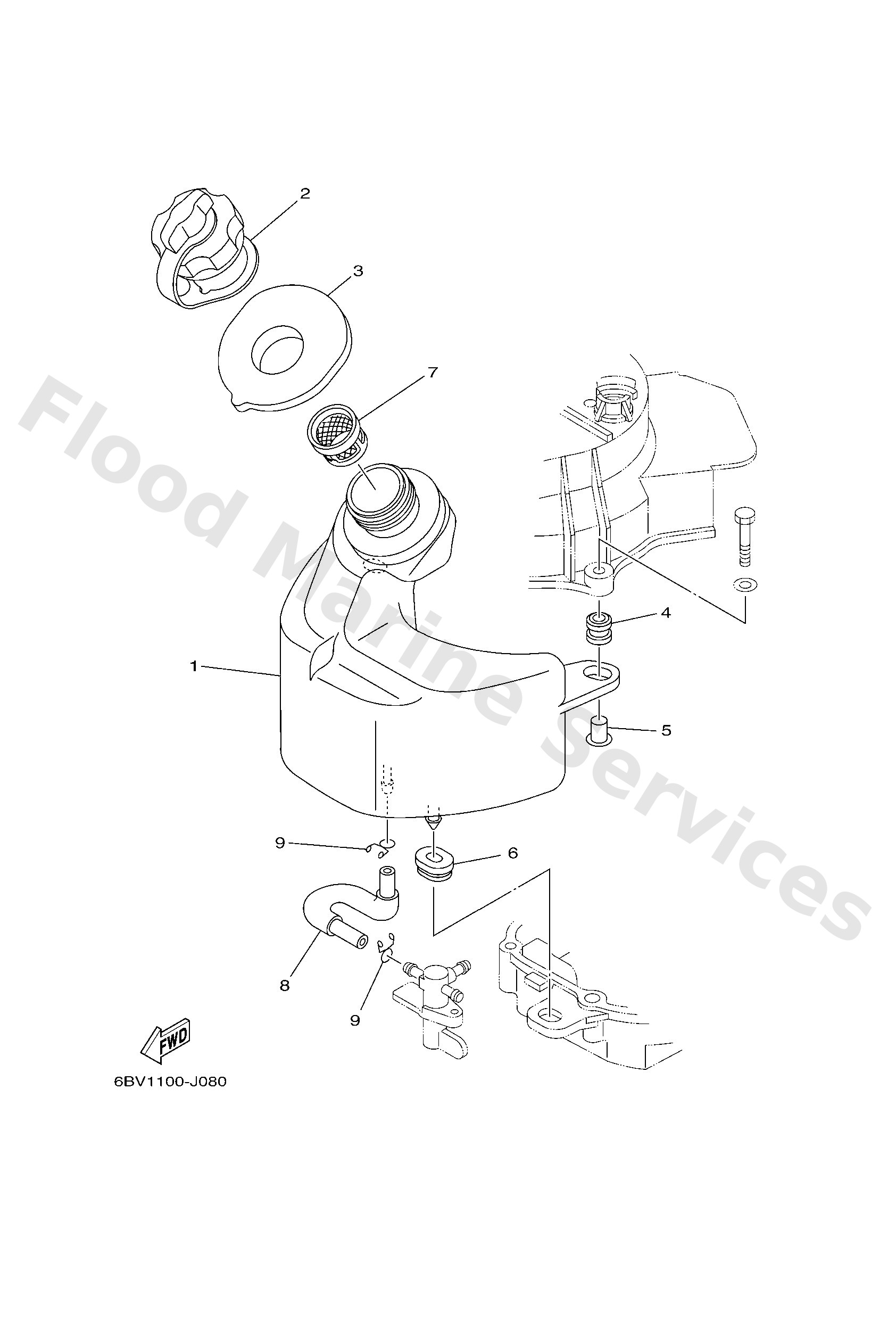

Diagram: FUEL 1
Parts List
Tank, fuel
Diagram Reference: 1
Cap assembly
Diagram Reference: 2
Gasket, cap 1
Diagram Reference: 3
Damper, ignition coil
Diagram Reference: 4
Collar
Diagram Reference: 5
Grommet(4bh)
Diagram Reference: 6
Strainer
Diagram Reference: 7
Pipe, fuel 1
Diagram Reference: 8
Clip(6k8)
Diagram Reference: 9
