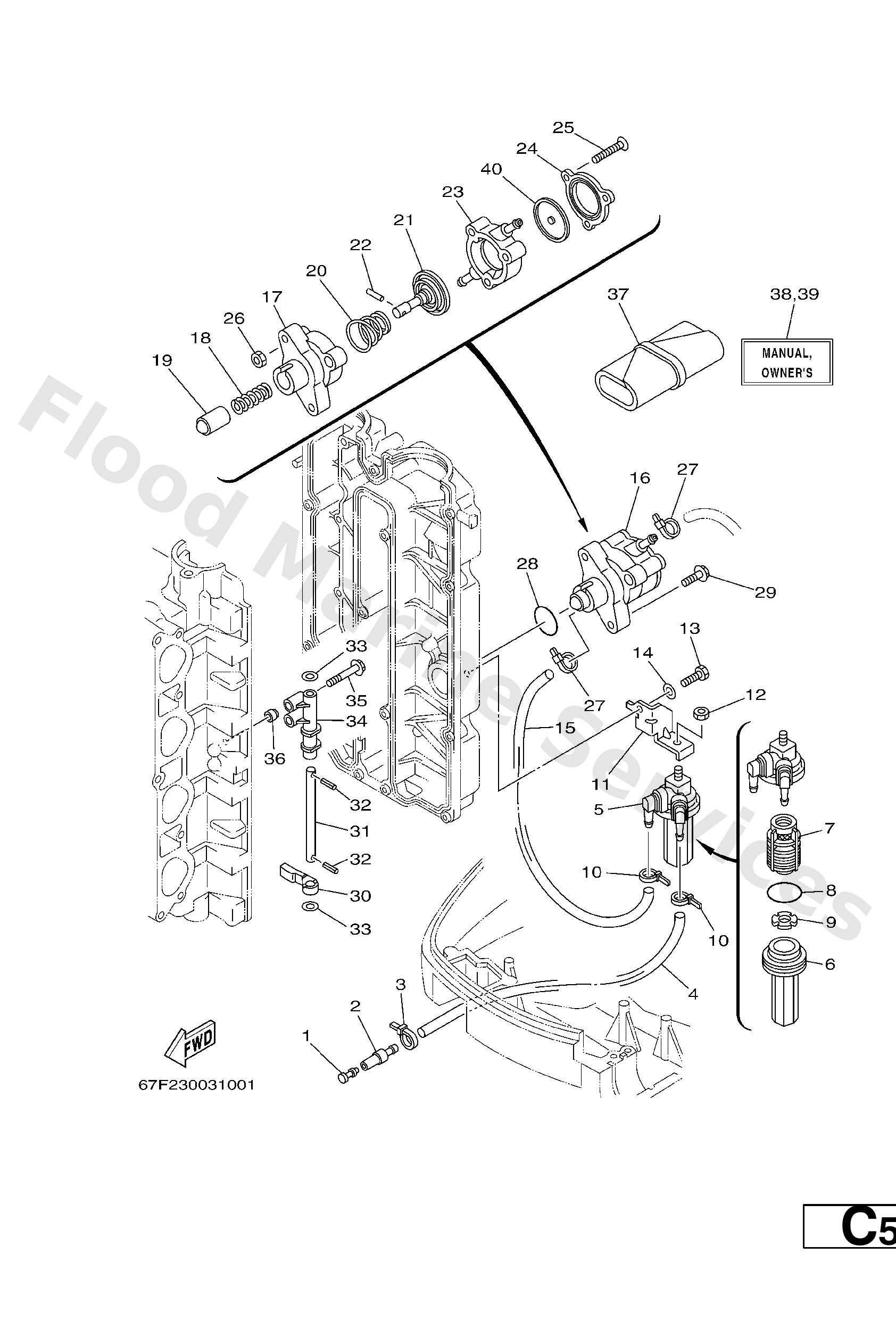

Parts List
Damper
Diagram Reference: 1
Pipe, joint 3
Diagram Reference: 2
Clamp
Diagram Reference: 3
Hose (l950)
Diagram Reference: 4
Filter assembly
Diagram Reference: 5
Cup, filter
Diagram Reference: 6
Element, filter
Diagram Reference: 7
O-ring(1wg)
Diagram Reference: 8
Float, water level
Diagram Reference: 9
Bracket, Filter
Diagram Reference: 11
Nut (661)
Diagram Reference: 12
Bolt, hexagon deep recess
Diagram Reference: 13
Washer, plain (646)
Diagram Reference: 14
Pipe, fuel 1
Diagram Reference: 15
Fuel pump assembly
Diagram Reference: 16
Body 1
Diagram Reference: 17
Spring
Diagram Reference: 18
Plunger
Diagram Reference: 19
Spring, diaphragm
Diagram Reference: 20
Diaphragm
Diagram Reference: 21
Pin
Diagram Reference: 22
Body 2
Diagram Reference: 23
Body 3
Diagram Reference: 24
Screw
Diagram Reference: 25
Nut
Diagram Reference: 26
O-ring (371)
Diagram Reference: 28
Bolt, with washer
Diagram Reference: 29
Lever, fuel change
Diagram Reference: 30
Shaft
Diagram Reference: 31
Washer plate (682)
Diagram Reference: 33
Bracket, fuel pump
Diagram Reference: 34
Bolt, with washer
Diagram Reference: 35
Pin, dowel
Diagram Reference: 36
Tool kit
Diagram Reference: 37
O/m f80aet/f100aet '03 e, f, s
Diagram Reference: 38
O/m f80aet/f100aet '03 g, d, i
Diagram Reference: 38
Seal, dust
Diagram Reference: 38
O/m f80aet/f100aet(67g/f2) '03
Diagram Reference: 39
O/m f80aet/f100aet(67g/f2) '03
Diagram Reference: 39
Diaphragm
Diagram Reference: 40
