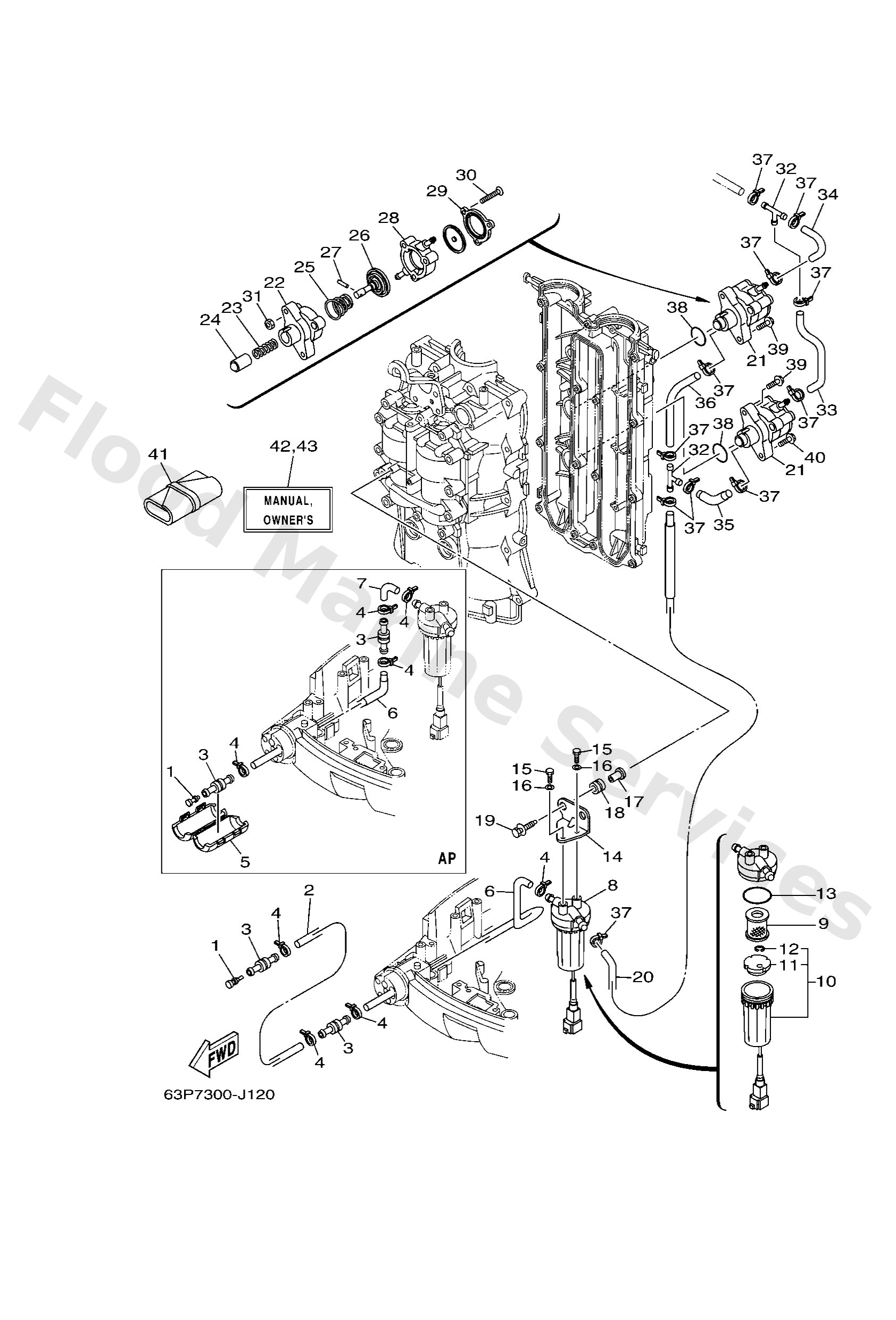

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
9044513511 (FOR EUR,RUS)
Hose (L2000)
Diagram Reference: 2
Get Part
6R32437710
Pipe, joint 3
Diagram Reference: 3
Get Part
9046511M10
Clamp
Diagram Reference: 4
Get Part
68V2445200 (AP)
Cover
Diagram Reference: 5
Get Part
63P2431600 (FOR EUR,RUS)
Pipe 6
Diagram Reference: 6
Get Part
63P2431610 (AP)
Pipe 6
Diagram Reference: 6
Get Part
61A2431100 (AP)
Pipe, fuel 1
Diagram Reference: 7
Get Part
6P32456001
Filter assembly
Diagram Reference: 8
Get Part
6P32456300
Element, filter (with tag)
Diagram Reference: 9
Get Part
6P32456201
Cup, filter (with tag)
Diagram Reference: 10
Get Part
6P32446900
Float, water level
Diagram Reference: 11
Get Part
6P32451900
Clip
Diagram Reference: 12
Get Part
6P32456400
Gasket
Diagram Reference: 13
Get Part
63P2456600
Bracket, filter
Diagram Reference: 14
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 15
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 16
Get Part
9038706M60
Collar (6h3)
Diagram Reference: 17
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 18
Get Part
9011906071
Bolt, with washer
Diagram Reference: 19
Get Part
63P2431110
Pipe, fuel 1
Diagram Reference: 20
Get Part
63P2441000
Fuel pump assembly
Diagram Reference: 21
Get Part
68V2441200
Body 1
Diagram Reference: 22
Get Part
68V2445400
Spring
Diagram Reference: 23
Get Part
63P1313100
Plunger
Diagram Reference: 24
Get Part
63P2442300
Spring, diaphragm
Diagram Reference: 25
Get Part
68V2441100
Diaphragm
Diagram Reference: 26
Get Part
68V2437400
Pin
Diagram Reference: 27
Get Part
68V2441300
Body 2
Diagram Reference: 28
Get Part
63P2441400
Body 3
Diagram Reference: 29
Get Part
68V2444400
Screw
Diagram Reference: 30
Get Part
68V2414900
Nut
Diagram Reference: 31
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 32
Get Part
63P2431400
Pipe 4
Diagram Reference: 33
Get Part
63P2431500
Pipe 5
Diagram Reference: 34
Get Part
63P2431210
Pipe 2
Diagram Reference: 35
Get Part
63P2431310
Pipe 3
Diagram Reference: 36
Get Part
9321030682
O-ring (371)
Diagram Reference: 38
Get Part
9011906M83
Bolt, with washer
Diagram Reference: 39
Get Part
9011906135
Bolt, with washer
Diagram Reference: 40
Get Part
67F2810001
Tool kit
Diagram Reference: 41
Get Part
63P2819979E0 (UR (E))
Manual,owner's
Diagram Reference: 42
Get Part
63P2819979F0 (UR (F))
Manual,owner's
Diagram Reference: 42
Get Part
63P2819979S0 (UR (ES))
Manual,owner's
Diagram Reference: 42
Get Part
63P2819979G0 (UR (D))
Manual,owner's
Diagram Reference: 42
Get Part
63P2819979D0 (UR (NL))
Manual,owner's
Diagram Reference: 42
Get Part
63P2819979H0 (UR (I))
Manual,owner's
Diagram Reference: 42
Get Part
63P2819989K0 (UR (DK))
Manual,owner's
Diagram Reference: 43
Get Part
63P2819989R0 (UR (GR))
Manual,owner's
Diagram Reference: 43
Get Part
63P2819989P0 (UR (P))
Manual,owner's
Diagram Reference: 43
Get Part
63P2819989N0 (UR (N))
Manual,owner's
Diagram Reference: 43
Get Part
63P2819989M0 (UR (S))
Manual,owner's
Diagram Reference: 43
Get Part
63P2819989L0 (UR (SF))
Manual,owner's
Diagram Reference: 43
