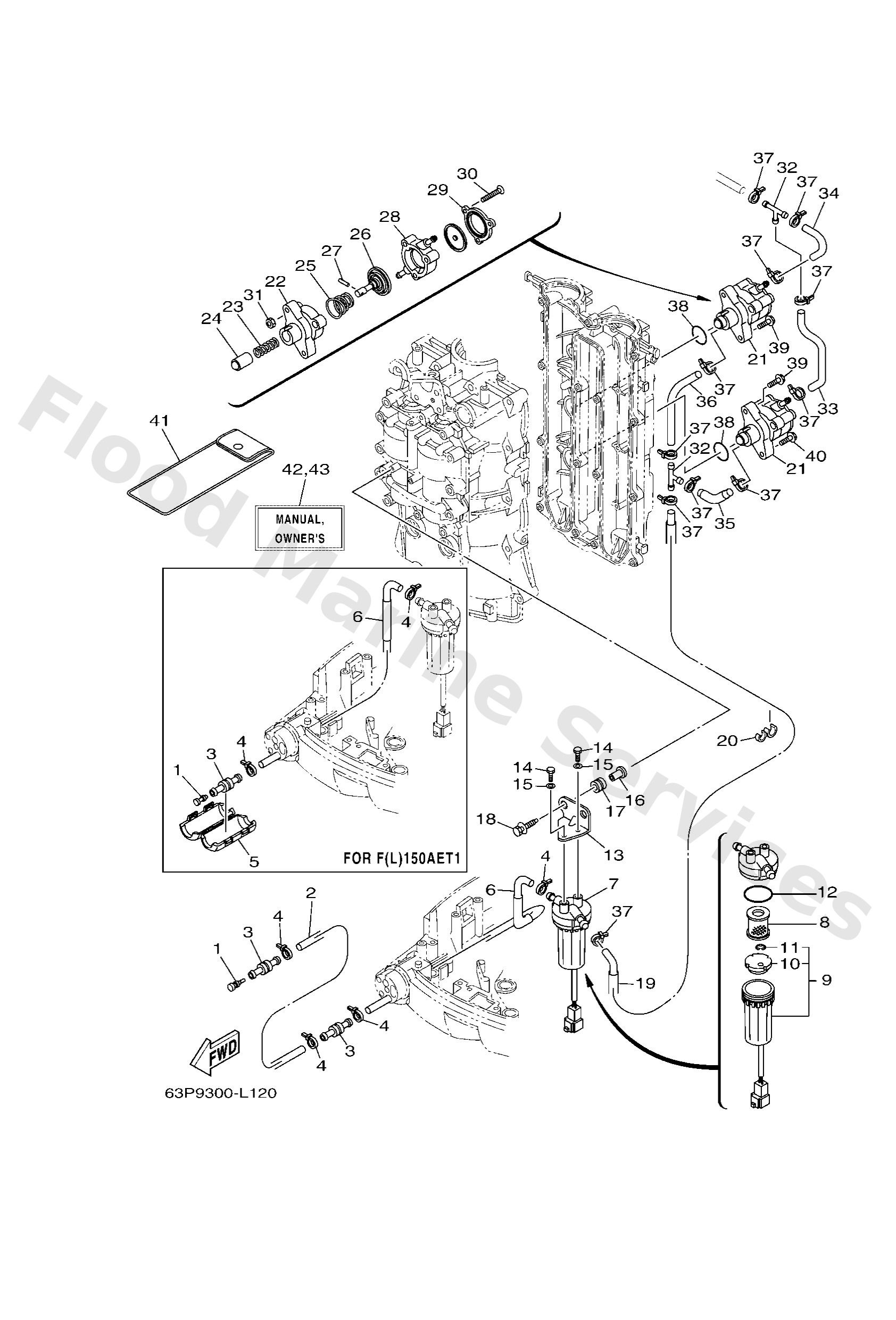

Parts List
Damper
Diagram Reference: 1
Hose (L2000)
Diagram Reference: 2
Pipe, joint 3
Diagram Reference: 3
Clamp
Diagram Reference: 4
Cover
Diagram Reference: 5
Pipe 6
Diagram Reference: 6
Pipe 6
Diagram Reference: 6
Filter assembly
Diagram Reference: 7
Element, filter (with tag)
Diagram Reference: 8
Cup, filter (with tag)
Diagram Reference: 9
Float, water level
Diagram Reference: 10
Clip
Diagram Reference: 11
Gasket
Diagram Reference: 12
Bracket, filter
Diagram Reference: 13
Bolt(gj3)
Diagram Reference: 14
Washer, plain (646)
Diagram Reference: 15
Collar (6h3)
Diagram Reference: 16
Grommet(6k7)
Diagram Reference: 17
Bolt, with washer
Diagram Reference: 18
Pipe, fuel 1
Diagram Reference: 19
Pipe, fuel 1
Diagram Reference: 19
Clamp(6r3)
Diagram Reference: 20
Fuel pump assembly
Diagram Reference: 21
Body 1
Diagram Reference: 22
Spring
Diagram Reference: 23
Plunger
Diagram Reference: 24
Spring, diaphragm
Diagram Reference: 25
Diaphragm
Diagram Reference: 26
Pin
Diagram Reference: 27
Body 2
Diagram Reference: 28
Body 3
Diagram Reference: 29
Screw
Diagram Reference: 30
Nut
Diagram Reference: 31
Pipe, joint 3
Diagram Reference: 32
Pipe 4
Diagram Reference: 33
Pipe 4
Diagram Reference: 33
Pipe 5
Diagram Reference: 34
Pipe 5
Diagram Reference: 34
Pipe 2
Diagram Reference: 35
Pipe 2
Diagram Reference: 35
Pipe 3
Diagram Reference: 36
Pipe 3
Diagram Reference: 36
O-ring (371)
Diagram Reference: 38
Bolt, with washer
Diagram Reference: 39
Bolt, with washer
Diagram Reference: 40
Tool kit
Diagram Reference: 41
O/m fl115aetx/ f150betx '12
Diagram Reference: 42
O/m fl115aetx/ f150betx '12
Diagram Reference: 42
O/m fl115aetx/ f150betx '12
Diagram Reference: 42
O/m fl115aetx/ f150betx '12
Diagram Reference: 42
O/m fl115aetx/ f150betx '12
Diagram Reference: 42
O/m fl115aetx/ f150betx '12
Diagram Reference: 42
O/m fl115aetx/ f150betx '12
Diagram Reference: 43
O/m fl115aetx/ f150betx '12
Diagram Reference: 43
O/m fl115aetx/ f150betx '12
Diagram Reference: 43
O/m fl115aetx/ f150betx '12
Diagram Reference: 43
Manual,owner's
Diagram Reference: 43
O/m fl115aetx/ f150betx '12
Diagram Reference: 43
