FL150AET (2014)
FUEL 1

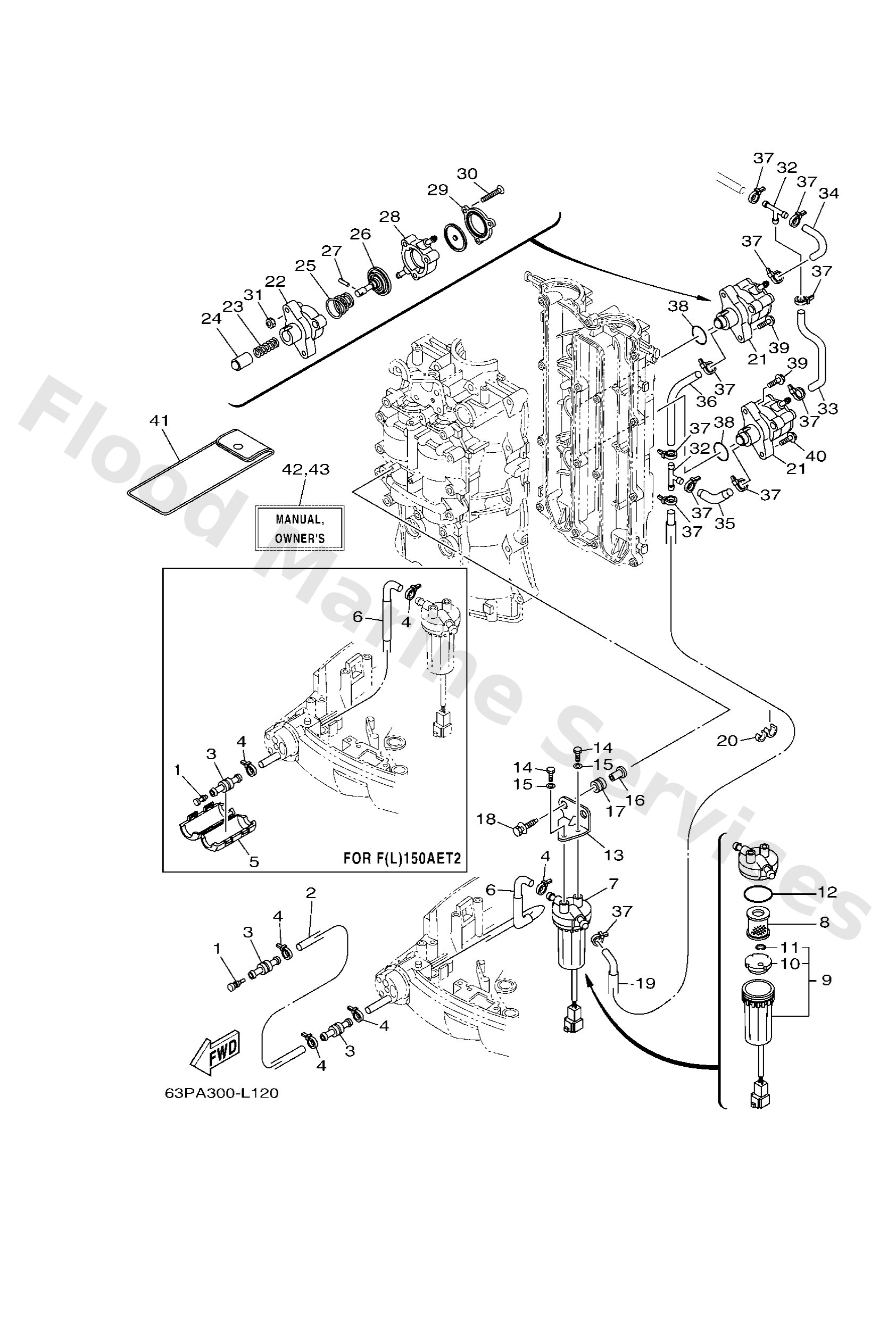

Diagram: FUEL 1
Parts List
6898554700
Damper
Diagram Reference: 1
Get Part
9044513511
(FOR F(L)150AET)
Hose (L2000)
Diagram Reference: 2
Get Part
6R32437710
(FOR F(L)150AET2)
Pipe, joint 3
Diagram Reference: 3
Get Part
9046511M10
(FOR F(L)150AET)
Clamp
Diagram Reference: 4
Get Part
68V2445200
(FOR F(L)150AET2)
Cover
Diagram Reference: 5
Get Part
63P2431600
(FOR F(L)150AET)
Pipe 6
Diagram Reference: 6
Get Part
63P2431621
(FOR F(L)150AET2)
Pipe 6
Diagram Reference: 6
Get Part
6P32456003
Filter assembly
Diagram Reference: 7
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 8
Get Part
6P32456203
Cup, filter (with tag)
Diagram Reference: 9
Get Part
6P32446900
Float, water level
Diagram Reference: 10
Get Part
6P32451900
Clip
Diagram Reference: 11
Get Part
6P32456400
Gasket
Diagram Reference: 12
Get Part
63P2456600
Bracket, filter
Diagram Reference: 13
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 14
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 15
Get Part
9038706289
Collar
Diagram Reference: 16
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 17
Get Part
9011906071
Bolt, with washer
Diagram Reference: 18
Get Part
63P2431130
(FOR F(L)150AET)
Pipe, fuel 1
Diagram Reference: 19
Get Part
63P2431120
(FOR F(L)150AET2)
Pipe, fuel 1
Diagram Reference: 19
Get Part
9046413M34
Clamp(6r3)
Diagram Reference: 20
Get Part
63P2441010
Fuel pump assembly
Diagram Reference: 21
Get Part
68V2441200
Body 1
Diagram Reference: 22
Get Part
68V2445400
Spring
Diagram Reference: 23
Get Part
63P1313100
Plunger
Diagram Reference: 24
Get Part
63P2442300
Spring, diaphragm
Diagram Reference: 25
Get Part
68V2441100
Diaphragm
Diagram Reference: 26
Get Part
68V2437400
Pin
Diagram Reference: 27
Get Part
68V2441310
Body 2
Diagram Reference: 28
Get Part
63P2441400
Body 3
Diagram Reference: 29
Get Part
68V2444400
Screw
Diagram Reference: 30
Get Part
68V2414900
Nut
Diagram Reference: 31
Get Part
6E52437800
Pipe, joint 3
Diagram Reference: 32
Get Part
63P2431400
(FOR F(L)150AET)
Pipe 4
Diagram Reference: 33
Get Part
63P2431410
(FOR F(L)150AET2)
Pipe 4
Diagram Reference: 33
Get Part
63P2431500
(FOR F(L)150AET)
Pipe 5
Diagram Reference: 34
Get Part
63P2431510
(FOR F(L)150AET2)
Pipe 5
Diagram Reference: 34
Get Part
63P2431210
(FOR F(L)150AET)
Pipe 2
Diagram Reference: 35
Get Part
63P2431220
(FOR F(L)150AET2)
Pipe 2
Diagram Reference: 35
Get Part
63P2431310
(FOR F(L)150AET)
Pipe 3
Diagram Reference: 36
Get Part
63P2431320
(FOR F(L)150AET2)
Pipe 3
Diagram Reference: 36
Get Part
9321030682
O-ring (371)
Diagram Reference: 38
Get Part
9011906M83
Bolt, with washer
Diagram Reference: 39
Get Part
9011906135
Bolt, with washer
Diagram Reference: 40
Get Part
67F2810001
(AP)
Tool kit
Diagram Reference: 41
Get Part
63P281997EE0
(UR (E))
Manual,owner's
Diagram Reference: 42
Get Part
63P281997EF0
(UR (F))
Manual,owner's
Diagram Reference: 42
Get Part
63P281997ES0
(UR (ES))
Manual,owner's
Diagram Reference: 42
Get Part
63P281997EG0
(UR (D))
Manual,owner's
Diagram Reference: 42
Get Part
63P281997ED0
(UR (NL))
Manual,owner's
Diagram Reference: 42
Get Part
63P281997EH0
(UR (I))
Manual,owner's
Diagram Reference: 42
Get Part
63P281998EK0
(UR (DK))
Manual,owner's
Diagram Reference: 43
Get Part
63P281998ER0
(UR (GR))
Manual,owner's
Diagram Reference: 43
Get Part
63P281998EP0
(UR (P))
Manual,owner's
Diagram Reference: 43
Get Part
63P281998EN0
(UR (N))
Manual,owner's
Diagram Reference: 43
Get Part
63P281998EM0
(UR (S))
Manual,owner's
Diagram Reference: 43
Get Part
63P281998EL0
(UR (SF))
Manual,owner's
Diagram Reference: 43
Get Part
