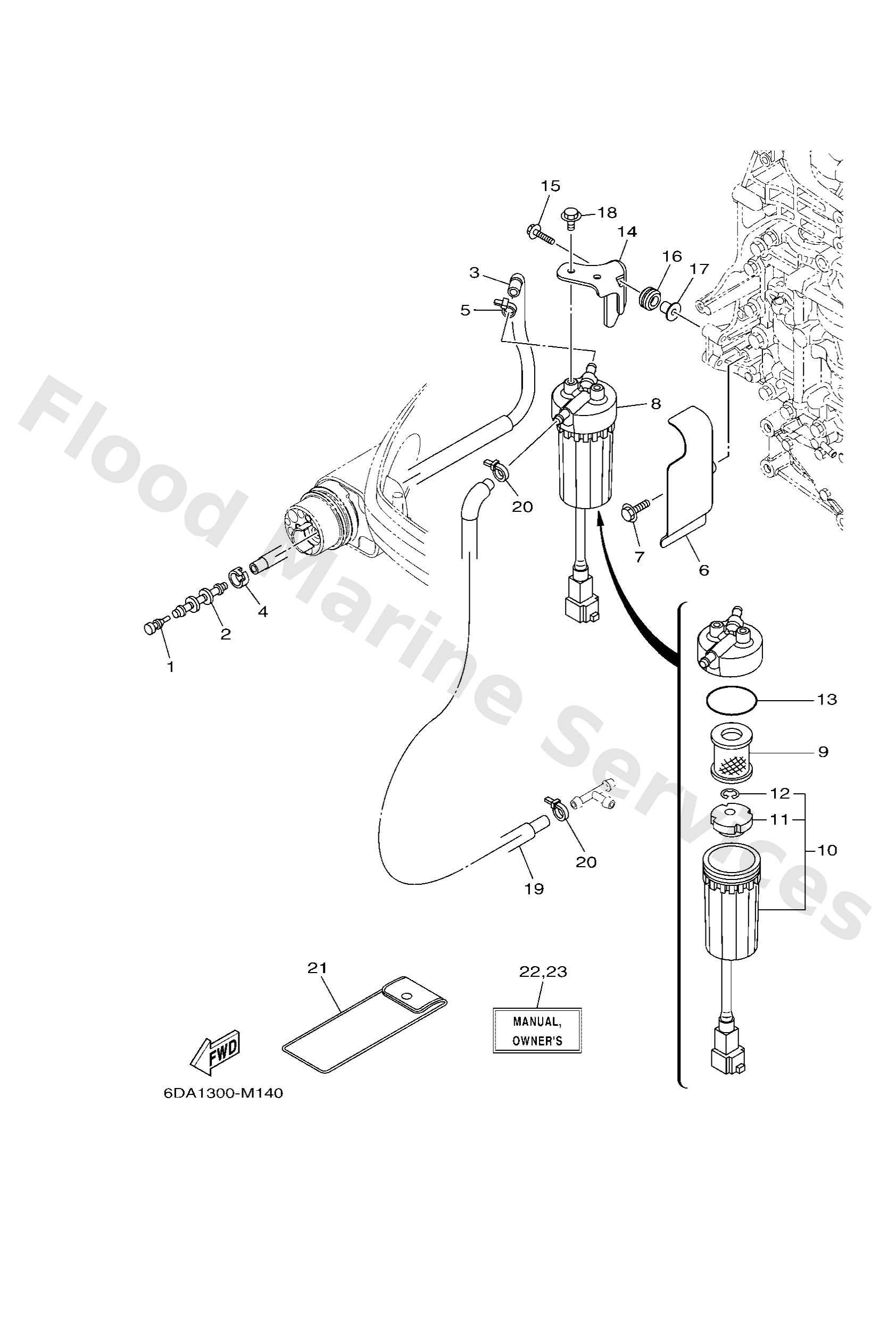

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6AW2437701
Pipe, joint 2
Diagram Reference: 2
Get Part
6DA2431400
Pipe 4
Diagram Reference: 3
Get Part
6E52435151
Band 1
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
6DA2459600
Cover
Diagram Reference: 6
Get Part
9589506025
Bolt, flange deep recess
Diagram Reference: 7
Get Part
6P32456003
Filter assembly
Diagram Reference: 8
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 9
Get Part
6P32456203
Cup, filter (with tag)
Diagram Reference: 10
Get Part
6P32446900
Float, water level
Diagram Reference: 11
Get Part
6P32451900
Clip
Diagram Reference: 12
Get Part
6P32456400
Gasket
Diagram Reference: 13
Get Part
6DA2456600
Bracket, filter
Diagram Reference: 14
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 15
Get Part
9048015013
Grommet
Diagram Reference: 16
Get Part
9038706289
Collar
Diagram Reference: 17
Get Part
9589506012
Bolt, flange deep recess
Diagram Reference: 18
Get Part
6DA2431300
Pipe 3
Diagram Reference: 19
Get Part
69J2810001 (AP)
Tool kit
Diagram Reference: 21
Get Part
6DV2819975H0 (UR (I))
O/m f200getx/f150getl'17
Diagram Reference: 22
Get Part
6DV2819975E0 (UR (E))
O/m f200getx/f150getl'17
Diagram Reference: 22
Get Part
6DV2819975F0 (UR (F))
O/m f200getx/f150getl'17
Diagram Reference: 22
Get Part
6DV2819975S0 (UR (ES))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819975G0 (UR (D))
O/m f200getx/f150getl'17
Diagram Reference: 22
Get Part
6DV2819975D0 (UR (NL))
O/m f200getx/f150getl'17
Diagram Reference: 22
Get Part
6DV2819985R0 (UR (GR))
O/m f200getx/f150getl'17
Diagram Reference: 23
Get Part
6DV2819985P0 (UR (P))
O/m f200getx/f150getl'17
Diagram Reference: 23
Get Part
6DV2819985N0 (UR (N))
O/m f200getx/f150getl'17
Diagram Reference: 23
Get Part
6DV2819985M0 (UR (S))
O/m f200getx/f150getl'17
Diagram Reference: 23
Get Part
6DV2819985L0 (UR (SF))
O/m f200getx/f150getl'17
Diagram Reference: 23
Get Part
6DV2819985K0 (UR (DK))
O/m f200getx/f150getl'17
Diagram Reference: 23
Get Part
