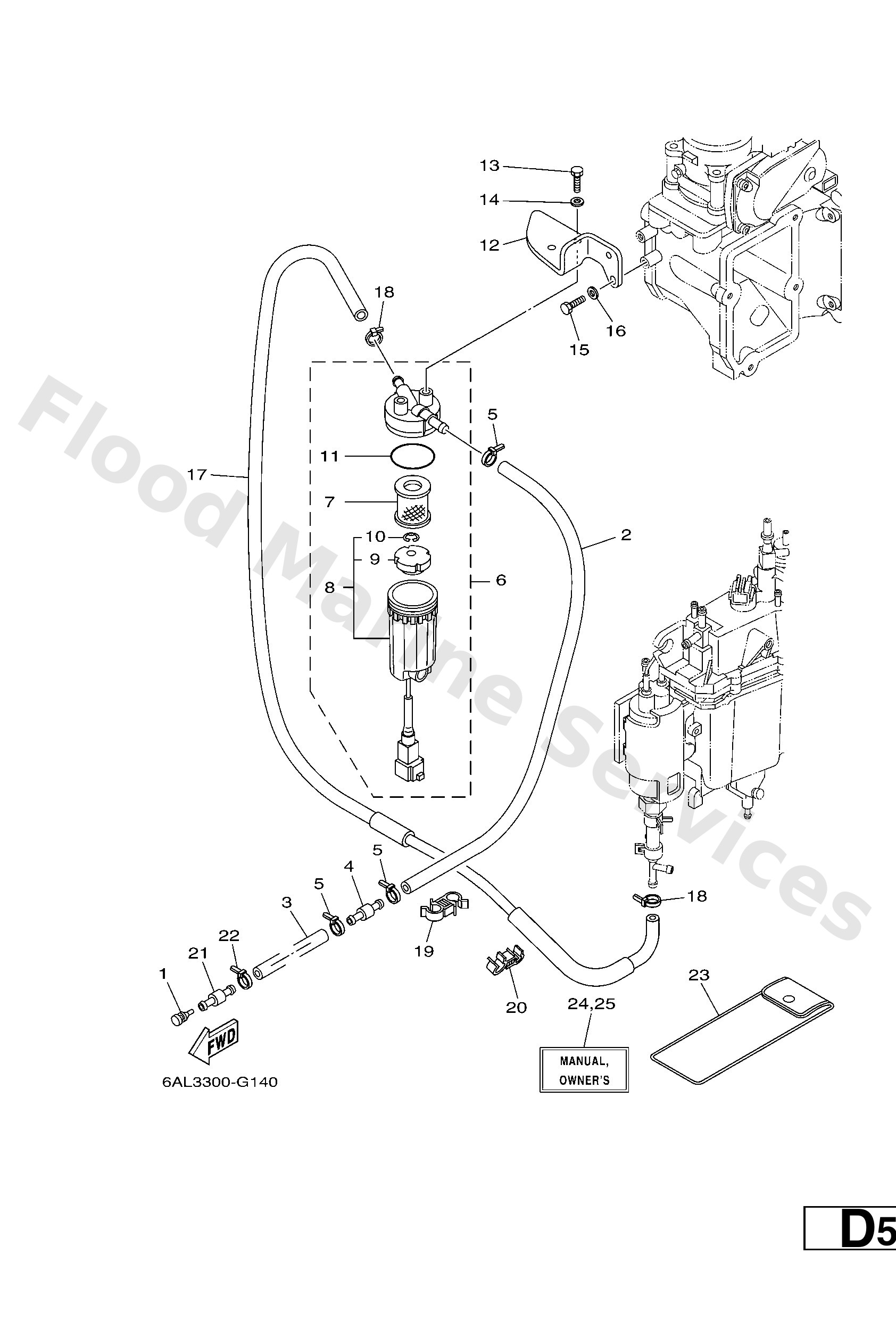

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6P22431400
Pipe 4
Diagram Reference: 2
Get Part
9044513511
Hose (L2000)
Diagram Reference: 3
Get Part
6R32437710
Pipe, Joint 2
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
6P32456000
Filter assembly
Diagram Reference: 6
Get Part
6P32456300
Element, filter (with tag)
Diagram Reference: 7
Get Part
6P32456200
Cup, filter (with tag)
Diagram Reference: 8
Get Part
6P32446900
Float, Water Level
Diagram Reference: 9
Get Part
6P32451900
Clip
Diagram Reference: 10
Get Part
6P32456400
Gasket
Diagram Reference: 11
Get Part
6P22456610
Bracket, filter
Diagram Reference: 12
Get Part
9709506014
Bolt
Diagram Reference: 13
Get Part
9299506600
10
Diagram Reference: 14
Get Part
9709506016
Bolt
Diagram Reference: 15
Get Part
6P22431310
Pipe 3
Diagram Reference: 17
Get Part
9046412009
Clamp
Diagram Reference: 19
Get Part
9046412010
Clamp
Diagram Reference: 20
Get Part
6R32437700
Pipe, Joint 2
Diagram Reference: 21
Get Part
69J2810001
Tool Kit
Diagram Reference: 23
Get Part
6P22819972G0 (UR (D))
O/m f250a '08
Diagram Reference: 24
Get Part
6P22819972S0 (UR (ES))
O/m f250a '08
Diagram Reference: 24
Get Part
6P22819972F0 (UR (F))
O/m f250a '08
Diagram Reference: 24
Get Part
6P22819972E0 (UR (E))
O/m f250a '08
Diagram Reference: 24
Get Part
6P22819972D0 (UR (NL))
O/m f250a '08
Diagram Reference: 24
Get Part
6P22819972H0 (UR (I))
O/m f250a '08
Diagram Reference: 24
Get Part
6P22819982K0 (UR (DK))
O/m f250a '08
Diagram Reference: 25
Get Part
6P22819982R0 (UR (GR))
O/m f250a '08
Diagram Reference: 25
Get Part
6P22819982P0 (UR (P))
O/m f250a '08
Diagram Reference: 25
Get Part
6P22819982N0 (UR (N))
O/m f250a '08
Diagram Reference: 25
Get Part
6P22819982M0 (UR (S))
O/m f250a '08
Diagram Reference: 25
Get Part
6P22819982L0 (UR (SF))
O/m f250a '08
Diagram Reference: 25
Get Part
