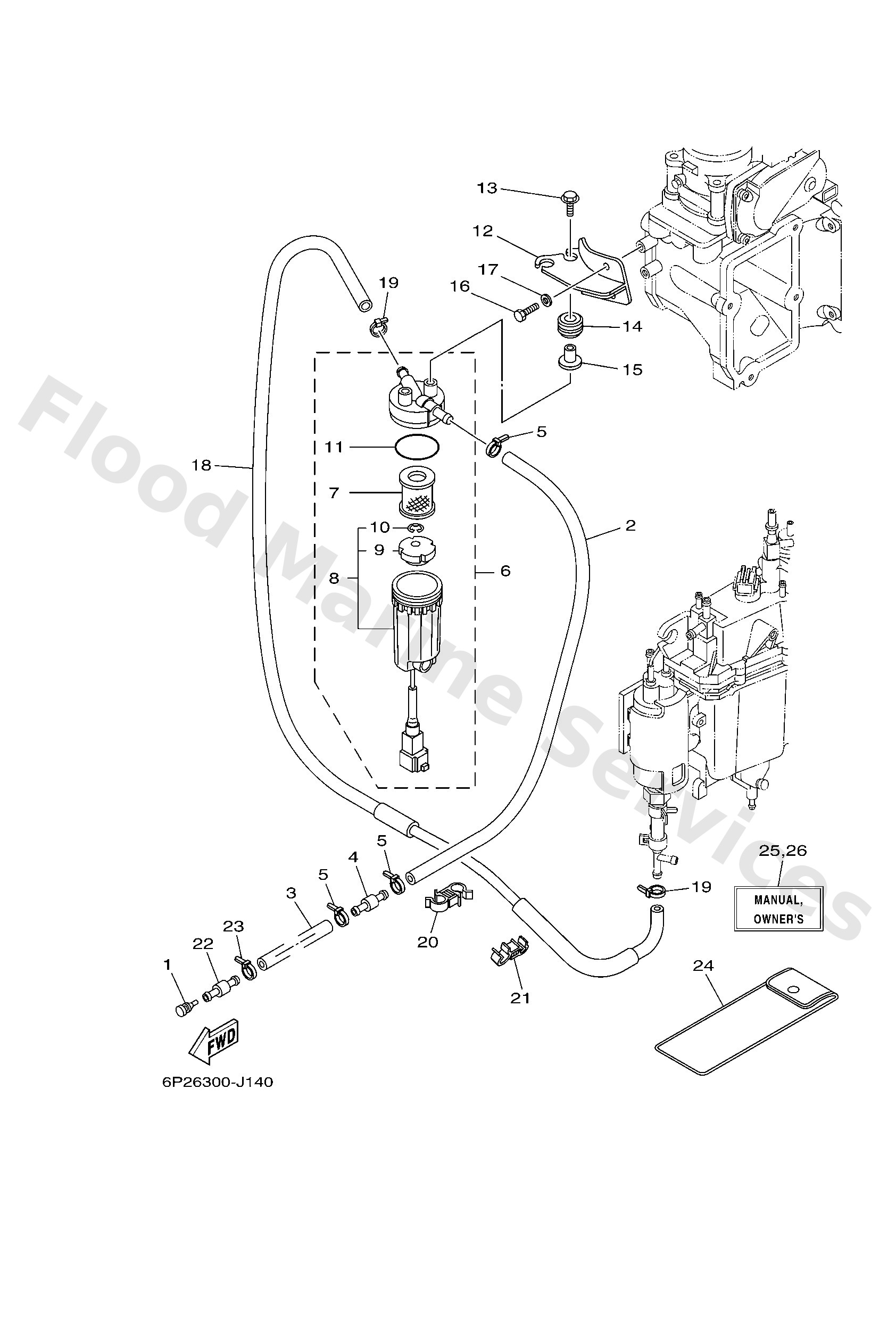

Diagram: FUEL 1

Diagram

Parts List

6898554700

Damper

Diagram Reference: 1

6P22431400

Pipe 4

Diagram Reference: 2

9044513511

Hose (L2000)

Diagram Reference: 3

6R32437710

Pipe, Joint 2

Diagram Reference: 4

9046511M10

Clamp

Diagram Reference: 5

6P32456001

Filter assembly

Diagram Reference: 6

6P32456300

Element, filter (with tag)

Diagram Reference: 7

6P32456201

Cup, filter (with tag)

Diagram Reference: 8

6P32446900

Float, Water Level

Diagram Reference: 9

6P32451900

Clip

Diagram Reference: 10

6P32456400

Gasket

Diagram Reference: 11

6P22456611

Bracket, filter

Diagram Reference: 12

9011906M17

Bolt, With Washer

Diagram Reference: 13

9048014018

Grommet

Diagram Reference: 14

9038706M60

カラー

Diagram Reference: 15

9709506014

Bolt

Diagram Reference: 16

9299506600

10

Diagram Reference: 17

6P22431310

Pipe 3

Diagram Reference: 18

9046412009

Clamp

Diagram Reference: 20

9046412010

Clamp

Diagram Reference: 21

6R32437700

Pipe, Joint 2

Diagram Reference: 22

69J2810001

Tool Kit

Diagram Reference: 24

6P22819976E0 (UR (E))

Manual,owner's

Diagram Reference: 25

6P22819976F0 (UR (F))

Manual,owner's

Diagram Reference: 25

6P22819976S0 (UR (ES))

Manual,owner's

Diagram Reference: 25

6P22819976G0 (UR (D))

Manual,owner's

Diagram Reference: 25

6P22819976H0 (UR (I))

Manual,owner's

Diagram Reference: 25

6P22819976D0 (UR (NL))

Manual,owner's

Diagram Reference: 25

6P22819986K0 (UR (DK))

Manual,owner's

Diagram Reference: 26

6P22819986R0 (UR (GR))

Manual,owner's

Diagram Reference: 26

6P22819986P0 (UR (P))

Manual,owner's

Diagram Reference: 26

6P22819986N0 (UR (N))

Manual,owner's

Diagram Reference: 26

6P22819986M0 (UR (S))

Manual,owner's

Diagram Reference: 26

6P22819986L0 (UR (SF))

Manual,owner's

Diagram Reference: 26
