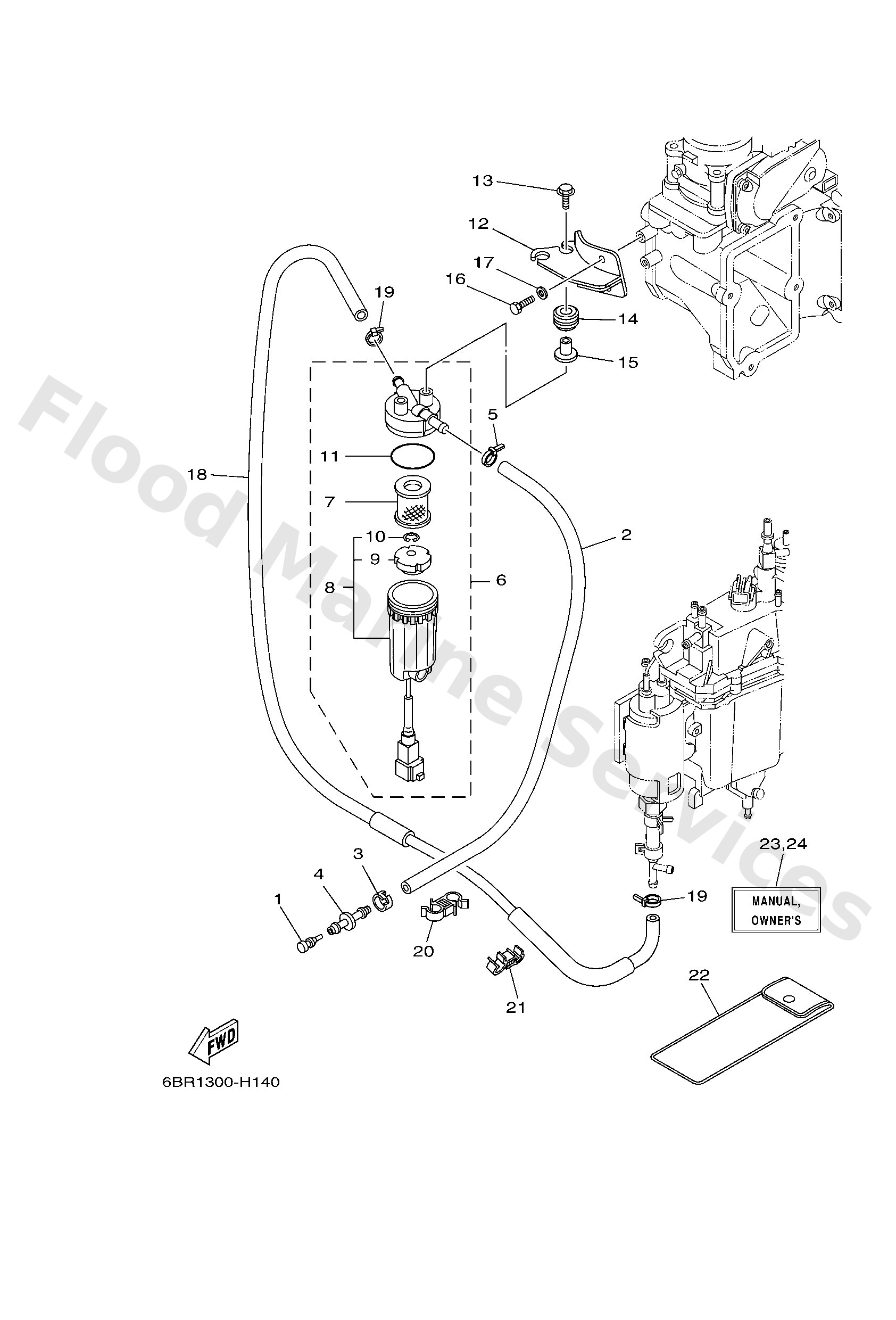

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6P22431400
Pipe 4
Diagram Reference: 2
Get Part
6E52435151
Band 1
Diagram Reference: 3
Get Part
6AW2437700
Pipe, joint 2
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
6P32456001
Filter assembly
Diagram Reference: 6
Get Part
6P32456300
Element, filter (with tag)
Diagram Reference: 7
Get Part
6P32456201
Cup, filter (with tag)
Diagram Reference: 8
Get Part
6P32446900
Float, water level
Diagram Reference: 9
Get Part
6P32451900
Clip
Diagram Reference: 10
Get Part
6P32456400
Gasket
Diagram Reference: 11
Get Part
6P22456611 (Go to P/N)PE0-OM-080082)
Bracket, filter
Diagram Reference: 12
Get Part
9011906M17 (Go to P/N)PE0-OM-080082)
Bolt, with washer
Diagram Reference: 13
Get Part
9048014018 (Go to P/N)PE0-OM-080082)
Grommet
Diagram Reference: 14
Get Part
9038706M60 (Go to P/N)PE0-OM-080082)
Collar (6h3)
Diagram Reference: 15
Get Part
9709506014 (Go to P/N)PE0-OM-080082)
Bolt(gj3)
Diagram Reference: 16
Get Part
9299506600 (Go to P/N)PE0-OM-080082)
Washer, plain (646)
Diagram Reference: 17
Get Part
6P22431310
Pipe 3
Diagram Reference: 18
Get Part
9046412009
Clamp
Diagram Reference: 20
Get Part
9046412010
Clamp
Diagram Reference: 21
Get Part
69J2810001
Tool kit
Diagram Reference: 22
Get Part
6BR2819970F0 (UR (F))
6al2819984r0
Diagram Reference: 23
Get Part
6BR2819970S0 (UR (ES))
O/m f250b/fl250b '09
Diagram Reference: 23
Get Part
6BR2819970G0 (UR (D))
O/m f250b/fl250b '09
Diagram Reference: 23
Get Part
6BR2819970D0 (UR (NL))
O/m f250b/fl250b '09
Diagram Reference: 23
Get Part
6BR2819970E0 (UR (E))
O/m f250b/fl250b '09
Diagram Reference: 23
Get Part
2
6C5-14182-10
Diagram Reference: 13
Get Part
OLD
62Y-24452-00
Diagram Reference: 14
Get Part
152
Old
Diagram Reference: 15
Get Part
151
Old
Diagram Reference: 15
Get Part
COLLAR (*Part number revision)
-
Diagram Reference: 15
Get Part
BOLT (*Part number revision)
-
Diagram Reference: 16
Get Part
6BR2819970H0 (UR (I))
O/m f250b/fl250b '09
Diagram Reference: 23
Get Part
6BR2819980K0 (UR (DK))
O/m f250b/fl250b '09
Diagram Reference: 24
Get Part
6BR2819980R0 (UR (GR))
O/m f250b/fl250b '09
Diagram Reference: 24
Get Part
6BR2819980P0 (UR (P))
O/m f250b/fl250b '09
Diagram Reference: 24
Get Part
6BR2819980N0 (UR (N))
O/m f250b/fl250b '09
Diagram Reference: 24
Get Part
6BR2819980M0 (UR (S))
O/m f250b/fl250b '09
Diagram Reference: 24
Get Part
6BR2819980L0 (UR (SF))
O/m f250b/fl250b '09
Diagram Reference: 24
