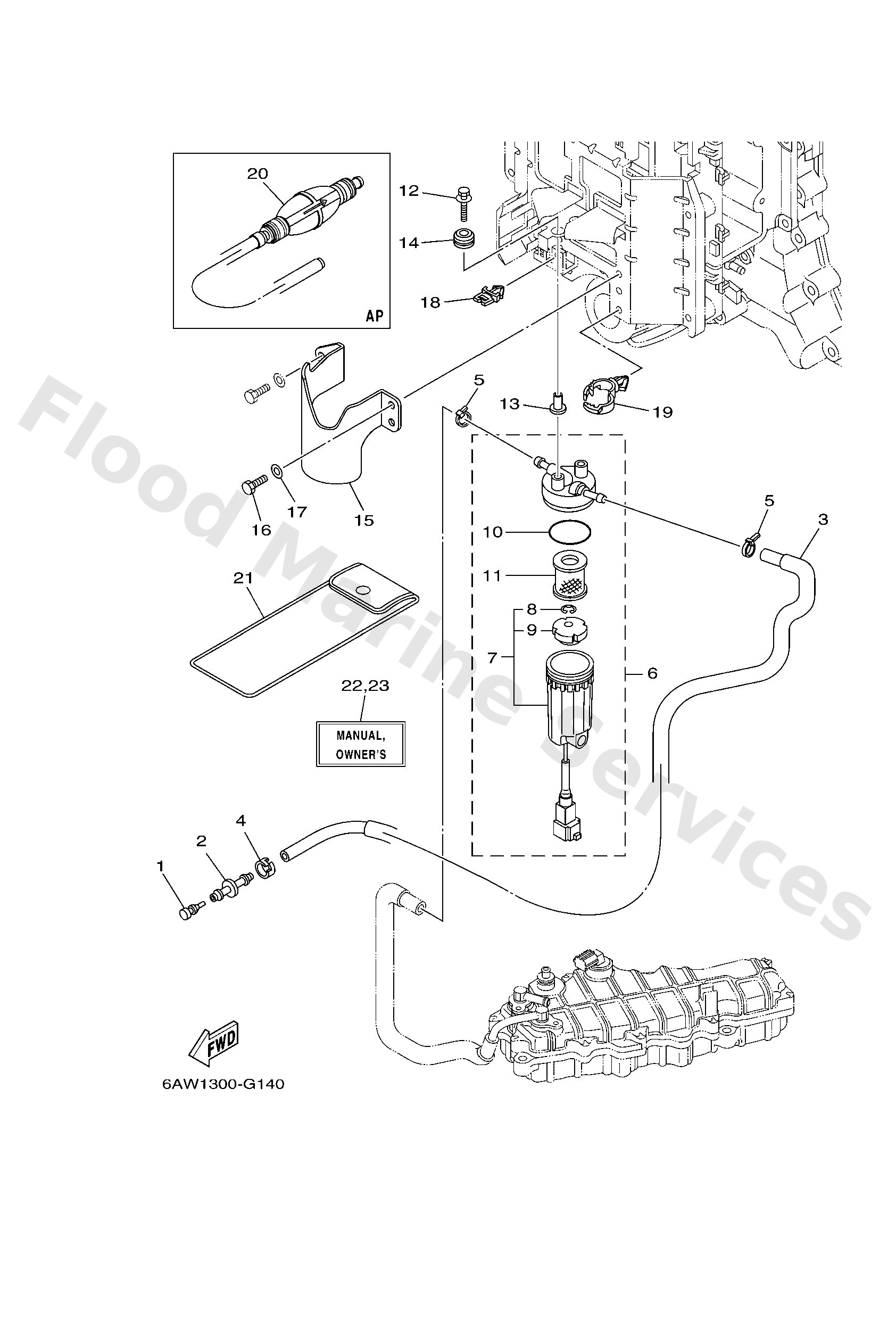

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6AW2437700
Pipe, joint 2
Diagram Reference: 2
Get Part
6AW2431100
Pipe, fuel 1
Diagram Reference: 3
Get Part
6E52435151
Band 1
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
6P32456010
Filter assembly
Diagram Reference: 6
Get Part
6P32456210
Cup, filter (with tag)
Diagram Reference: 7
Get Part
6P32451900
Clip
Diagram Reference: 8
Get Part
6P32446900
Float, water level
Diagram Reference: 9
Get Part
6P32456400
Gasket
Diagram Reference: 10
Get Part
6P32456300
Element, filter (with tag)
Diagram Reference: 11
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 12
Get Part
9038706M60
Collar (6h3)
Diagram Reference: 13
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 14
Get Part
6AW2459600
Cover
Diagram Reference: 15
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 16
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 17
Get Part
9046411121
Clamp(4gy)
Diagram Reference: 18
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 19
Get Part
6YK2430742 (AP)
Fuel pipe comp. 2
Diagram Reference: 20
Get Part
69J2810001
Tool kit
Diagram Reference: 21
Get Part
6AW2819973E0 (UR (E))
O/m f350a/fl300a '08
Diagram Reference: 22
Get Part
6AW2819973F0 (UR (F))
O/m f350a/fl300a '08
Diagram Reference: 22
Get Part
6AW2819973S0 (UR (ES))
O/m f350a/fl300a '08
Diagram Reference: 22
Get Part
6AW2819973G0 (UR (D))
O/m f350a/fl300a '08
Diagram Reference: 22
Get Part
6AW2819973D0 (UR (NL))
O/m f350a/fl300a '08
Diagram Reference: 22
Get Part
6AW2819973H0 (UR (I))
O/m f350a/fl300a '08
Diagram Reference: 22
Get Part
6AW2819983K0 (UR (DK))
O/m f350a/fl300a '08
Diagram Reference: 23
Get Part
6AW2819983R0 (UR (GR))
O/m f350a/fl300a '08
Diagram Reference: 23
Get Part
6AW2819983P0 (UR (P))
O/m f350a/fl300a '08
Diagram Reference: 23
Get Part
6AW2819983N0 (UR (N))
O/m f350a/fl300a '08
Diagram Reference: 23
Get Part
6AW2819983M0 (UR (S))
O/m f350a/fl300a '08
Diagram Reference: 23
Get Part
6AW2819983L0 (UR (SF))
O/m f350a/fl300a '08
Diagram Reference: 23
Get Part
