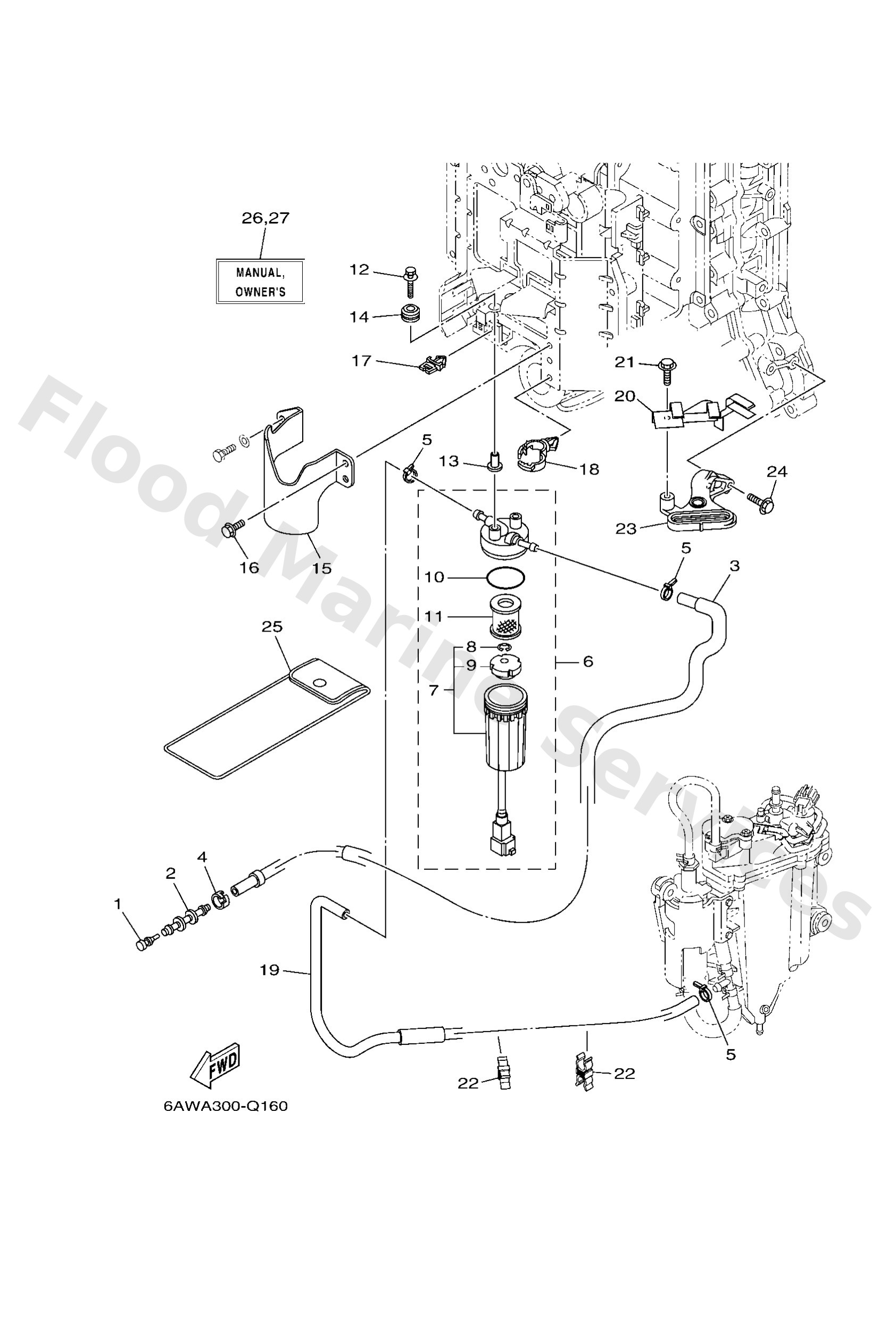

Diagram: FUEL 1

Diagram

Parts List

6898554700
Damper
Diagram Reference: 1
Get Part
6AW2437701
Pipe, joint 2
Diagram Reference: 2
Get Part
6AW2431111
Pipe, fuel 1
Diagram Reference: 3
Get Part
6E52435151
Band 1
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
6P32456022
Filter assembly
Diagram Reference: 6
Get Part
6P32456221
Cup, filter (with tag)
Diagram Reference: 7
Get Part
6P32451900
Clip
Diagram Reference: 8
Get Part
6P32446900
Float, water level
Diagram Reference: 9
Get Part
6P32456400
Gasket
Diagram Reference: 10
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 11
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 12
Get Part
9038706289
Collar
Diagram Reference: 13
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 14
Get Part
6AW2459600
Cover
Diagram Reference: 15
Get Part
9759506512
Bolt, hexagon w/w deep recess
Diagram Reference: 16
Get Part
9046411121
Clamp(4gy)
Diagram Reference: 17
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 18
Get Part
6AW2431310
Pipe 3
Diagram Reference: 19
Get Part
6AW2442200
Plate
Diagram Reference: 20
Get Part
9589506012
Bolt, flange deep recess
Diagram Reference: 21
Get Part
9046411009
Clamp
Diagram Reference: 22
Get Part
6AW4411700
Bracket
Diagram Reference: 23
Get Part
9589506025
Bolt, flange deep recess
Diagram Reference: 24
Get Part
69J2810001 (AP)
Tool kit
Diagram Reference: 25
Get Part
6AW281997CF0 (UR (F))
Manual,owner's
Diagram Reference: 26
Get Part
6AW281997CE0 (UR (E))
Manual,owner's
Diagram Reference: 26
Get Part
6AW281997CH0 (UR (I))
Manual,owner's
Diagram Reference: 26
Get Part
6AW281997CD0 (UR (NL))
Manual,owner's
Diagram Reference: 26
Get Part
6AW281997CG0 (UR (D))
Manual,owner's
Diagram Reference: 26
Get Part
6AW281997CS0 (UR (ES))
Manual,owner's
Diagram Reference: 26
Get Part
6AW281998CK0 (UR (DK))
Manual,owner's
Diagram Reference: 27
Get Part
6AW281998CL0 (UR (SF))
Manual,owner's
Diagram Reference: 27
Get Part
6AW281998CM0 (UR (S))
Manual,owner's
Diagram Reference: 27
Get Part
6AW281998CN0 (UR (N))
Manual,owner's
Diagram Reference: 27
Get Part
6AW281998CP0 (UR (P))
Manual,owner's
Diagram Reference: 27
Get Part
6AW281998CR0 (UR (GR))
Manual,owner's
Diagram Reference: 27
Get Part
