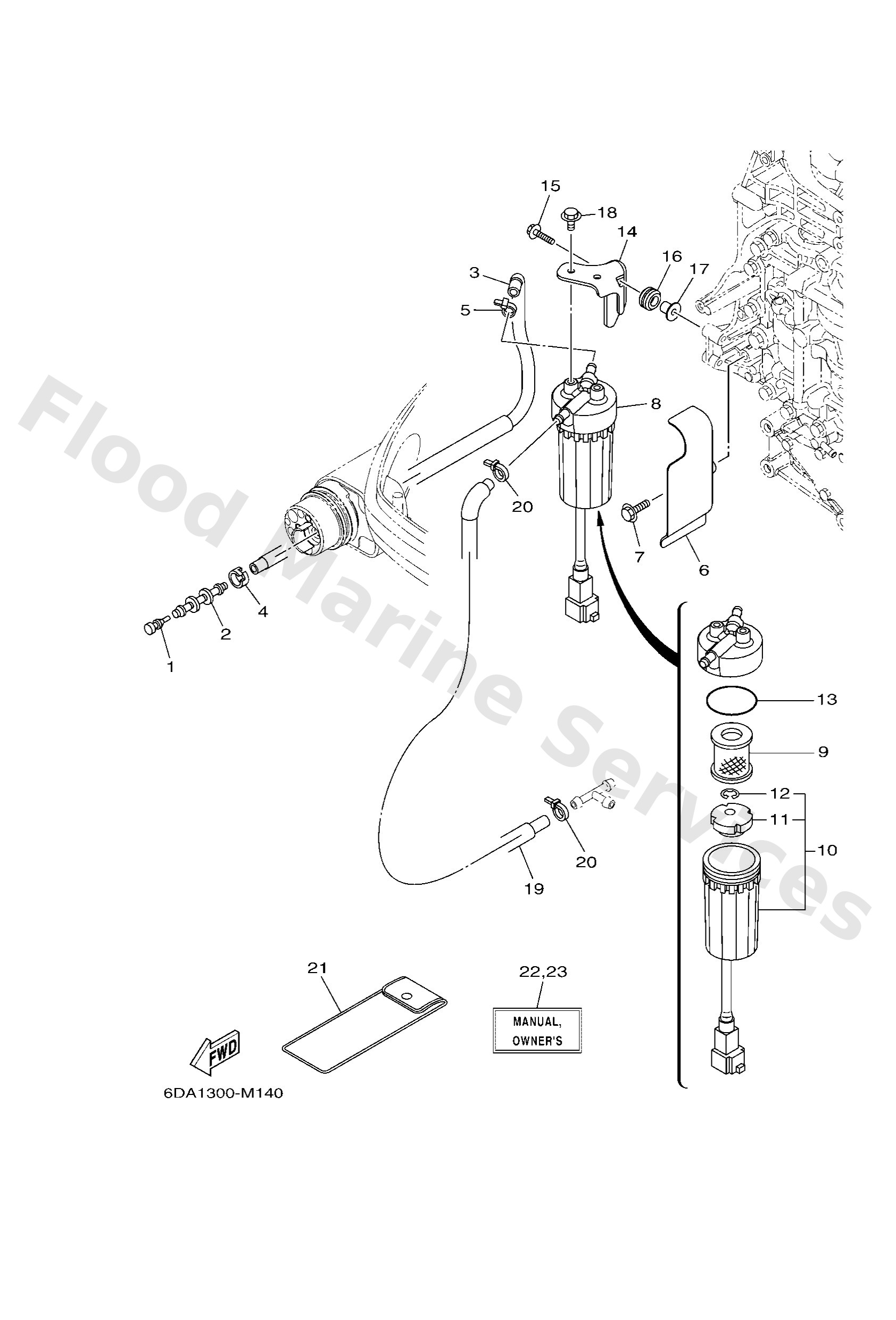

Diagram: FUEL 1

Diagram

Parts List

6898554701
Damper
Diagram Reference: 1
Get Part
6AW2437701
Pipe, joint 2
Diagram Reference: 2
Get Part
6DA2431400
Pipe 4
Diagram Reference: 3
Get Part
6E52435151
Band 1
Diagram Reference: 4
Get Part
9046511M10
Clamp
Diagram Reference: 5
Get Part
6DA2459601
Cover
Diagram Reference: 6
Get Part
95D9506025
Bolt, flange deep recess
Diagram Reference: 7
Get Part
6P32456004
Filter assembly
Diagram Reference: 8
Get Part
6P32456302
Element, filter (with tag)
Diagram Reference: 9
Get Part
6P32456203
Cup, filter (with tag)
Diagram Reference: 10
Get Part
6P32446900
Float, water level
Diagram Reference: 11
Get Part
6P32451900
Clip
Diagram Reference: 12
Get Part
6P32456400
Gasket
Diagram Reference: 13
Get Part
6DA2456600
Bracket, filter
Diagram Reference: 14
Get Part
9011906309
Bolt, with washer
Diagram Reference: 15
Get Part
9048015013
Grommet
Diagram Reference: 16
Get Part
9038706289
Collar
Diagram Reference: 17
Get Part
95D9506012
Bolt, flange deep recess
Diagram Reference: 18
Get Part
6DA2431300
Pipe 3
Diagram Reference: 19
Get Part
69J2810003 (AP)
Tool kit
Diagram Reference: 21
Get Part
6DV2819979H0 (UR (I))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819979E0 (UR (E))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819979F0 (UR (F))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819979S0 (UR (ES))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819979G0 (UR (D))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819979D0 (UR (NL))
Manual,owner's
Diagram Reference: 22
Get Part
6DV2819989R0 (UR (GR))
Manual,owner's
Diagram Reference: 23
Get Part
6DV2819989P0 (UR (P))
Manual,owner's
Diagram Reference: 23
Get Part
6DV2819989N0 (UR (N))
Manual,owner's
Diagram Reference: 23
Get Part
6DV2819989M0 (UR (S))
Manual,owner's
Diagram Reference: 23
Get Part
6DV2819989L0 (UR (SF))
Manual,owner's
Diagram Reference: 23
Get Part
6DV2819989K0 (UR (DK))
Manual,owner's
Diagram Reference: 23
Get Part
