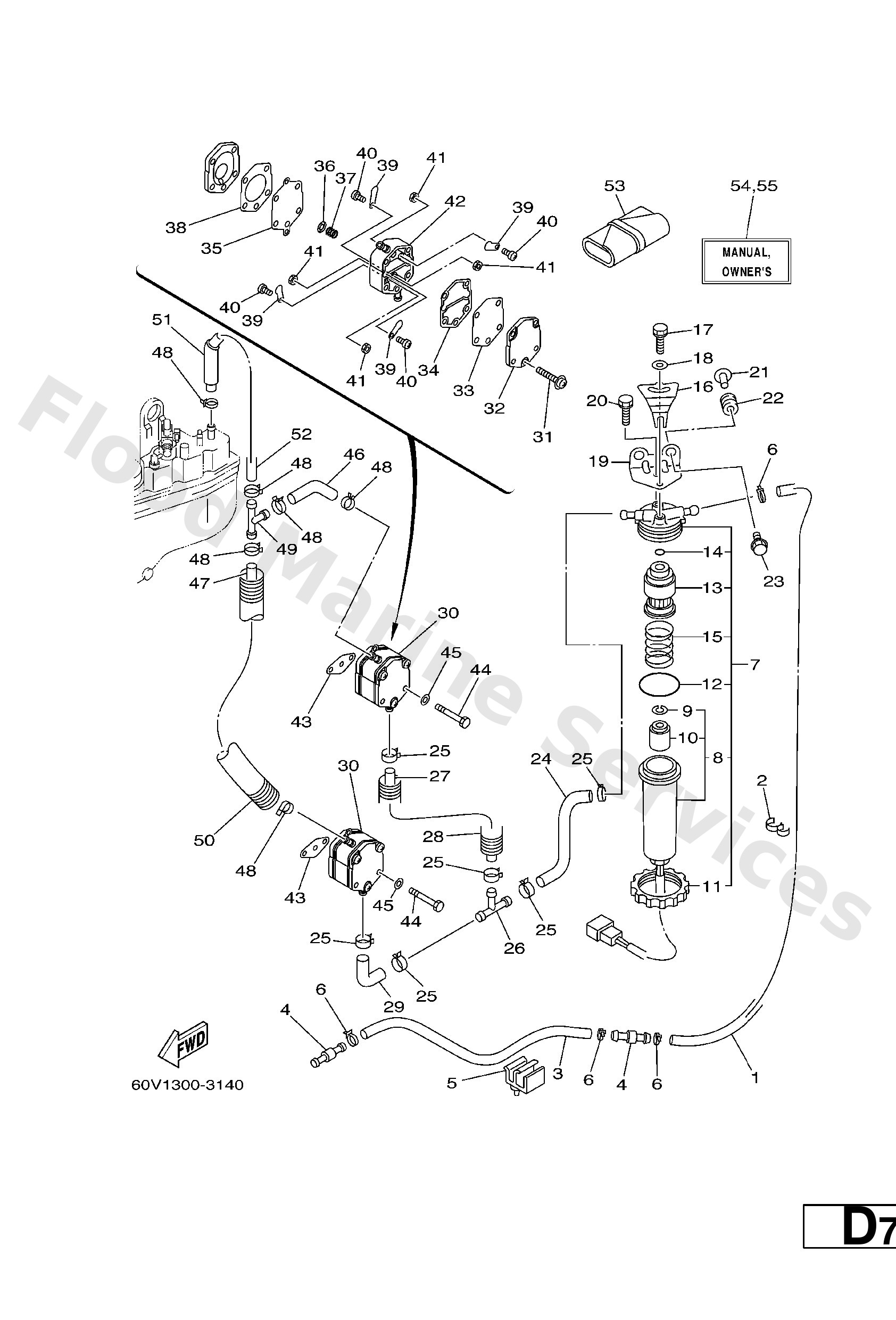

Diagram: FUEL 1
Parts List
Pipe 3
Diagram Reference: 1
Clamp(6r3)
Diagram Reference: 2
Hose(l2700)
Diagram Reference: 3
Pipe, joint 3
Diagram Reference: 4
Clamp
Diagram Reference: 5
Clamp
Diagram Reference: 6
Filter assembly
Diagram Reference: 7
Cup, filter
Diagram Reference: 8
14 −
Diagram Reference: 9
14 −
Diagram Reference: 10
Nut
Diagram Reference: 11
O-ring
Diagram Reference: 12
Element, filter
Diagram Reference: 13
Gasket
Diagram Reference: 14
Spring
Diagram Reference: 15
Holder, filter
Diagram Reference: 16
Bolt, with washer(62x)
Diagram Reference: 17
Washer,plate (6k8)
Diagram Reference: 18
Bracket, filter
Diagram Reference: 19
Bolt(gj3)
Diagram Reference: 20
Collar (6h3)
Diagram Reference: 21
Grommet(6k7)
Diagram Reference: 22
Bolt, with washer
Diagram Reference: 23
Pipe, Fuel 1
Diagram Reference: 24
Pipe, joint 3
Diagram Reference: 26
Pipe 5
Diagram Reference: 27
Hose, with spring
Diagram Reference: 28
Pipe 5
Diagram Reference: 29
Fuel pump assembly
Diagram Reference: 30
Screw
Diagram Reference: 31
Body 2
Diagram Reference: 32
Diaphragm
Diagram Reference: 33
Gasket, body 2
Diagram Reference: 34
Diaphragm
Diagram Reference: 35
Seat,spring
Diagram Reference: 36
Spring, diaphragm
Diagram Reference: 37
Gasket, body
Diagram Reference: 38
Valve, check
Diagram Reference: 39
Screw, pan head
Diagram Reference: 40
Nut (6g8)
Diagram Reference: 41
Body 1
Diagram Reference: 42
Gasket,fuel pump
Diagram Reference: 43
Bolt(jf7)
Diagram Reference: 44
Washer, plain (646)
Diagram Reference: 45
Pipe 6
Diagram Reference: 46
Pipe 3
Diagram Reference: 47
Tube
Diagram Reference: 50
Hose(6g4)
Diagram Reference: 51
Hose (L235)
Diagram Reference: 52
Tool kit
Diagram Reference: 53
Om z250d/lz250d
Diagram Reference: 54
Om z250d/lz250d
Diagram Reference: 54
Manual,Owner’s
Diagram Reference: 55
Om z250d/lz250d '06
Diagram Reference: 55
