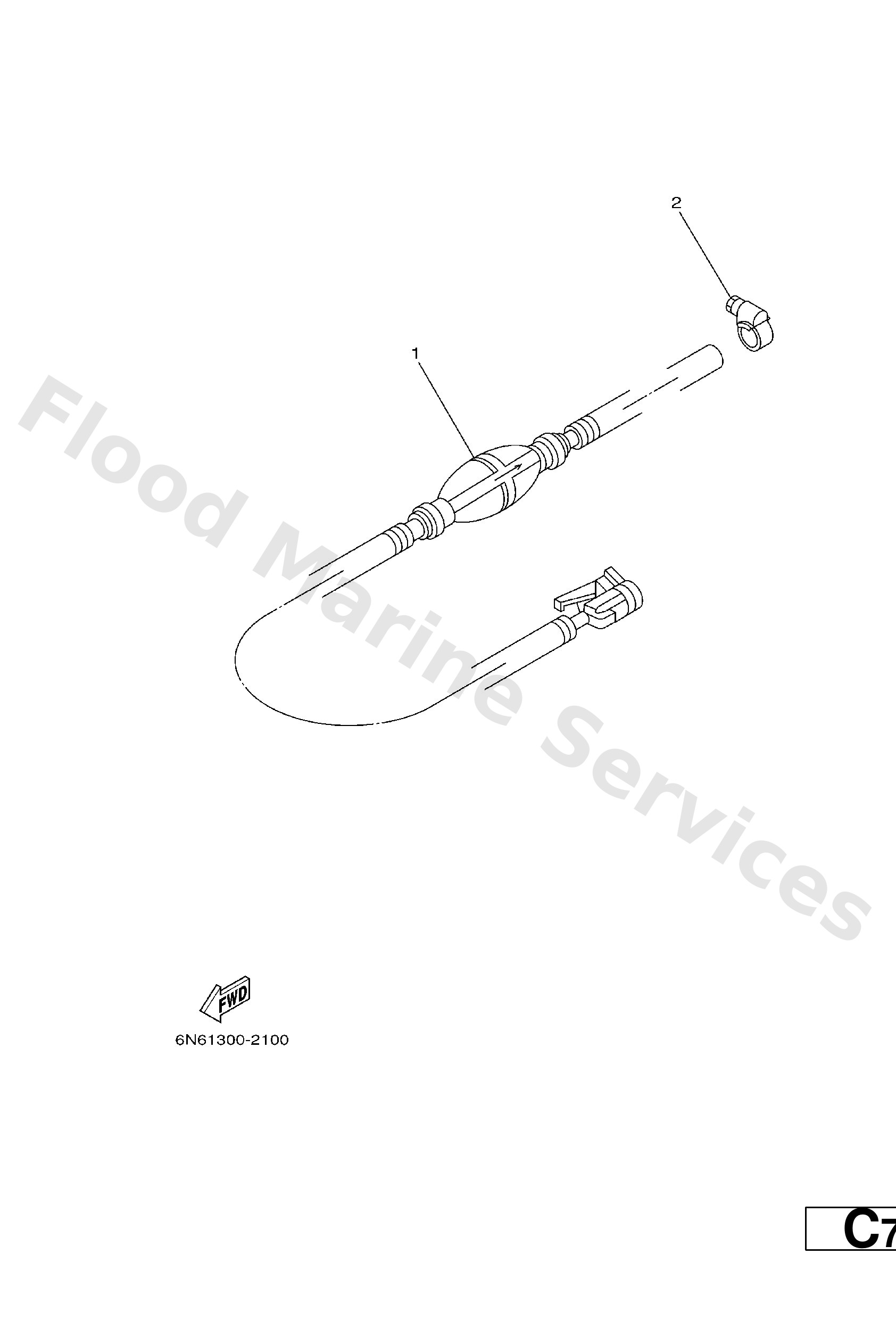

Diagram: FUEL 2

Diagram

Parts List

6YK2430742 (AP)
Fuel pipe comp. 2
Diagram Reference: 1
Get Part
6YK2430642 (AP 175D/200F–X)
Fuel pipe comp. 1
Diagram Reference: 1
Get Part
9045010M07 (AP)
Hose, clamp
Diagram Reference: 2
Get Part
