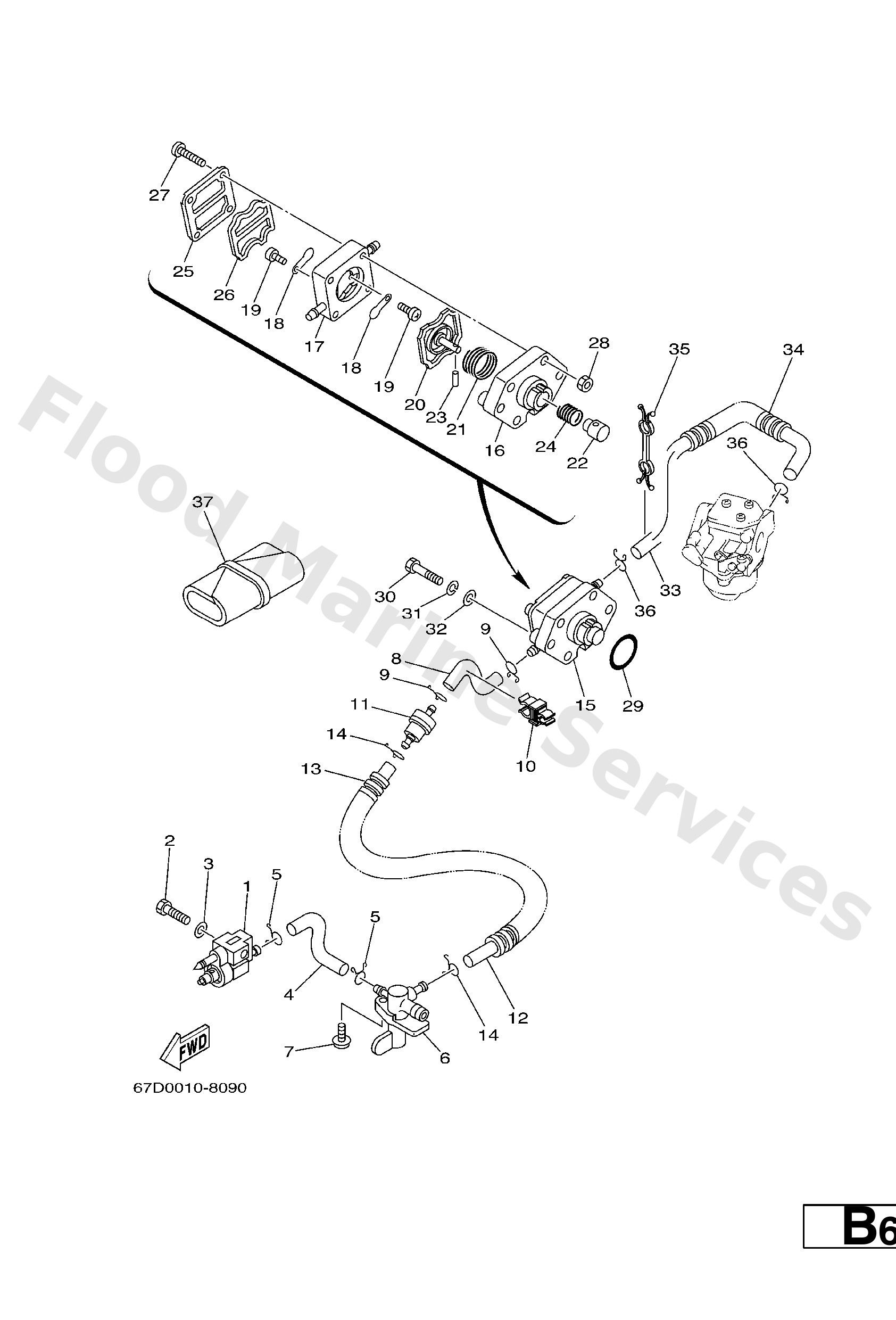

Diagram: FUEL 2
Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Bolt
Diagram Reference: 2
Washer, plain (646)
Diagram Reference: 3
Clip(6k8)
Diagram Reference: 5
Fuel cock assembly 1
Diagram Reference: 6
Screw, with washer(6l5)
Diagram Reference: 7
Clamp
Diagram Reference: 10
Strainer 1
Diagram Reference: 11
Hose (l400)
Diagram Reference: 12
Hose(6tc)
Diagram Reference: 13
Fuel pump assembly
Diagram Reference: 15
Body 1
Diagram Reference: 16
Body 2
Diagram Reference: 17
Valve, check
Diagram Reference: 18
Screw, pan head
Diagram Reference: 19
Diaphragm
Diagram Reference: 20
Spring, diaphragm
Diagram Reference: 21
Plunger
Diagram Reference: 22
Pin
Diagram Reference: 23
Spring
Diagram Reference: 24
Body 3
Diagram Reference: 25
Diaphragm
Diagram Reference: 26
Screw
Diagram Reference: 27
Nut,hex
Diagram Reference: 28
O-ring
Diagram Reference: 29
Bolt(jf7)
Diagram Reference: 30
Washer(6a1)
Diagram Reference: 31
Hose (l400)
Diagram Reference: 33
Clamp
Diagram Reference: 35
Tool Kit
Diagram Reference: 37
