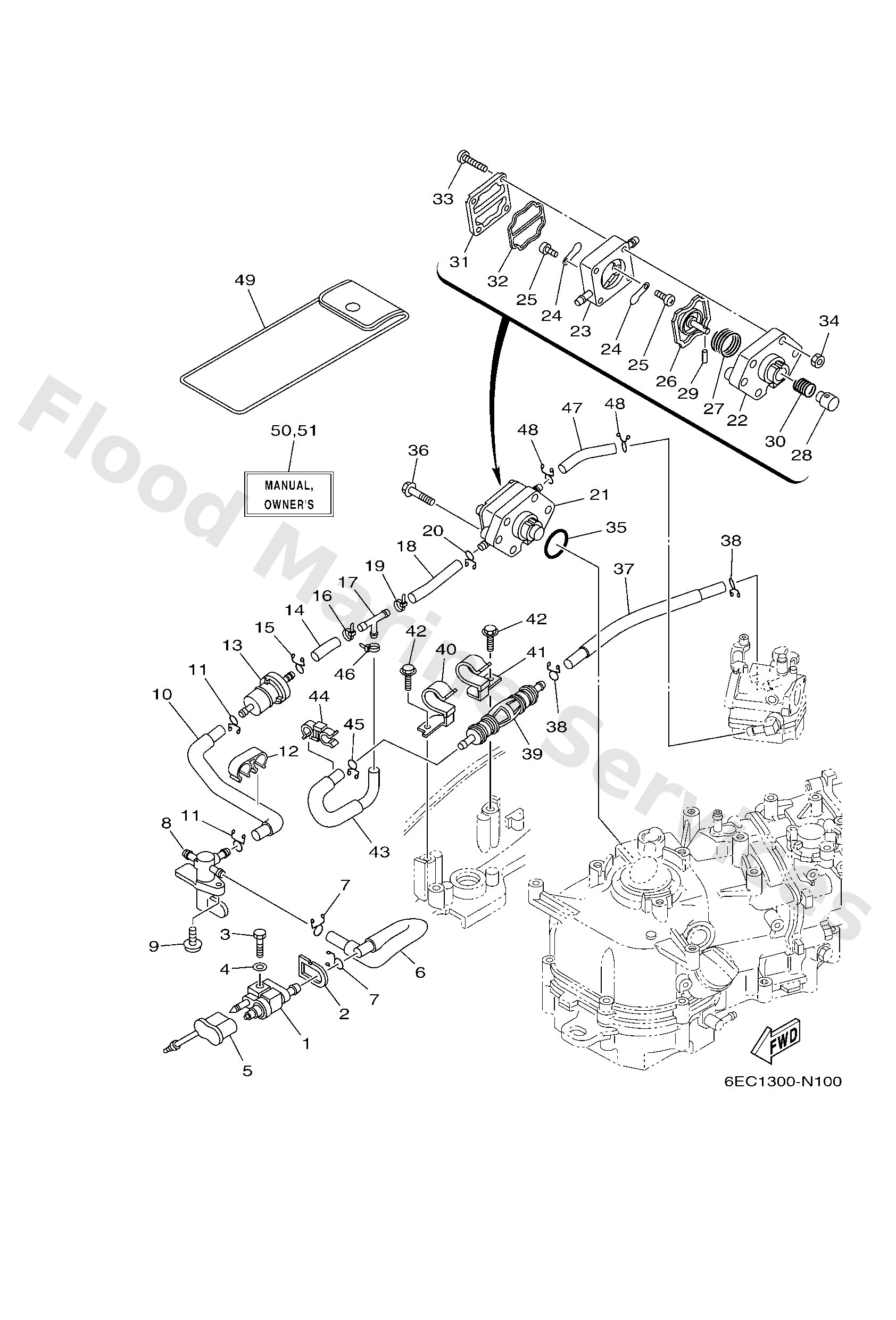

Parts List
Fuel pipe joint comp. 1
Diagram Reference: 1
Seal
Diagram Reference: 2
Bolt
Diagram Reference: 3
Washer, plain (646)
Diagram Reference: 4
Protector,1
Diagram Reference: 5
Pipe 2
Diagram Reference: 6
Clip(6k8)
Diagram Reference: 7
Fuel cock assembly 1
Diagram Reference: 8
Screw, with washer(6h3)
Diagram Reference: 9
Pipe 3
Diagram Reference: 10
Clamp
Diagram Reference: 12
Strainer 1
Diagram Reference: 13
Hose 3
Diagram Reference: 14
Clamp
Diagram Reference: 16
Pipe, joint
Diagram Reference: 17
Hose 4
Diagram Reference: 18
Fuel pump assembly
Diagram Reference: 21
Body 1
Diagram Reference: 22
Body 2
Diagram Reference: 23
Valve, check
Diagram Reference: 24
Screw, pan head
Diagram Reference: 25
Diaphragm
Diagram Reference: 26
Spring, diaphragm
Diagram Reference: 27
Plunger
Diagram Reference: 28
Pin
Diagram Reference: 29
Spring
Diagram Reference: 30
Body 3
Diagram Reference: 31
Diaphragm
Diagram Reference: 32
Screw
Diagram Reference: 33
Nut,hex
Diagram Reference: 34
O-ring
Diagram Reference: 35
Bolt, hexagon w/w deep recess
Diagram Reference: 36
Hose 2
Diagram Reference: 37
Primer pump assembly
Diagram Reference: 39
Clamp 1
Diagram Reference: 40
Clamp 2
Diagram Reference: 41
Bolt
Diagram Reference: 42
Hose 1
Diagram Reference: 43
Clamp
Diagram Reference: 44
Pipe, fuel 1
Diagram Reference: 47
Tool kit
Diagram Reference: 49
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 50
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 50
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 50
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 50
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 50
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 50
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 51
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 51
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 51
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 51
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 51
O/m f6cmhs/f4bmhl/f5amhs '15
Diagram Reference: 51
