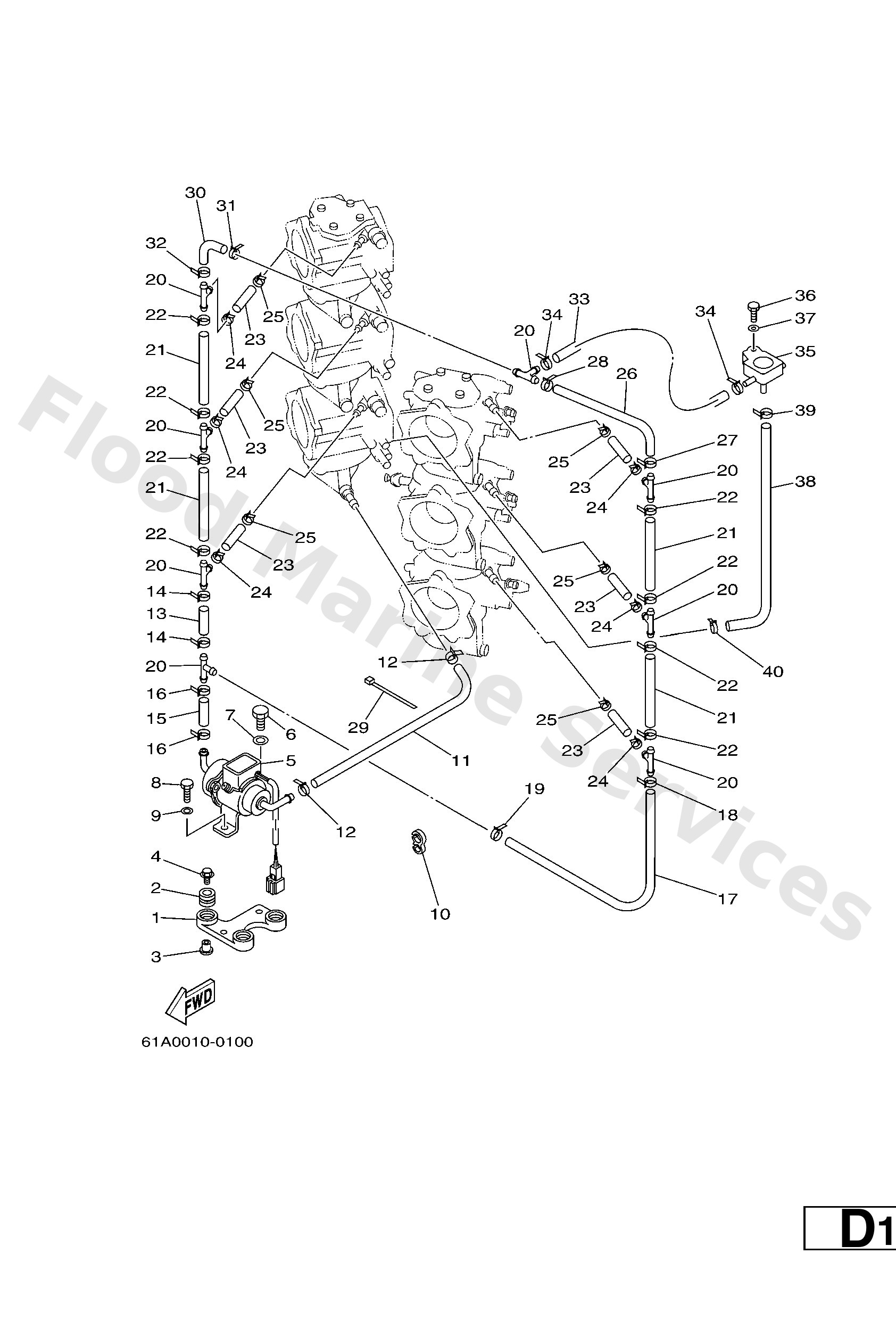

Diagram: FUEL 2

Diagram

Parts List

61A244910094
Bracket, Fuel Pump
Diagram Reference: 1
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 2
Get Part
6244254200
Collar
Diagram Reference: 3
Get Part
9011906M65
Bolt, with washer
Diagram Reference: 4
Get Part
61A1391001
Fuel pump assembly
Diagram Reference: 5
Get Part
9709508014
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 7
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 8
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 9
Get Part
9046413M34
Clamp(6r3)
Diagram Reference: 10
Get Part
6A42431500
Pipe 5
Diagram Reference: 11
Get Part
9046511M10
Clamp
Diagram Reference: 12
Get Part
9044510M31
Hose (l45)
Diagram Reference: 13
Get Part
9044510M14
Hose (l400)
Diagram Reference: 15
Get Part
9044510M40
Hose (l400)
Diagram Reference: 17
Get Part
6882437800
Pipe, joint
Diagram Reference: 20
Get Part
9044510M53
Hose (l400)
Diagram Reference: 21
Get Part
61A2431600
Pipe 6
Diagram Reference: 23
Get Part
9046411M24
Clamp(6h1)
Diagram Reference: 29
Get Part
9044510M16
Hose (l400)
Diagram Reference: 30
Get Part
61A2431500
Pipe 5
Diagram Reference: 33
Get Part
61A2447001
Fuel Regulator.assembly
Diagram Reference: 35
Get Part
9709506035
Bolt(j52)
Diagram Reference: 36
Get Part
9044510M92
Hose (L450)
Diagram Reference: 38
Get Part
