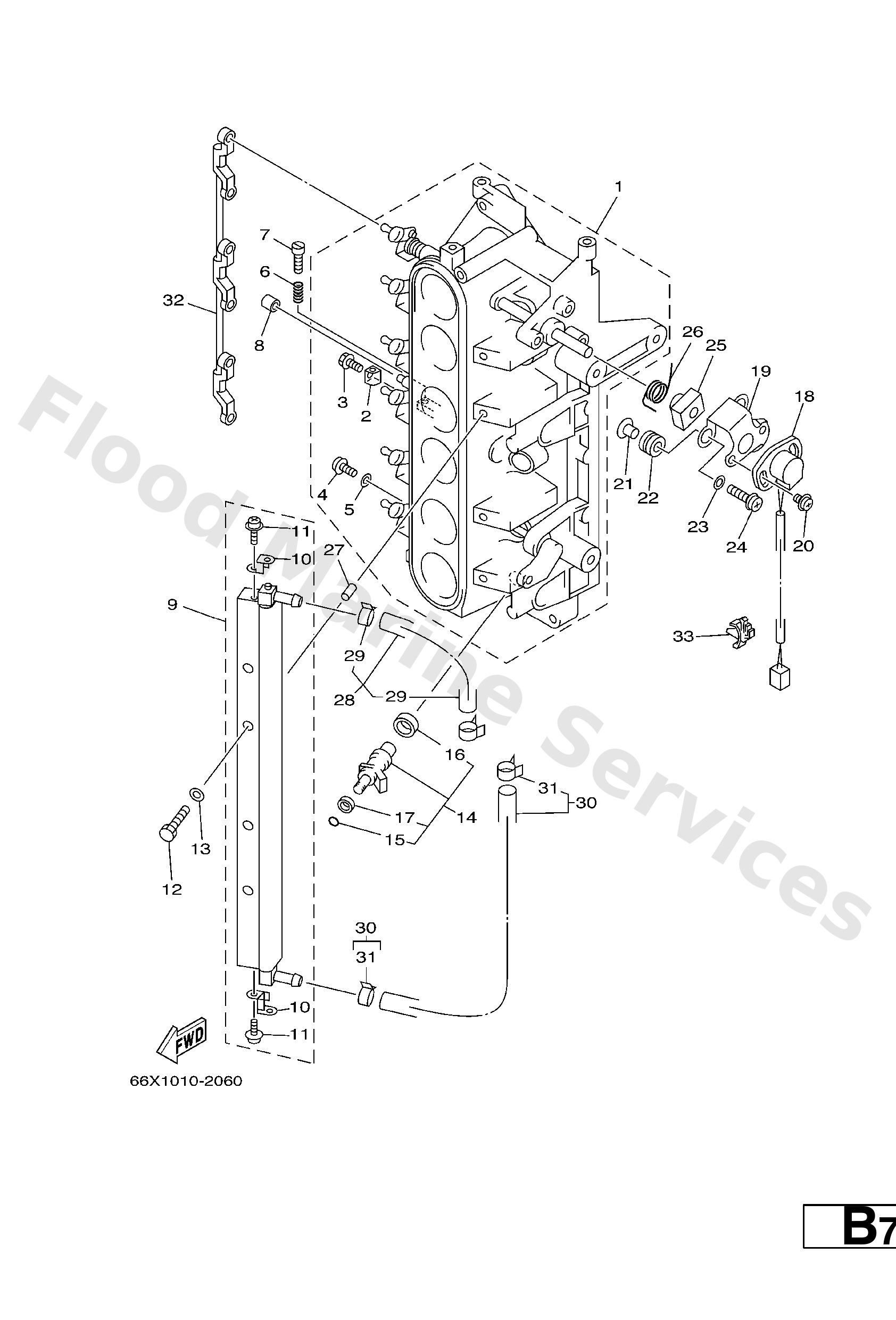

Diagram: FUEL INJECTION NOZZLE
Parts List
Body, throttle 1
Diagram Reference: 1
Plate
Diagram Reference: 2
Screw
Diagram Reference: 3
Screw
Diagram Reference: 4
Washer, plate(65j)
Diagram Reference: 5
Spring, air adjusting
Diagram Reference: 6
Screw, stop
Diagram Reference: 7
Collar
Diagram Reference: 8
Pipe
Diagram Reference: 9
Holder
Diagram Reference: 10
Bolt 1
Diagram Reference: 12
Washer
Diagram Reference: 13
Injector assembly
Diagram Reference: 14
O-ring
Diagram Reference: 15
Gasket
Diagram Reference: 16
Rubber, injector
Diagram Reference: 17
Throttle sensor assembly
Diagram Reference: 18
Bracket
Diagram Reference: 19
Screw, with washer(6g7)
Diagram Reference: 20
Collar(6k7)
Diagram Reference: 21
Grommet(6k7)
Diagram Reference: 22
Washer
Diagram Reference: 23
Screw, with washer(61b)
Diagram Reference: 24
Lever
Diagram Reference: 25
Spring
Diagram Reference: 26
Insert
Diagram Reference: 27
Pipe, fuel 1
Diagram Reference: 28
Clip
Diagram Reference: 29
Pipe, fuel 2
Diagram Reference: 30
Rod, accel. lever
Diagram Reference: 32
Clamp (6h3)
Diagram Reference: 33
