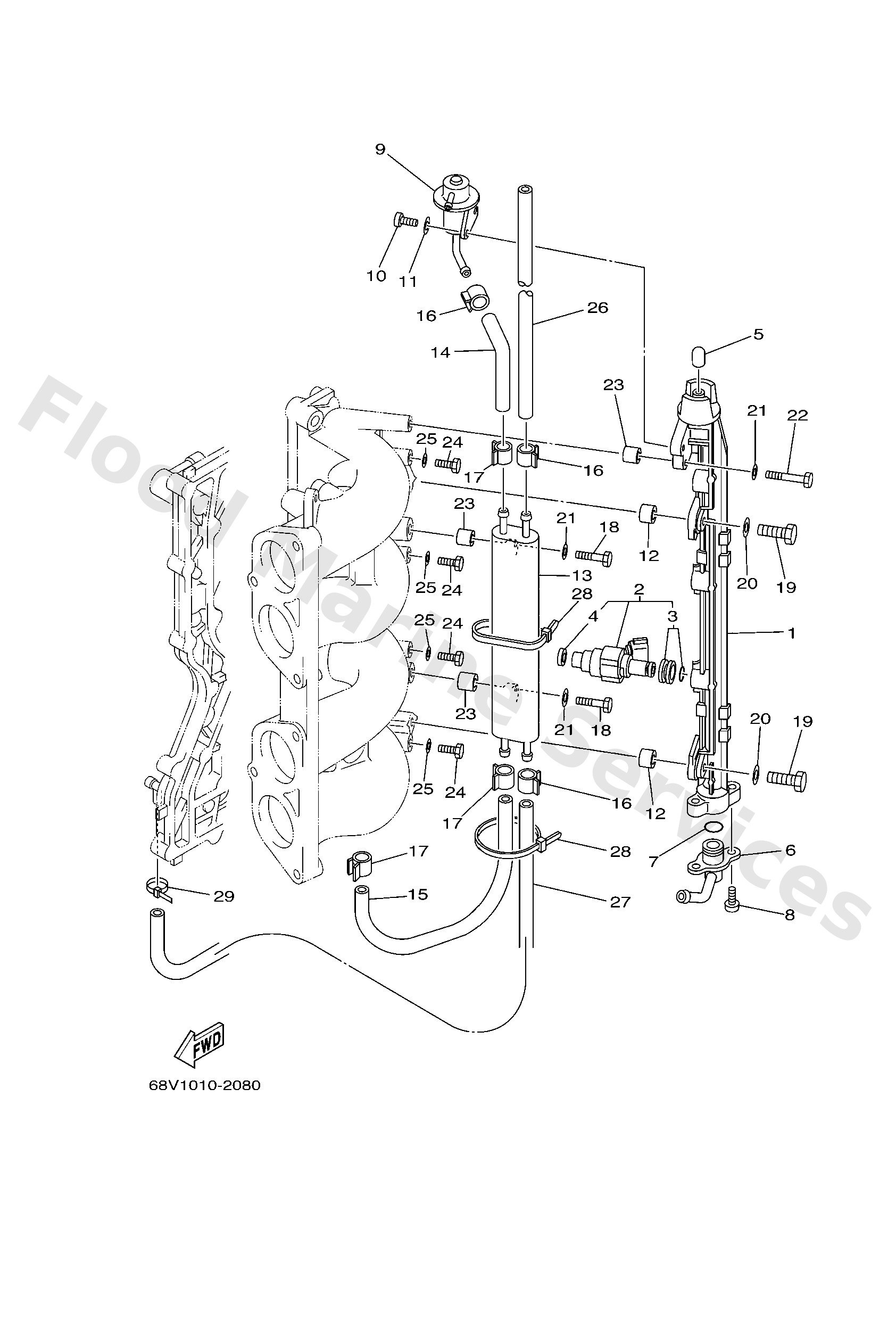

Diagram: FUEL INJECTION NOZZLE

Diagram

Parts List

68V1316000
Delivery pipe assembly 1
Diagram Reference: 1
Get Part
68V8A36000
Injector unit
Diagram Reference: 2
Get Part
68V1410B00
Packing kit
Diagram Reference: 3
Get Part
68V1376600
Rubber, injector
Diagram Reference: 4
Get Part
68V1422500
Cap
Diagram Reference: 5
Get Part
68V1343500
Nipple
Diagram Reference: 6
Get Part
68V1439700
O-ring
Diagram Reference: 7
Get Part
68V8114700
Screw 3
Diagram Reference: 8
Get Part
68V1390601
Regulator, pressure (with o-ri
Diagram Reference: 9
Get Part
68V1456500
Screw
Diagram Reference: 10
Get Part
68V1435600
Washer, spring
Diagram Reference: 11
Get Part
68V1426400
Collar
Diagram Reference: 12
Get Part
69J2184102
Cooler
Diagram Reference: 13
Get Part
68V1397100
Pipe, Fuel 1
Diagram Reference: 14
Get Part
68V1397200
Pipe, fuel 2
Diagram Reference: 15
Get Part
68V2451900
Clip
Diagram Reference: 16
Get Part
68V2411M00
Clip
Diagram Reference: 17
Get Part
68V1477700
Bolt
Diagram Reference: 18
Get Part
68V1442800
Bolt
Diagram Reference: 19
Get Part
68V1447500
Washer
Diagram Reference: 20
Get Part
68V1435700
Washer, plain
Diagram Reference: 21
Get Part
68V1444600
Bolt
Diagram Reference: 22
Get Part
68V1426500
Collar
Diagram Reference: 23
Get Part
9709506010
Bolt
Diagram Reference: 24
Get Part
9043006014
Gasket 256113960000
Diagram Reference: 25
Get Part
68V2247A10
Hose 1
Diagram Reference: 26
Get Part
68V2247B00
Hose 2
Diagram Reference: 27
Get Part
68V2481H00
Clamp
Diagram Reference: 28
Get Part
9046511M10
Clamp
Diagram Reference: 29
Get Part
